14.2.3 Via USB
Requirements A USB device (e.g. USB flash drive) with the following properties:
 USB 2.0
 FAT or VFAT file system or as per ISO 9660
 Current consumption below 0.5 A (otherwise a separate power supply is required)
 USB cable, max. 6 m (for longer cables amplifiers must be used)
Connecting the
USB flash drive
8 Call the Programming and editing mode of operation and press the PGMMGT key.

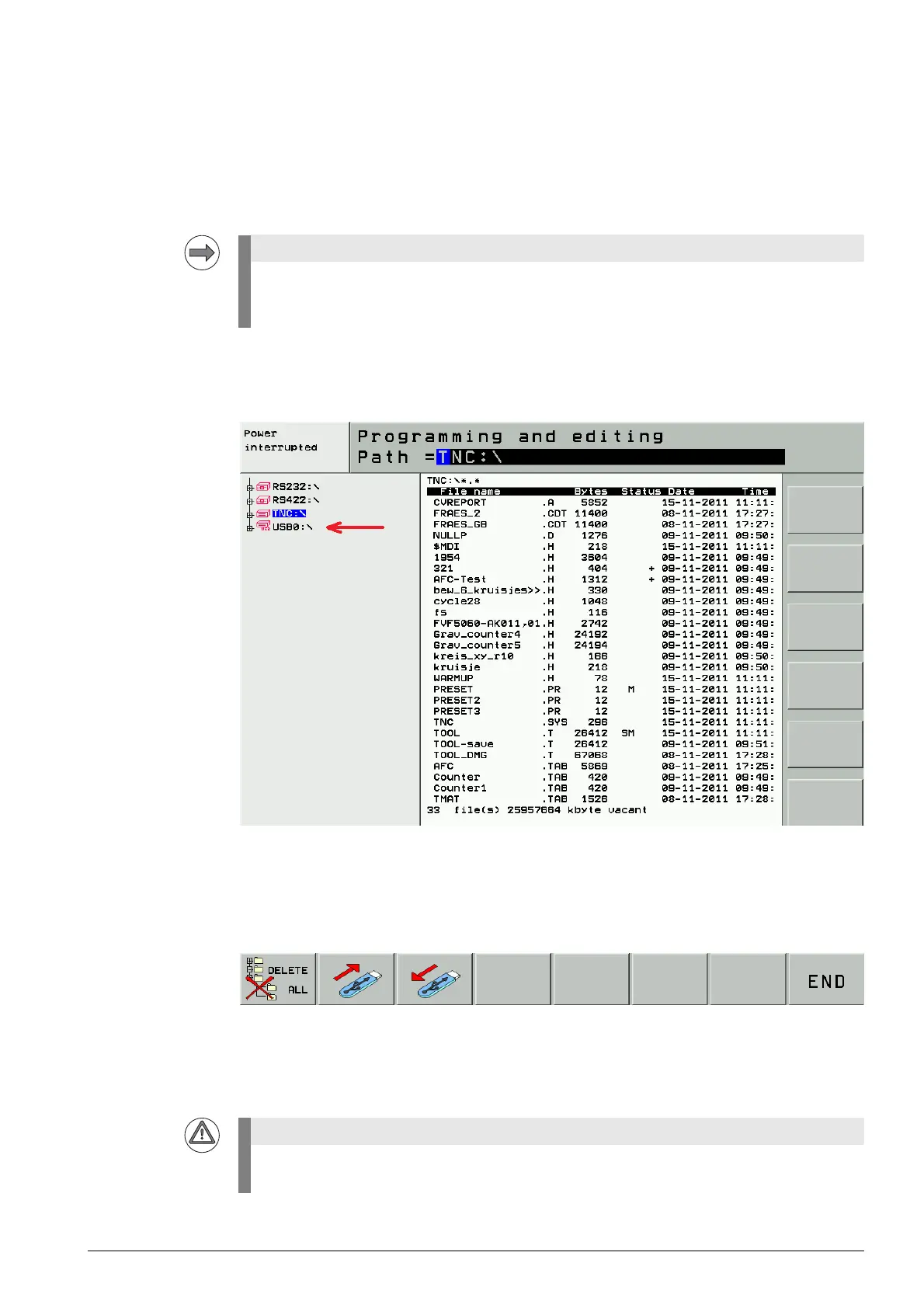

8 Connect the USB flash drive to the control or to the monitor. --> The USB device is added to the
directory tree:
Disconnecting the
USB flash drive
You are in the program management.
8 In the directory tree, place the cursor on the USB device.
8 Switch the soft-key row until you see the MORE FUNCTIONS soft key.
8 Press this soft key. --> Now you see the soft keys with the "USB flash drive" symbols:
8 Press the soft key with the symbol "Remove USB flash drive". --> The USB device is deleted from
the directory tree.
8 Remove the USB flash drive.
Note
iTNC 530 HSCI identifies standard USB flash drives.
HEIDENHAIN cannot guarantee that all USB flash drives available on the market work with the
iTNC 530 HSCI.
Attention
If you remove the USB flash drive without having pressed the "Remove USB flash drive" soft key
before, you may loose data on the drive!
