12.1.7 For error diagnosis
In the left window of the HSCI bus diagnosis you can see the arrangement, the names and the status
of the HSCI components and terminals.
8 Observe the status of the HSCI components and terminals.
Here, you already can detect and locate errors in the HSCI system.
HSCI errors
during operation
Example 1:
HSCI connection X502 interrupted at PLB 6204 system module
The following error messages may be displayed:

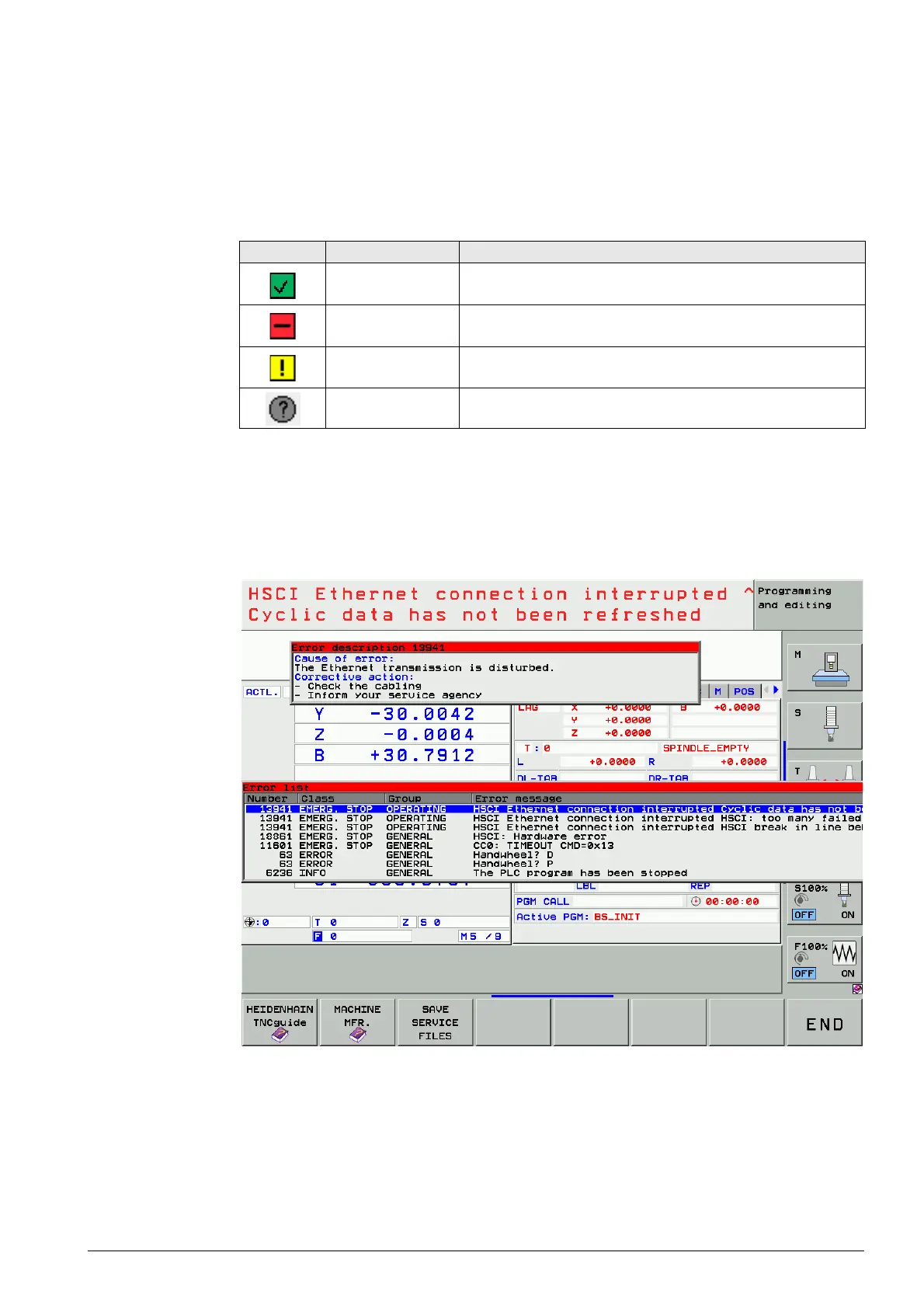

8 Call the HSCI bus diagnosis.
Display Color Status
Green OK
Red Error (further information in the text window)
Yellow Warning (further information in the text window)
Gray Undefined condition (further information in the text window)
