12.1.4 Identification of the PLC operands

By means of the HSCI bus diagnosis you can obtain important information on PLC operands, such as

the absolute address, the slot and the terminal name:

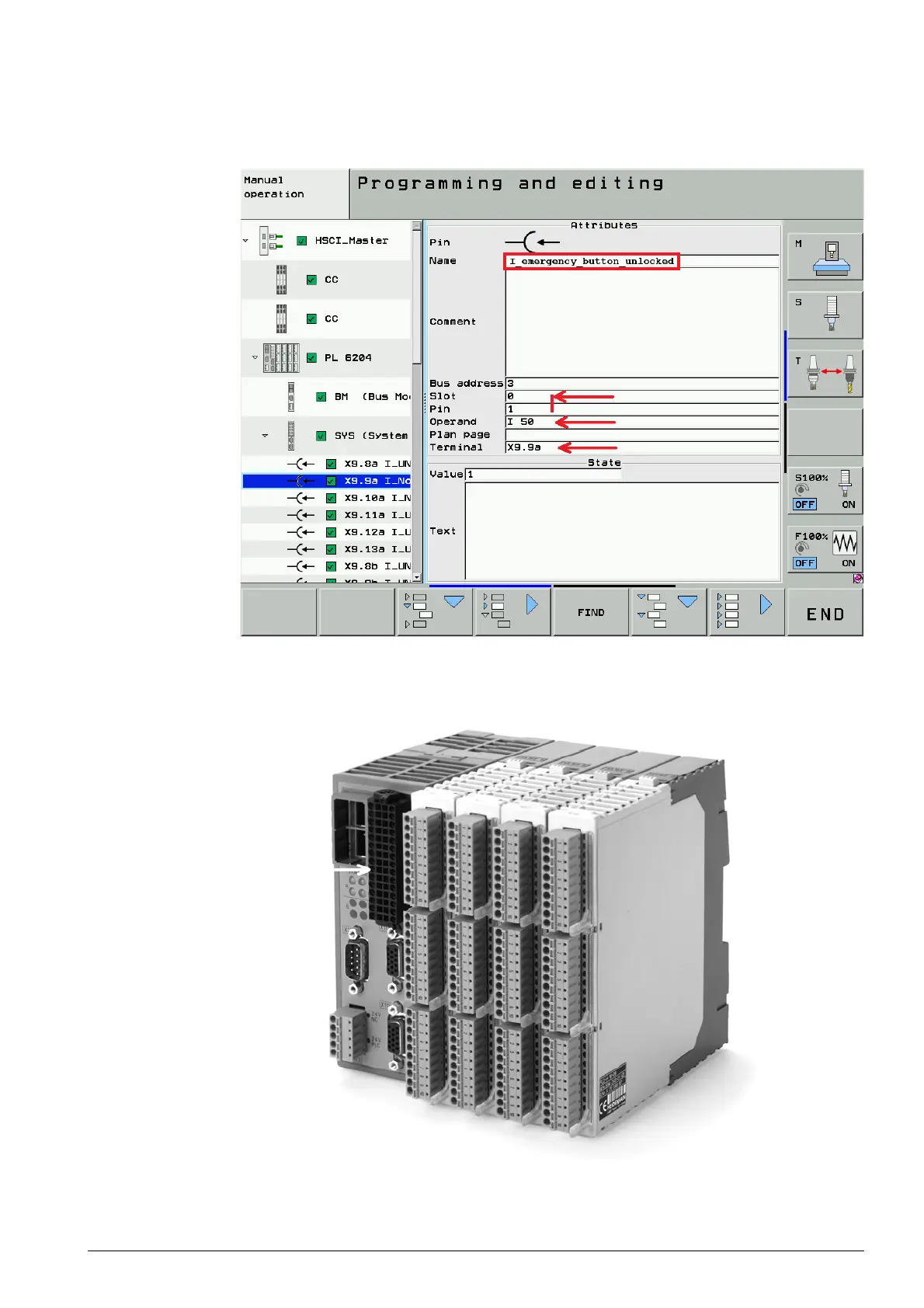

Figure: Display of the attributes of I_emergency_button_unlocked in HSCI bus diagnosis

Figure: PLB 6204 with four PLD-H 16-08-00 inserted, terminal X9.9a on system module
