11.4.5 The I/O-FORCE LIST
Independently of the currently running PLC program and the status of the hardware, the PLC inputs
and outputs can be set or reset via the I/O-FORCE LIST.
Activation You are on the PLC main page.
8 Switch to the next soft-key row.
8 Soft key for calling the I/O-FORCE LIST function.
Selecting inputs
and outputs for
the I/O FORCE LIST
8 Press the INSERT LINE soft key.
8 Select the inputs and outputs by entering their symbolic or absolute addresses.
8 Enter the value 0 or 1 which is to be "forced".
8 If required, add a comment.
The I/O-FORCE LIST can overrule safety-relevant monitoring operations in the PLC
program!
This could lead to damage to property or persons.
Ensure that hanging axes are supported.
Consult the machine manufacturer!

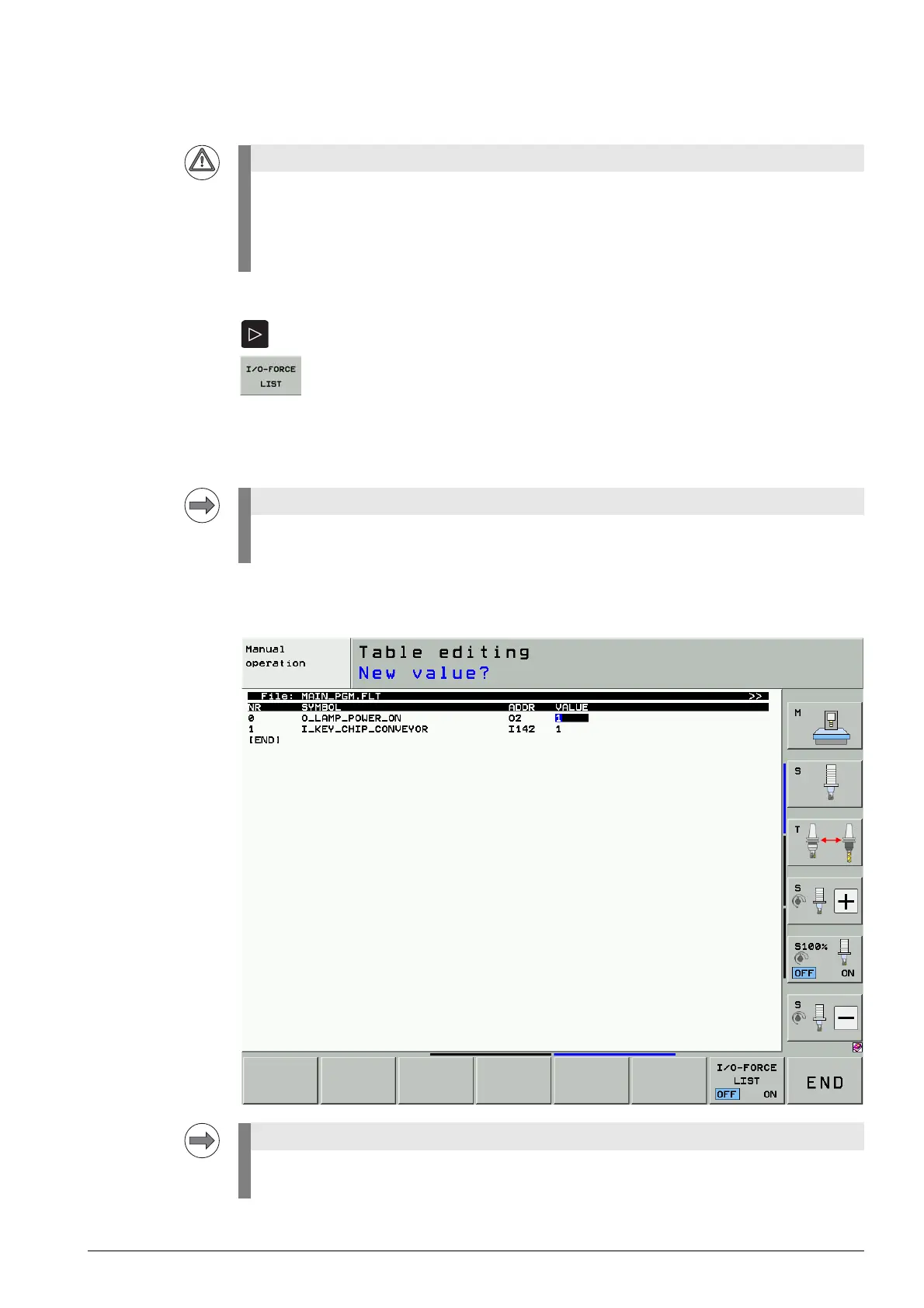

The TABLE, the WATCH LIST or the TRACE IN-CODE function can be called before and inputs and
outputs added to the I/O-FORCE LIST via the soft key ADD TO I/O-FORCE LIST.
If the cursor is in the SYMBOL or ADDR column, you can sort the list alphanumerically by pressing the
ORDER soft key.
