D2 Drive User Guide v1.8 6. Drive Tuning
HIWIN Mikrosystem Corp. 149

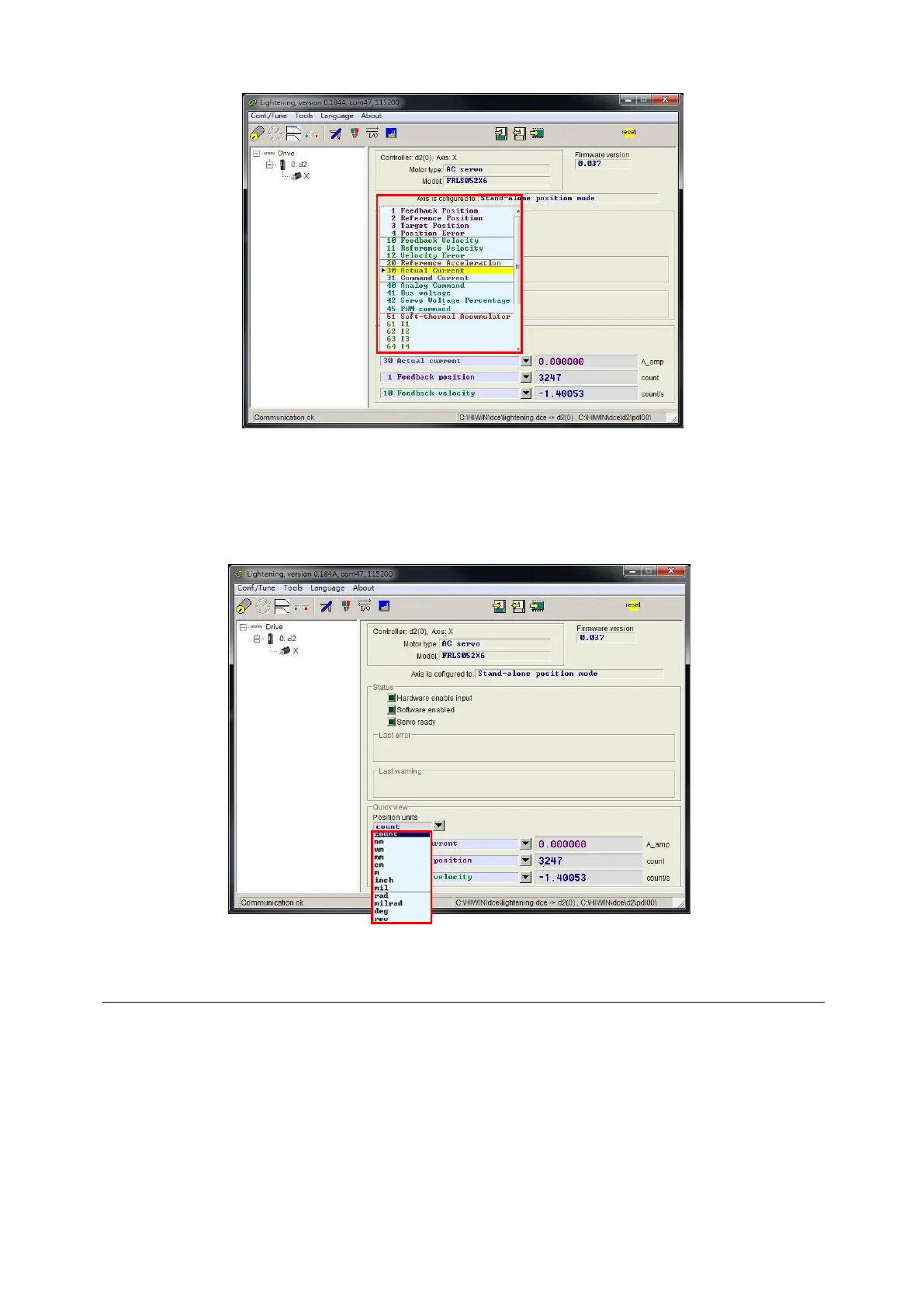

Fig. 6-2 Physical quantity menu in “Quick view”
Unit setting (Position Units)
For each display of physical quantity, if it is related with the distance, users can select the
preferred unit to display (or set) the relevant physical quantity (position, speed, etc.), as shown
in Fig. 6-3.
Fig. 6-3 Unit setting menu
6.1.3. Software shortcuts
There are two function shortcuts in HMI for D2 drive: F6 and F12. They are only available if
Lightening HMI is active for Windows operation system.
-
F6:
Move the Lightening main window to the top level.
-
F12:
This function is an emergency stop action. For example, clicking
F12
during the
movement will perform the emergency stop action (refer to Section 3.4). The motor
will be disabled after the stop.
