D2 Drive User Guide v1.8 7. LCD Operation
HIWIN Mikrosystem Corp. 227
(5) Smooth factor setting
D2 drive provides the function of “Smooth factor”, referring to Section 3.4.

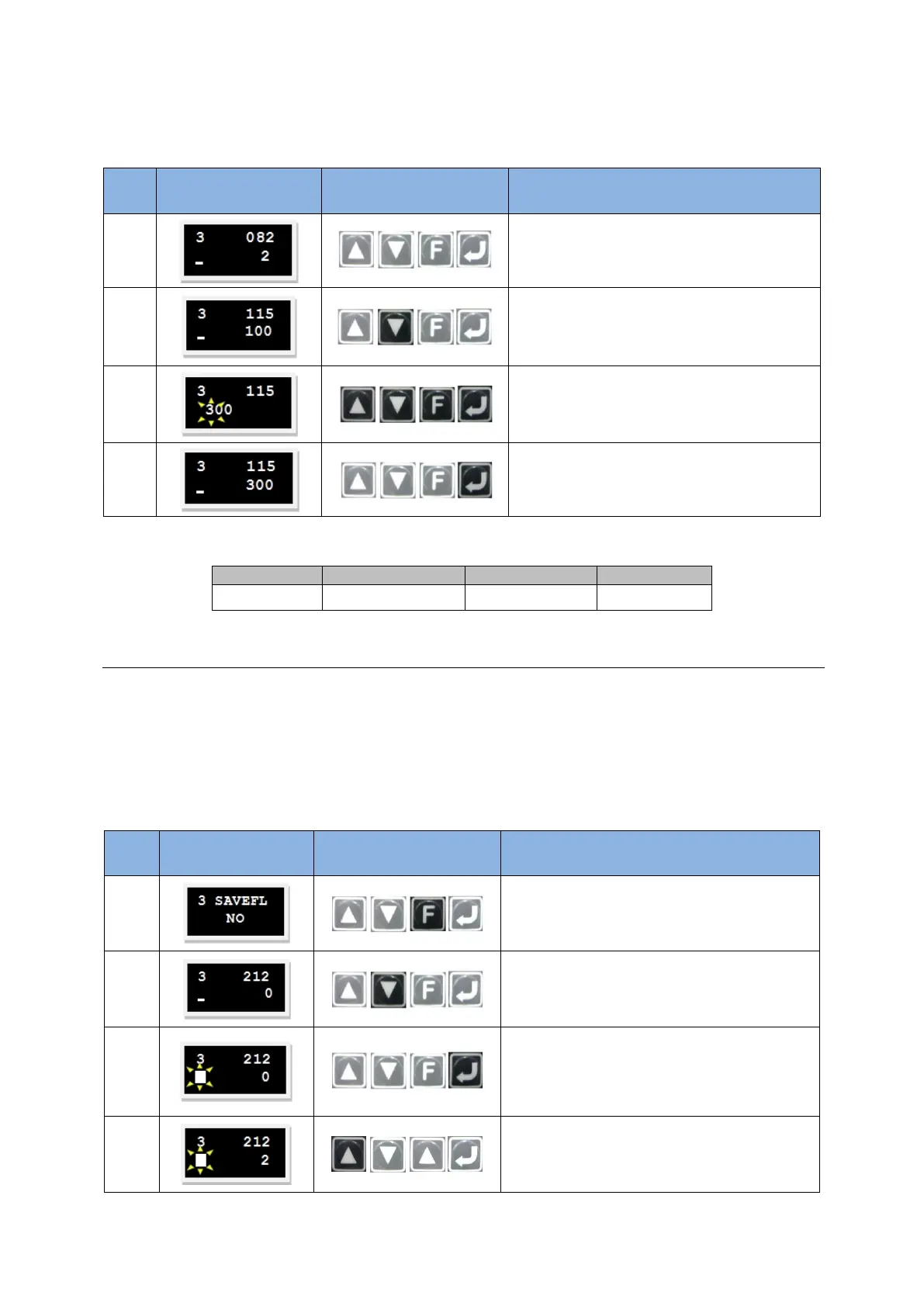

Use following steps to set the smooth factor via LCD.
Step
LCD display after
operation
Used keys
Operation
1
Continue the last setting screen of
electronic gear ratio.
2
Press and hold the
Down key
to go to LCD
No. 115 page (refer to note 5), i.e. the
setting page of smooth factor.
3
Press the
Enter key
first and set this
parameter to the required value.
4
Press the
Enter key
to complete the
smooth factor setting.
Note 5. The smooth factor can be set via the following parameter.
LCD No.
Parameter
Definition
Initial value
115
X_new_sm_fac
Smooth factor
100
7.7.2. Velocity mode
D2 drive can transfer the voltage command and PWM command to the velocity command,
referring to Section 3.1.2.
The velocity mode configuration includes: the mode selection and input command format
setting. After all parameters are set, refer to Section 7.5.1 to save parameters to flash.
.
(1) Mode selection
Use following steps to select the velocity mode via LCD.
Step
LCD display after
operation
Used keys
Operation
1
Press the
F key
to change the LCD screen
to the parameter change page.
2
Press and hold the
Down key
to go to LCD
No. 212 page, i.e. the setting page for
operation mode.
3
Press the
Enter key
to enter the edit mode.
4
Press the
Up ke
y twice to set this parameter
to 2, i.e. the velocity mode.
