Hiwin D2 User Manual

D2 Drive User Guide v1.8 2. Specifications
HIWIN Mikrosystem Corp. 14
2.3. Drive dimensions
Dimensions and mounting holes of D2-series drives, D2-series drives with the EtherCAT
(CoE/ mega-ulink) module, and D2-series drives with the extension I/O module are shown in
the following figures. The dimension unit is in mm, and the diameter of mounting hole is 4 mm.

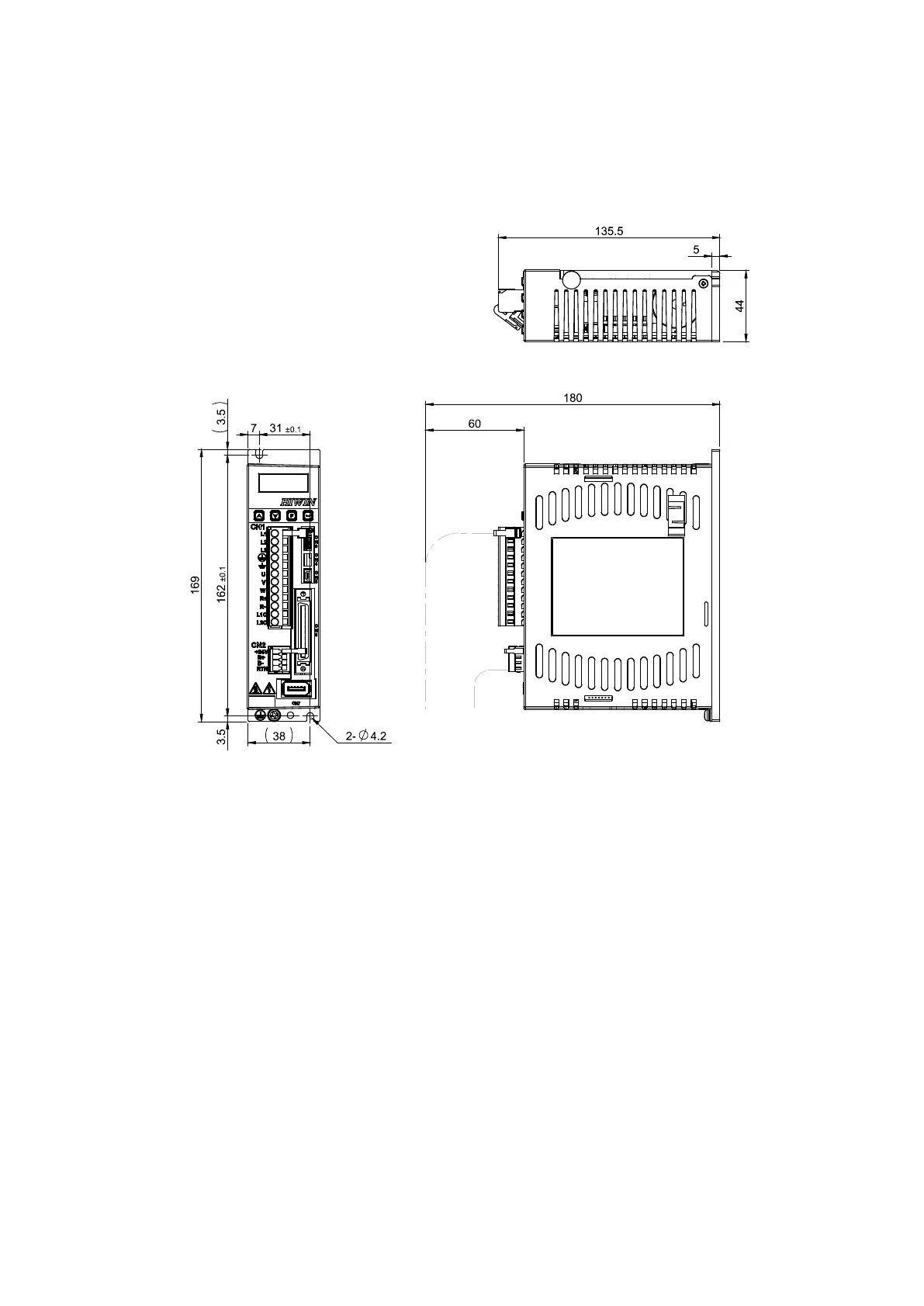

Fig. 2-3 Dimensions of frame A model
D2-DNN46A

Hiwin D2 Specifications

General

Brand	Hiwin
Model	D2
Category	DC Drives
Language	English
