D2 Drive User Guide v1.8 4. Wiring
HIWIN Mikrosystem Corp. 43
4.1.2. CN1 power
The pin assignment of CN1 for frame A-C models is different with that for the frame D model.
Check the pin assignment for each model before use. Descriptions of CN1 power wiring
include: single/three-phase power input, motor power output (frame A-C), regenerative
resistor wiring, single-phase control power input, and DC reactor wiring (frame D).
4.1.2.1. Power wiring
Before connecting the main circuit of drive, ensure that the drive is properly grounded. Frame
D model is only allowed connecting three-phase 200 - 240 Vac.
(1) Frame A-C
Connector model: Wago 721-112/026-000 (female).

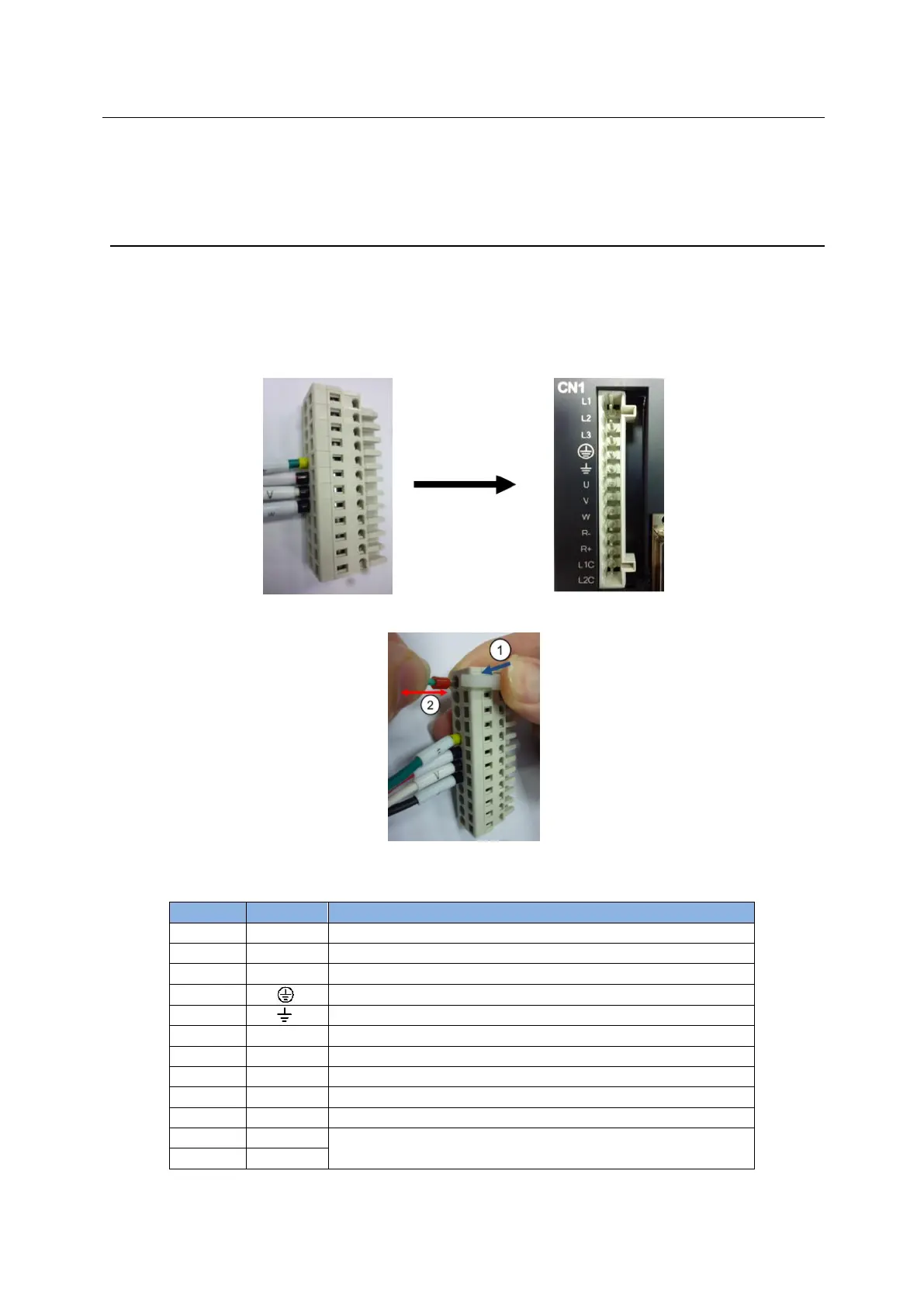

Fig. 4-4 CN1 connector type for frame A-C models
Fig. 4-5 Installation and removal methods
Table 4-2
Signal
Function
1
L1
AC main power, 220 Vac (50/60 Hz) single/three phase
2
L2
AC main power, 220 Vac (50/60 Hz) single/three phase
3
L3
AC main power, 220 Vac (50/60 Hz) three phase
4
Ground input of AC main power
5
Motor ground input
6
U
Motor U-phase input
7
V
Motor V-phase input
8
W
Motor W-phase input
9
REG-
Negative terminal of regenerative resistor
10
REG+
Positive terminal of regenerative resistor
11
L1C
Control power, 220 Vac (50/60 Hz) single phase
12
L2C
