D2 Drive User Guide v1.8 7. LCD Operation
HIWIN Mikrosystem Corp. 231
7.7.4. Stand-alone mode
In the stand-alone mode, the drive will execute the internal path planning to drive the motor,
referring to Section 3.1.4.
The stand-alone mode configuration includes the mode selection. After all parameters are set,
refer to Section 7.5.1 to save parameters to flash.
.
Mode selection

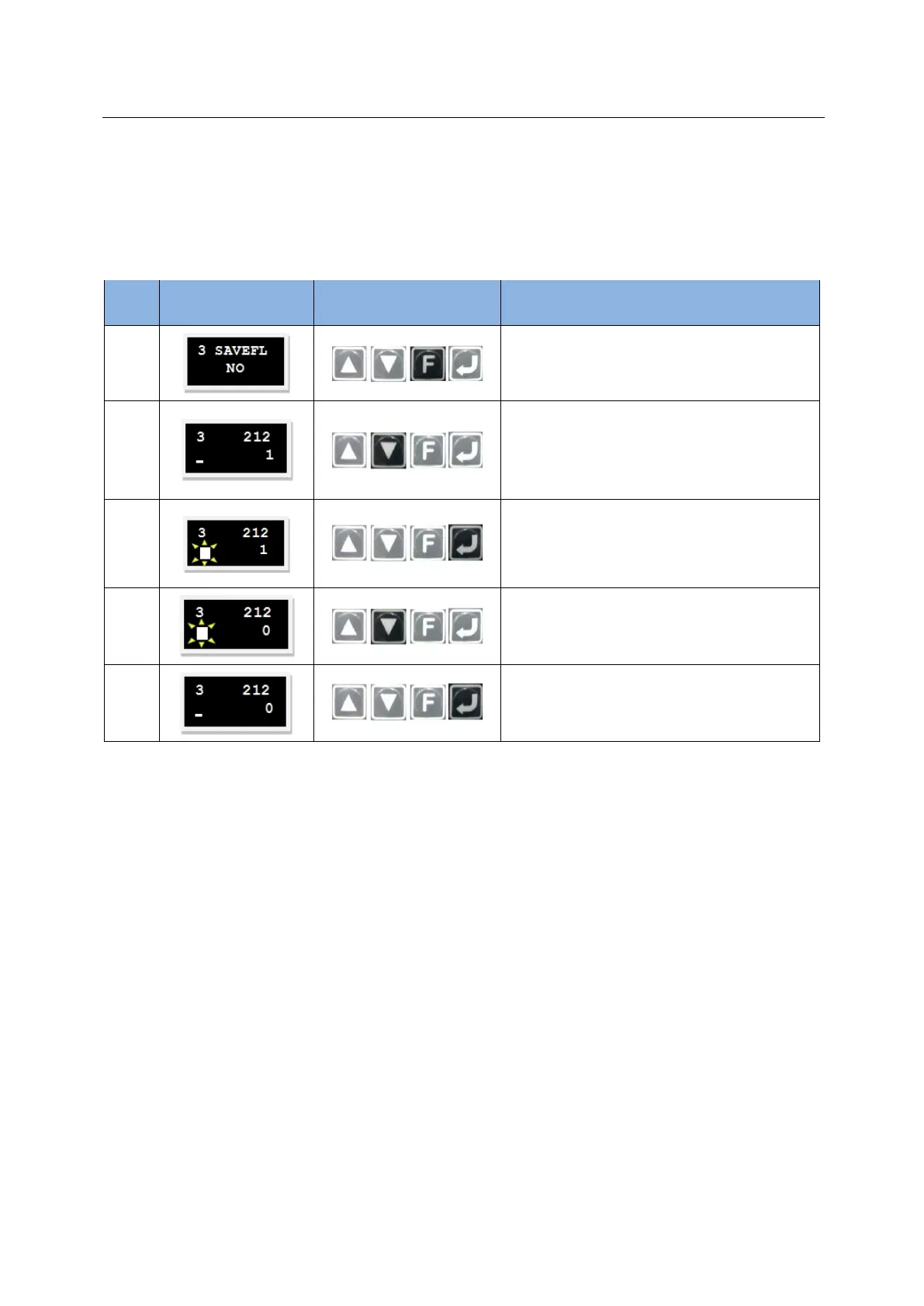

Use following steps to select the stand-alone mode via LCD.
Step
LCD display after
operation
Used keys
Operation
1
Press the
F key
to change the LCD screen
to the parameter change page.
2
Press and hold the
Down key
to go to LCD
No. 212 page, i.e. the setting page of
operation mode. (Note. This example is to
change it from the position mode to the
stand-alone mode.)
3
Press the
Enter key
to enter the edit mode.
4
Press the
Down key
once to set this
parameter to 1, i.e. the stand-alone mode.
5
Press the
Enter key
to complete the setting.
