D2 Drive User Guide v1.8 4. Wiring
HIWIN Mikrosystem Corp. 58
4.3. Main power wiring
Caution
● Wiring and the related inspection must be done by the professional technician.
● Turn off the power before the wiring or inspection to avoid electric shock and other
dangers.
● After the power is turned off, do not touch power terminals for a short time period (at
least 5 minutes), since the power in the drive remains high.
● Perform wiring correctly and reliably; otherwise it may cause uncontrolled motor
operation, personnel injury, machine malfunction, or other unexpected accidents.
● Do not make any modification to the drive.

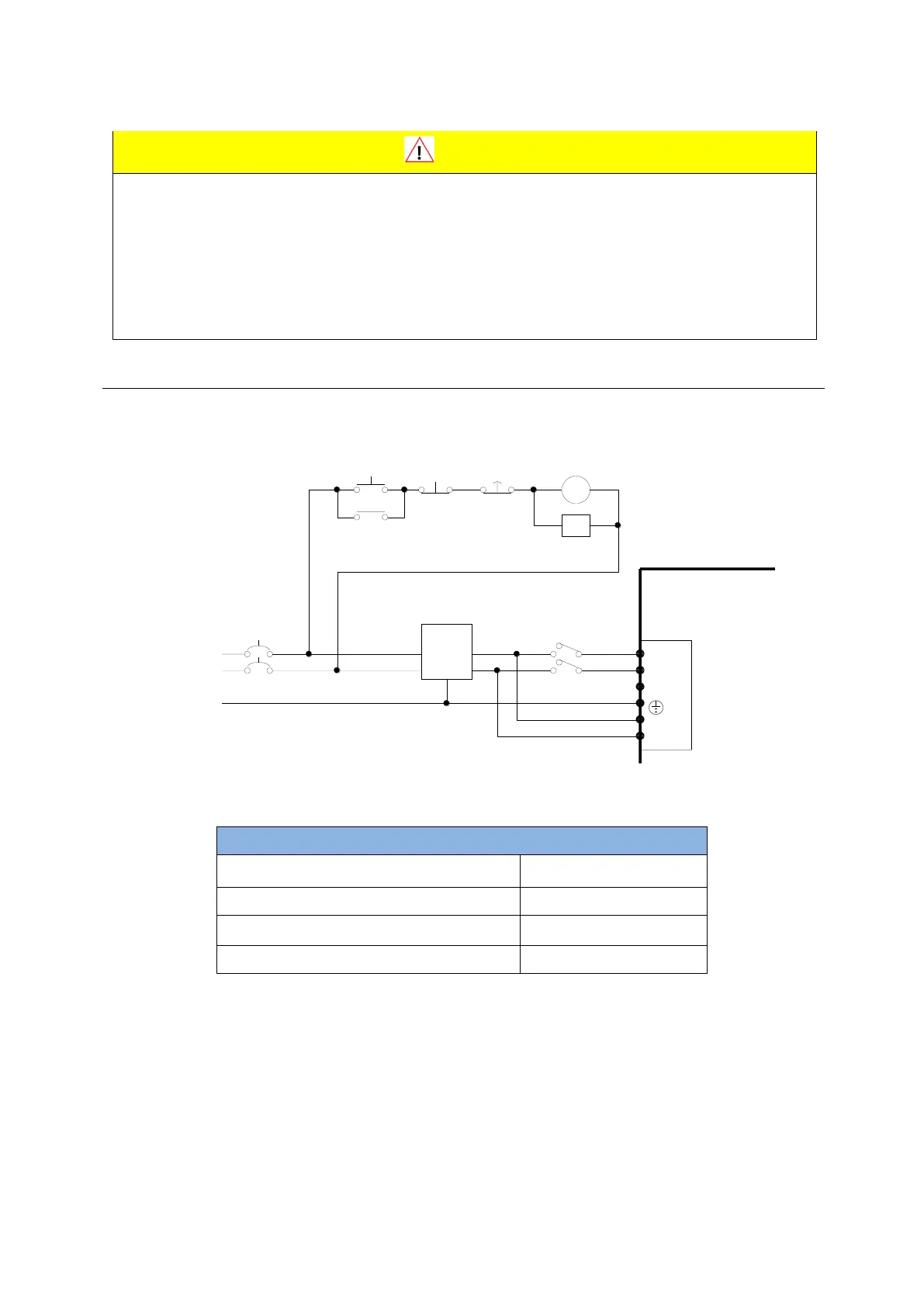

4.3.1. AC power wiring (single-phase)
It is recommended to use the single-phase filter model of FN2090-6-06 for 50 W - 400 W
motors, and FN2090-10-06 for 750 W - 1 KW motors.
Fig. 4-22
Table 4-24
FN2090-6-06 filter
Maximum continuous operation voltage
250 Vac, 50/60 Hz
Operation frequency
DC to 400 Hz
Rated current
1 to 30 A @40℃
Surge pulse protection
2 KV, IEC 61000-4-5
mega-fabs
D2 Series drive
CN1
L1
L2
L3
L1C
L2C
NFB
Filter
KM
KM
ON
OFF
Emergency
Stop
KM
SK
1-phase
100~240VAC
50/60Hz
Earth
