Cedex Bio analyzer 13 ISE description
Hardware
Hardware
Panels
The ISE cover has two joints. The front cover provides access to the parts you may
need to handle during daily operation. Opening the back cover as well provides
access to the peristaltic pump and its tubing.
Left side panel Provides access to:
o ISE power supply
o ISE connectors
Do not remove; this panel should be removed by your service representative only.
ISE cover Provides access to:
o Electrodes
o ISE unit tubing
o ISE fluid bottles
Do not open this cover when the system is in Operating status.
Left service flap Provides access to:
o ISE tower
Remove this flap as instructed during maintenance actions, or shut down the system
and switch off the analyzer before you remove it.

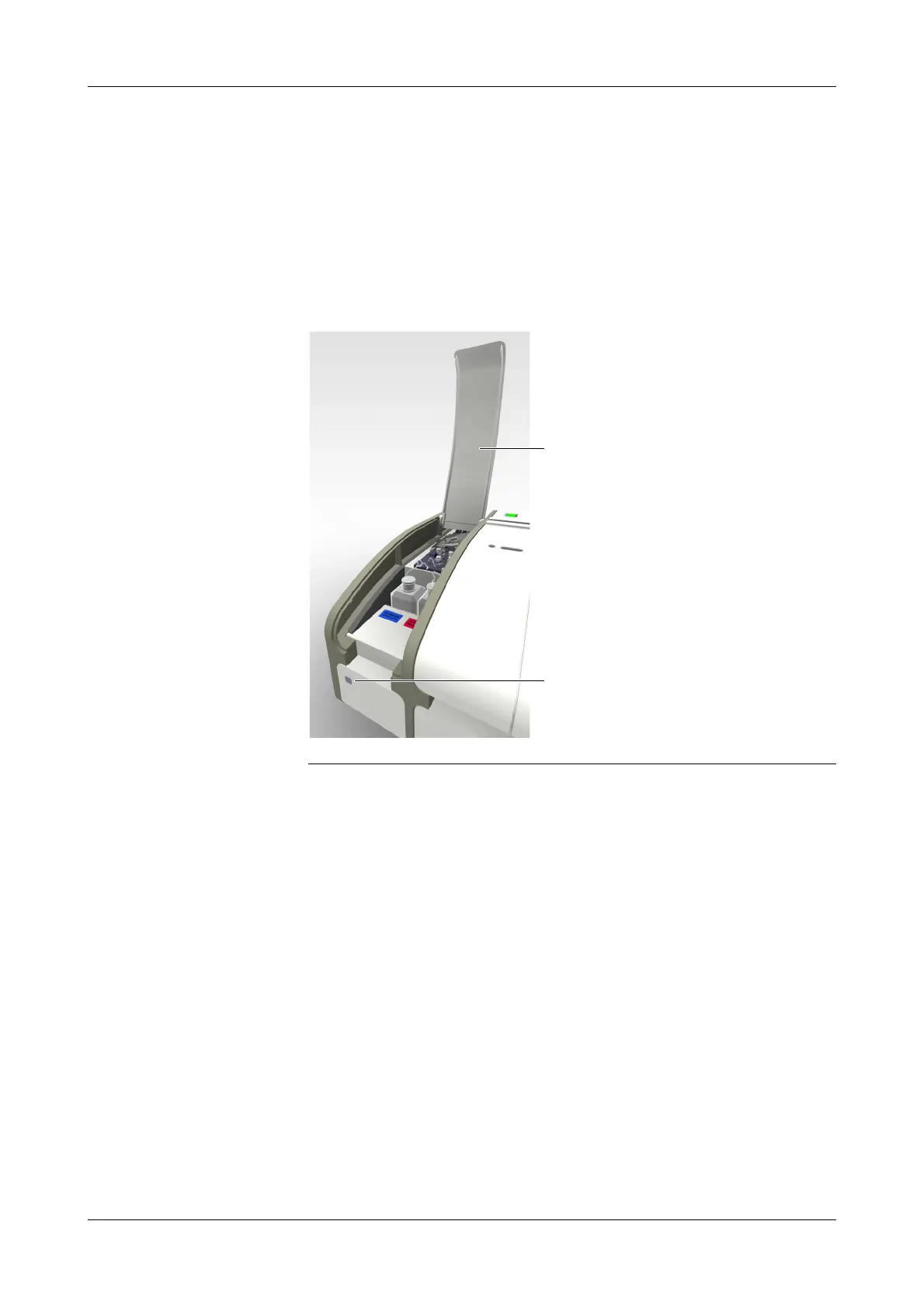

A ISE cover B ISE LED
Figure F-2 ISE cover
A
B
