Roche Diagnostics
A-50 Operator’s Manual · Version 3.4
3Hardware Cedex Bio analyzer
Hardware overview
Fluid containers
The following table shows which container is used for which fluid:
Waste containers
Internal waste tank The internal waste tank collects the waste from the rinse station and the ISE unit, if
this is used. It also collects the condensation from the cooling assembly in the rotor.
The internal waste tank is connected by tubing to:
o External waste container
o Rinse station
o Reagent cooler (condensation)
o ISE unit
Fluid Container(s) Position
Sample Tube Sample area
Control Tube Sample area
Calibrator Tube Sample area
Diluent Reagent bottle Reagent disk
System cleaner External cleaner bottle External fluid rack
Cleaner Reagent bottle Reagent disk
Reagent Reagent bottle Reagent disk
Water Bottle External fluid rack
Waste Bottle External fluid rack
Table A-6 Fluid containers, what they are used for and where
The term tube includes all kinds of tubes, as long as their dimensions lay within prescribed
limits. It also includes secondary tubes (cups). See Tubes on page A-53.

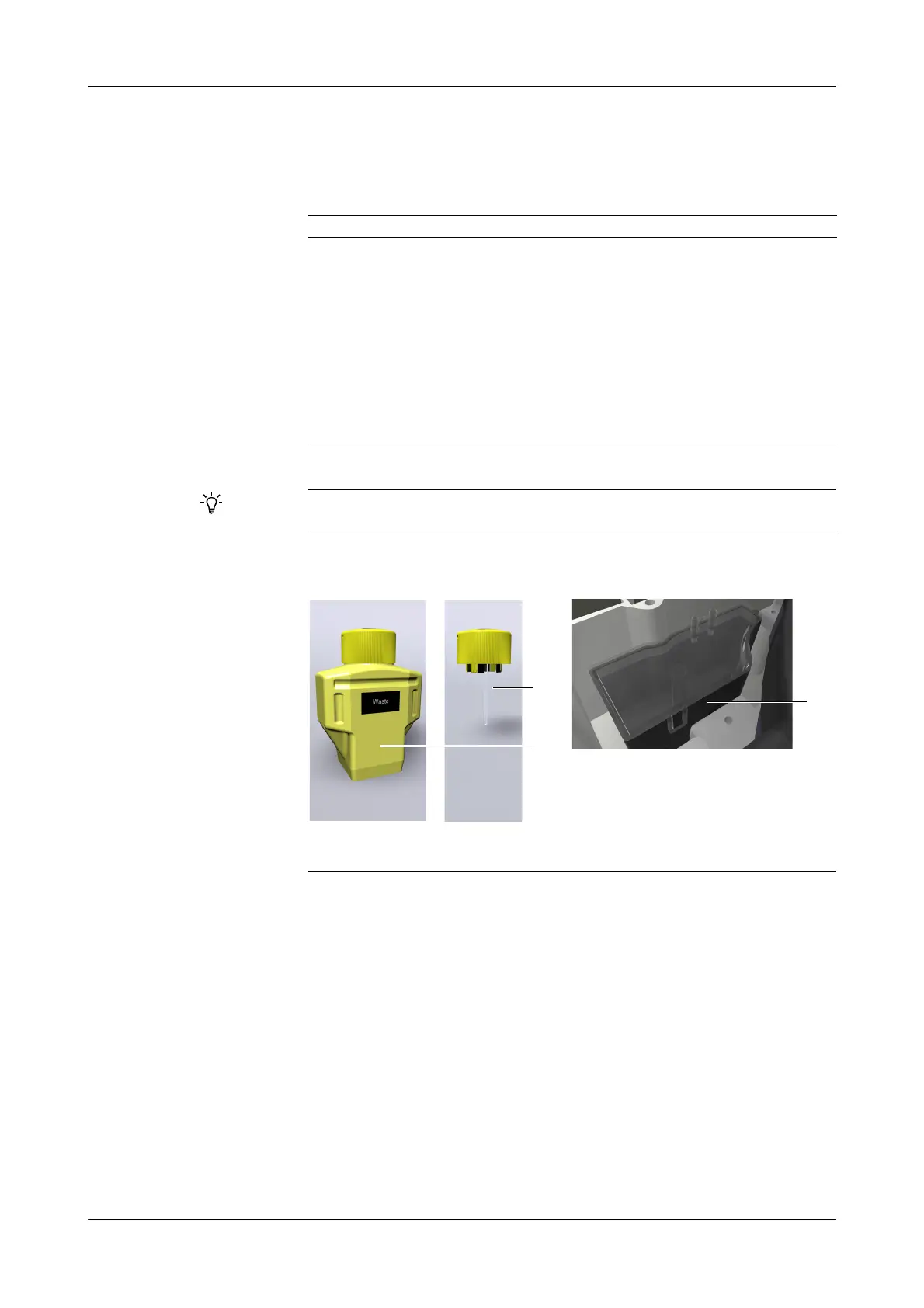

A Tubing adapter
B External waste container
C Internal waste tank
Figure A-18 Waste container
