Roche Diagnostics
A-64 Operator’s Manual · Version 3.4
3Hardware Cedex Bio analyzer
Hardware overview
Fuses
The mains fuses are situated at the rear of the analyzer, above the power connector;
the internal fuses are situated on the right side of the analyzer, at the top of the
connector panel.
e
See To change the mains fuses on page E-47.
See To change a low voltage fuse on page E-49.
Electrical shock by electronic equipment
Do not attempt to work in any electronic compartment. Installation, service, and repair
must only be performed by authorized and qualified personnel.

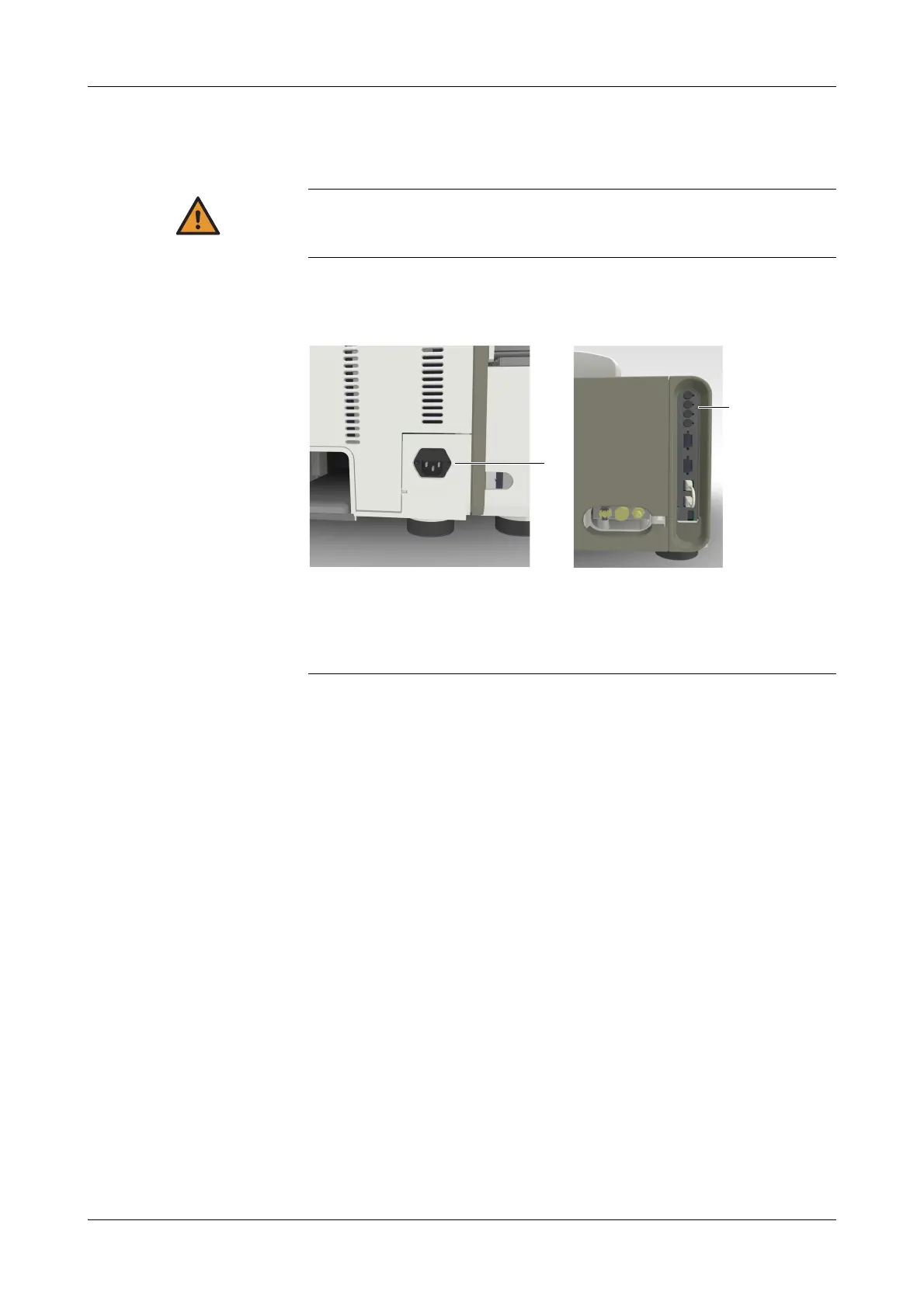

A Power connector with T6.3 A H 250 V fuse B Low voltage fuses (T3.15 A)
F1: Heating system
F2: Motors
F3: Cooling assembly
F4: Photometer unit and LEDs
Figure A-34 Fuses
