1 690 386 081 2018-02-22| Robert Bosch GmbH
Installation | EL–52425 | 19 en

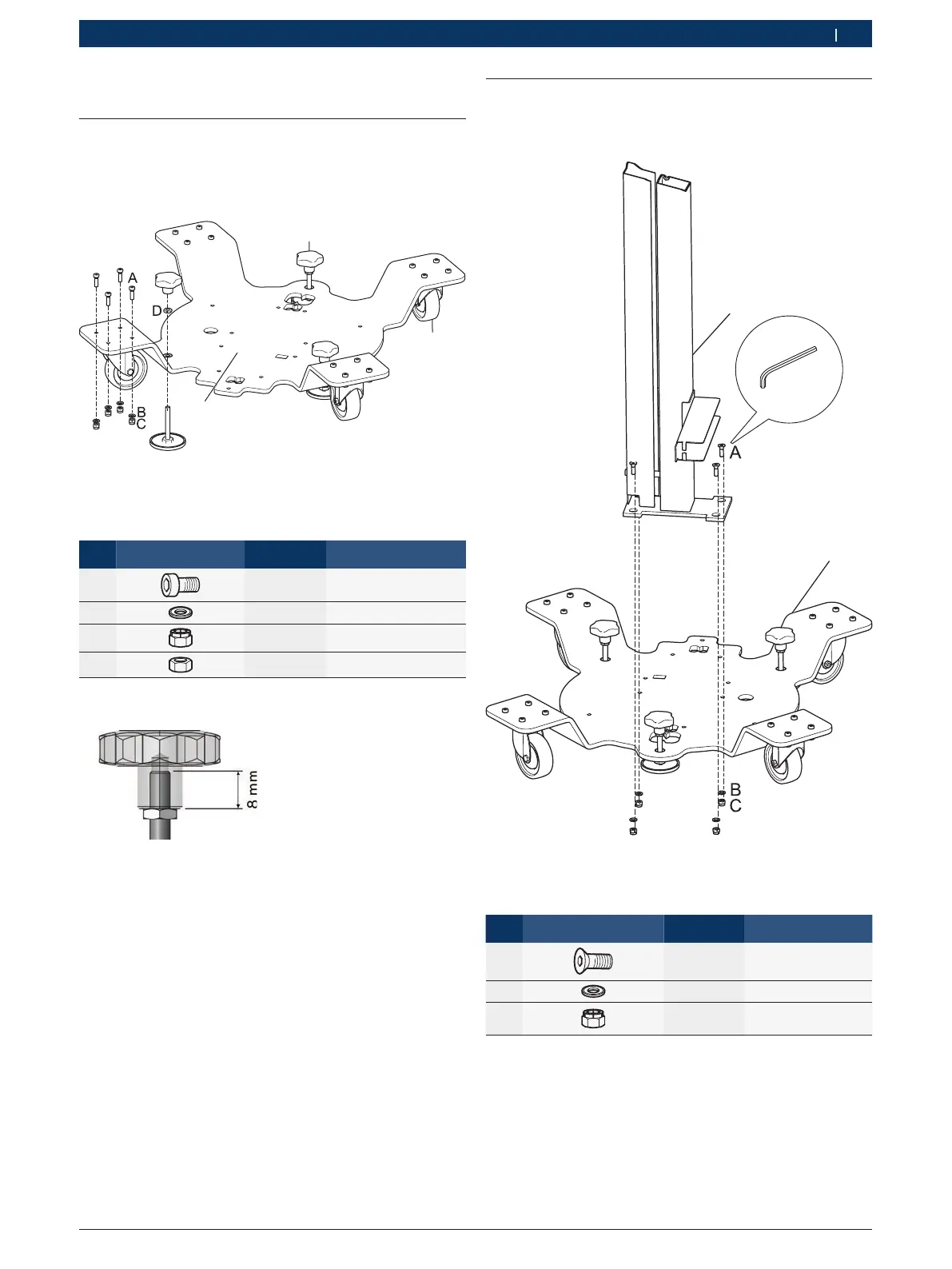

4. Installation
4.1 Base frame
¶ Attach the guide rollers and positioning feet to the
base frame.
1
2
3
Fig. 2: Base frame
1 Positioning foot 3x
2 Guide roller 4x
3 Position for column
Item Mounting method Quantity Size [mm]
A
16x M6x20
B
16x M6
C
16x M6
D
3 x M8
Tab. 1: Base frame fastening material
i Table 1 and 2 = parts set 1 690 381 203
4.2 Column
¶ Mount column to the base plate.
1
2
Fig. 3: Column
1 Plug
2 Base plate
Item Mounting method Quantity Size [mm]
A
4x M6x25
B
4x M6
C
4x M6
Tab. 2: Column fastening material
