1 690 386 081 2018-02-22| Robert Bosch GmbH
Operation | EL–52425 | 21 en
x

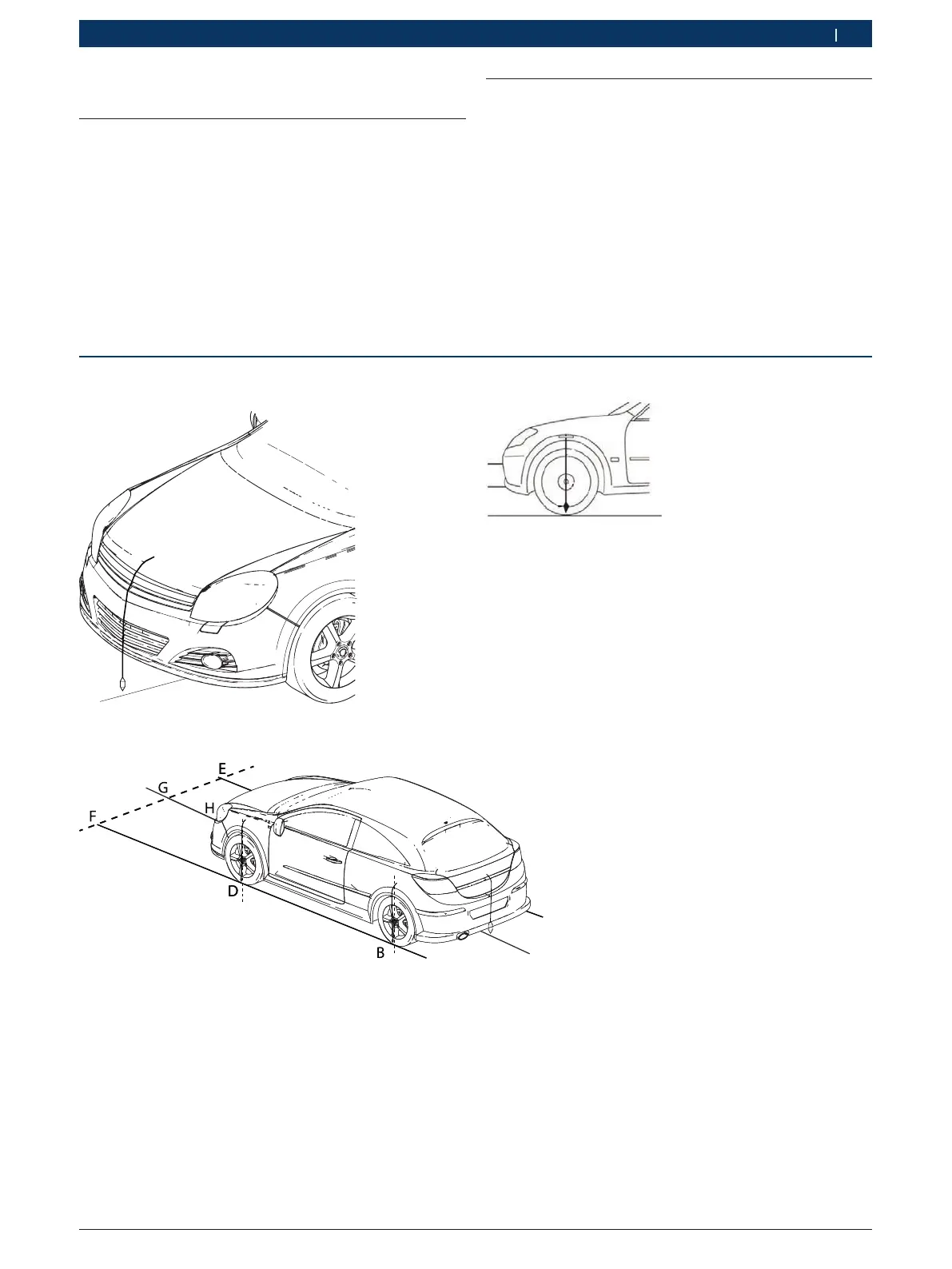

Fig. 7: View of front plumb bob
x
Fig. 8: View of side plumb bob
5.2 Alignment example
1. Make the floor markings using the plumb bob on the
vehicle and then align the EL–52425 accordingly.
2. Mark the floor for alignment. Position the EL–52425
in front of the vehicle.
3. Center the EL–52425 between the left (F) and right
(E) marking on the floor, using the inspection glass
in the base frame as reference.
4. At the same time, slowly move the base frame until
the two pointers in the base plate opening point to
the line G-H.
5. Operation
5.1 Alignment
i
The specific values for the exact alignment of the
EL–52425 described in the car manufacturer's "Re-
pair instructions".
Fig. 9: View of front left plumb bob
