Checking Cylinder Head for Distortion
– Check the cylinder head at several locations for distortion us‐
ing a Straight Edge - 500mm - VAS6075- and a feeler gauge.
♦ Maximum permissible distortion: 0.05 mm

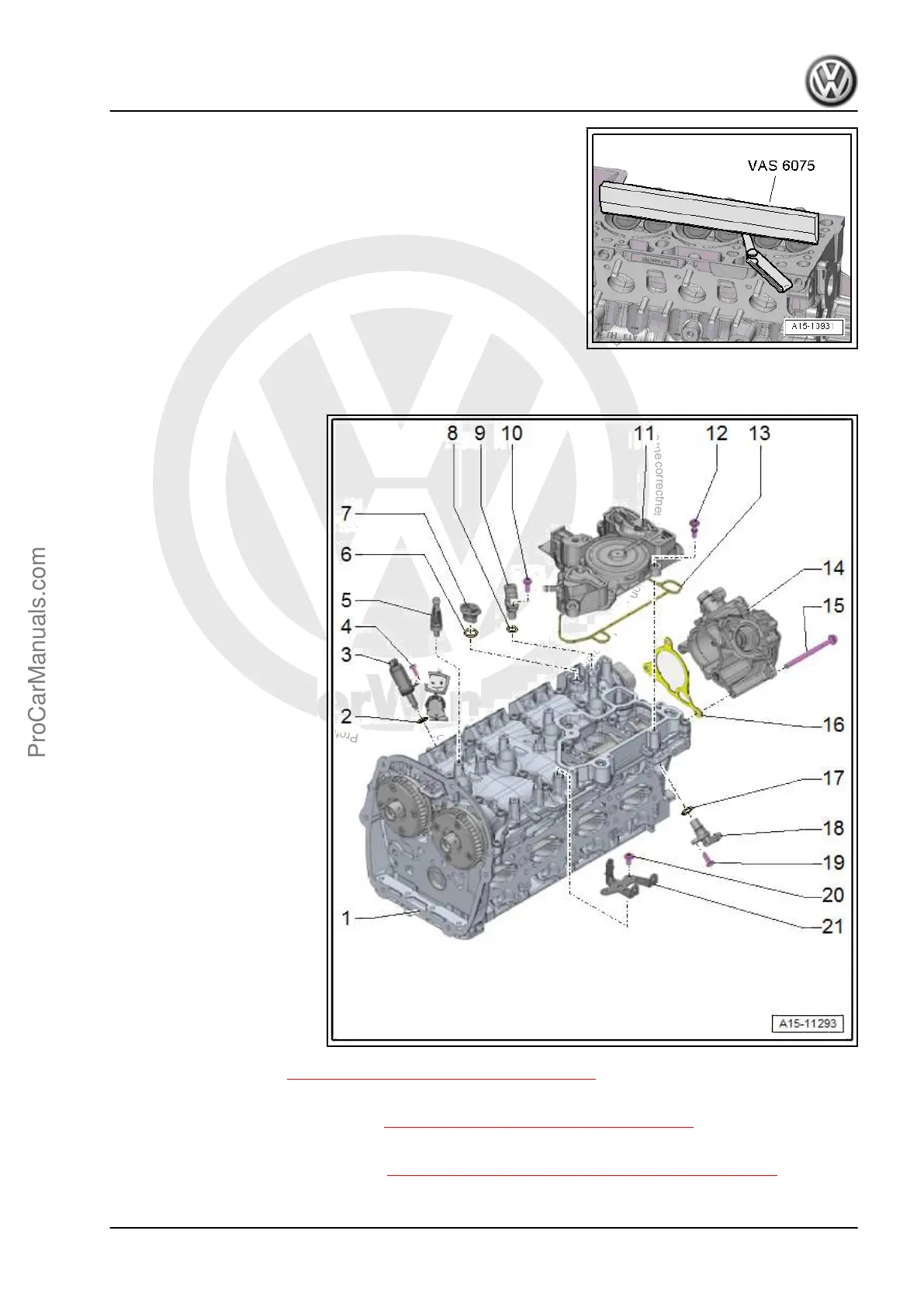

1.2 Overview - Camshaft Housing
1 - Cylinder Head
2 - O-Ring
❑ Only installed on vehi‐
cles with the engine co‐
des CNTA, CXCA,
CXCB
❑ Replace after removing
❑ Coat with engine oil
3 - Cam Adjustment Actuator
❑ Only installed on vehi‐
cles with the engine co‐
des CNTA, CXCA,
CXCB
4 - Bolt
❑ 5 Nm
❑ Only installed on vehi‐
cles with the engine co‐
des CNTA, CXCA,
CXCB
5 - Ball Pin
❑ 9 Nm
❑ For engine cover
6 - O-Ring
❑ Replace after removing
❑ Coat with engine oil
7 - Plug
8 - O-Ring
❑ Replace after removing
❑ Coat with engine oil
9 - Camshaft Position Sensor
3 - G300-
❑ Overview. Refer to ⇒ 1.1 Overview - Ignition System, page 356 .
10 - Bolt
❑ Tightening specification. Refer to ⇒ 1.1 Overview - Ignition System, page 356 .
11 - Oil Separator
❑ Removing and installing. Refer to ⇒ 3.2 Oil Separator, Removing and Installing, page 196 .
Golf 2015 ➤ , Golf Variant 2015 ➤
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
1. Cylinder Head 93
