24 – Multiport Fuel Injection
1 Fuel Injection System
⇒ 1.1 Overview - Component Location, Fuel Injection System,
page 273 .
⇒ 1.2 High Fuel Pressure, Reducing, page 283 .

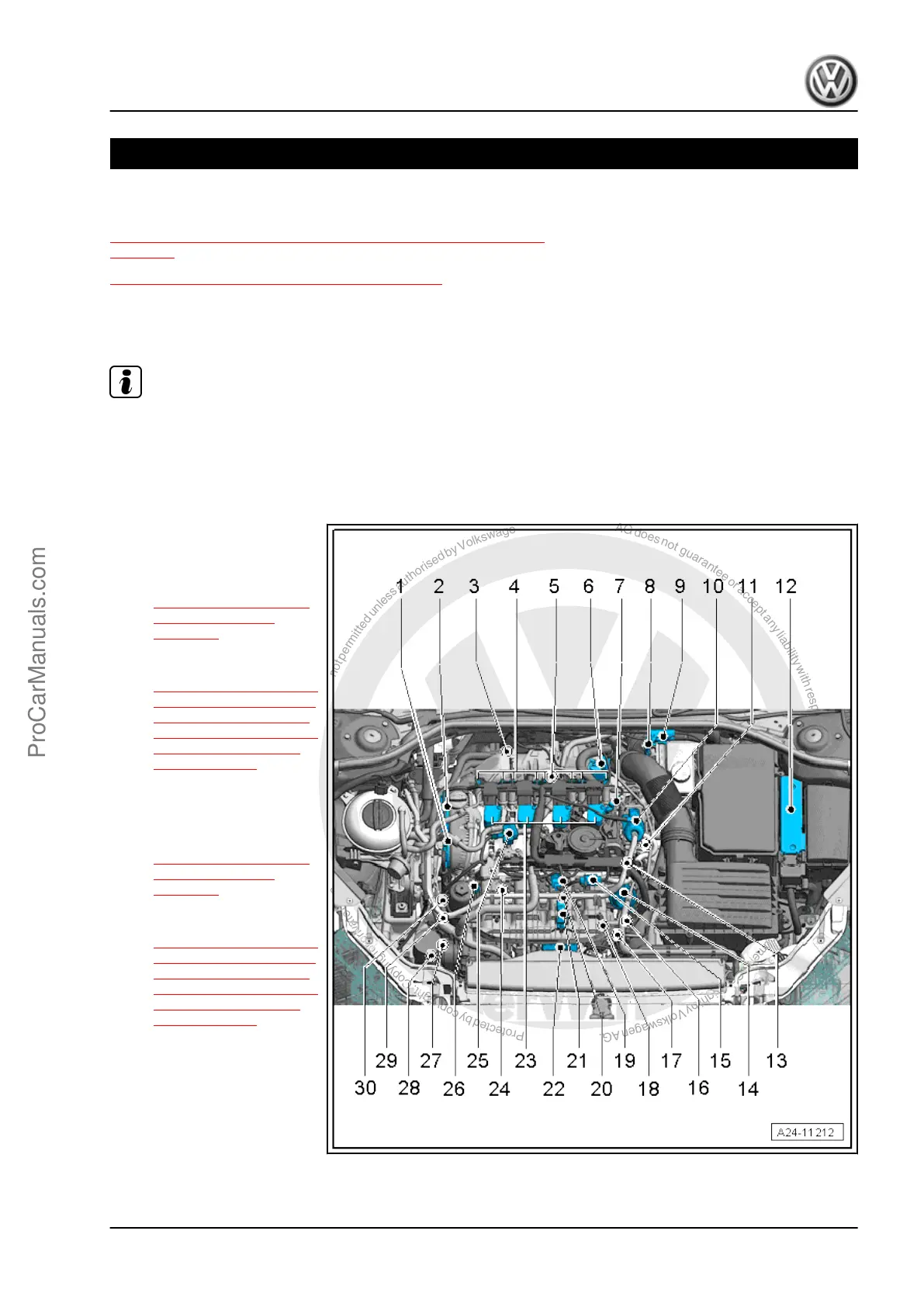

1.1 Overview - Component Location, Fuel
Injection System
Note
Vehicles with the engine codes CNTA do not have an intake
manifold-fuel injector.
Components A through H are not depicted in the exploded view
illustration.
1 - Camshaft Adjustment Valve
1 - N205-
❑ Component location.
Refer to
⇒ 2.1 Overview - Tim‐
ing Chain Cover,
page 104 .
❑ Removing and instal‐
ling. Refer to
⇒ 4.4 Camshaft Adjust‐
ment Valve 1 N205 and
Exhaust Camshaft Ad‐
justment Valve 1 N318 ,
Removing and Instal‐
ling, page 161 .
2 - Exhaust Camshaft Adjust‐
ment Valve 1 - N318-
❑ Component location.
Refer to
⇒ 2.1 Overview - Tim‐
ing Chain Cover,
page 104 .
❑ Removing and instal‐
ling. Refer to
⇒ 4.4 Camshaft Adjust‐
ment Valve 1 N205 and
Exhaust Camshaft Ad‐
justment Valve 1 N318 ,
Removing and Instal‐
ling, page 161 .
3 - Oxygen Sensor 1 after Cat‐
alytic Converter - GX7-
❑ Consists of:
Oxygen Sensor after
Three Way Catalytic
Converter - G130-
Golf 2015 ➤ , Golf Variant 2015 ➤
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
1. Fuel Injection System 273
