2.6 Subframe Mount, Adjusting
Caution
This procedure contains mandatory replaceable parts. Refer
to component overview prior to starting procedure.
Mandatory Replacement Parts
♦ Bolts - Engine Mount
Procedure
– Remove the battery tray. Refer to ⇒ Electrical Equipment;
Rep. Gr. 27 ; Battery; Battery Tray, Removing and Installing .
– Support the engine in its installed position. Refer to
⇒ 2.5 Engine, Supporting in Installed Position, page 33 .

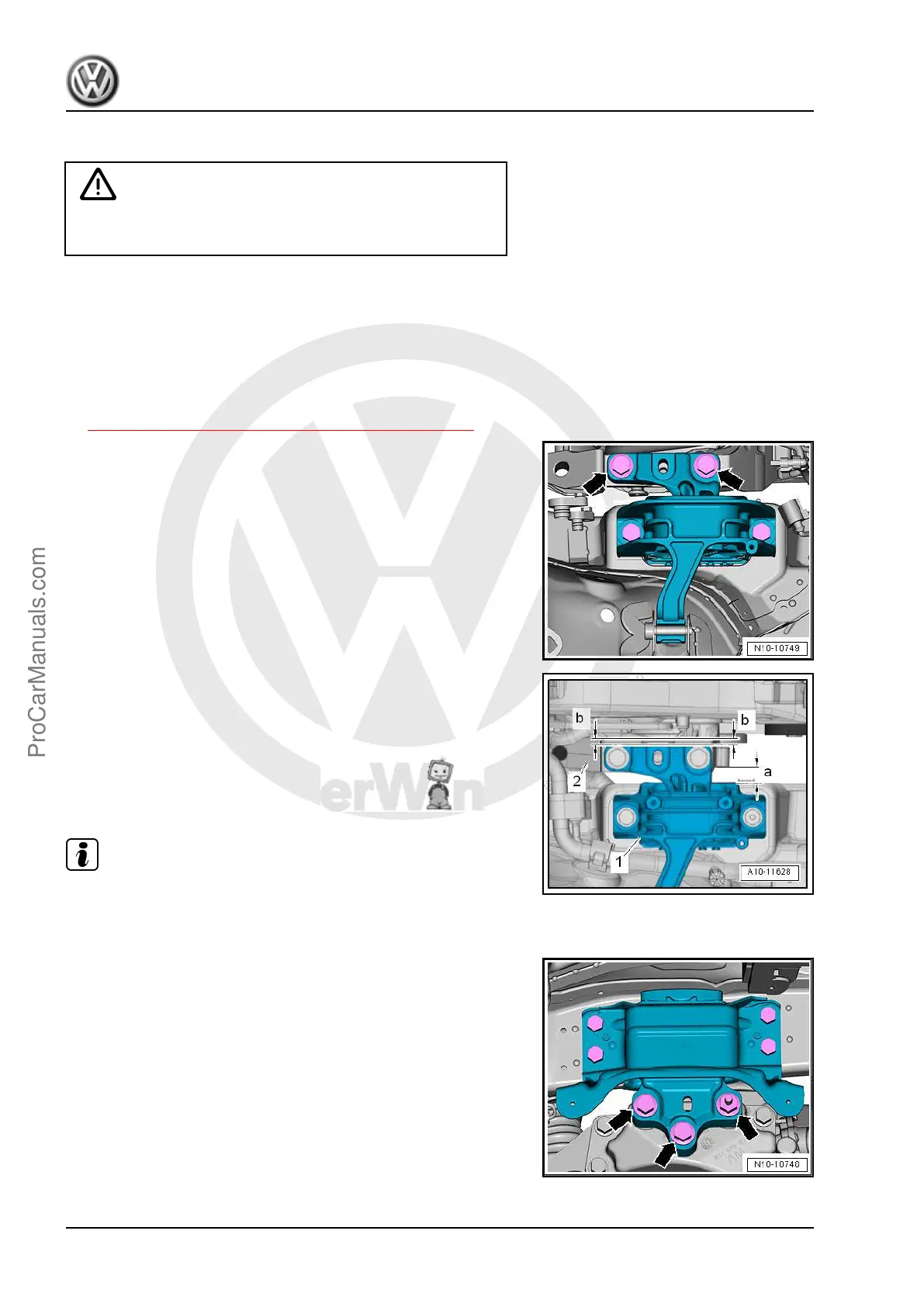

– Remove and replace the bolts -arrows- for the engine mount
one after the other (if this was not already done when the en‐
gine was installed).
– Install the bolts loosely.
– Slide engine/transmission assembly with a pry bar, until the
following dimensions are set:
• The clearance between the engine support -2- and the engine
mount -1- must be -a- = 10 mm.
• The casting edge on the engine support must be parallel to the
support arm.
• Dimension -b- = Dimension -b-.
Note
Distance -a- can also be checked using a suitable round stock.
– Tighten the bolts on the engine mount.
– Remove the replace the bolts -arrows- for the transmission
mount one after the other on the (if this was not already done
when the engine was installed).
– Install the bolts loosely.
Golf 2015 ➤ , Golf Variant 2015 ➤
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
36 Rep. Gr.10 - Engine Assembly
