4 Radiator/Coolant Fan
⇒ 4.1 Overview - Radiator/Coolant Fan, page 244 .
⇒ 4.3 Overview - Fan Shroud and Radiator Fan, page 247 .
⇒ 4.4 Radiator, Removing and Installing, page 247 .
⇒ 4.5 Fan Shroud, Removing and Installing, page 249 .
⇒ 4.6 Coolant Fan, Removing and Installing, page 250 .
⇒ 4.7 Auxiliary Cooler, Removing and Installing, page 251 .

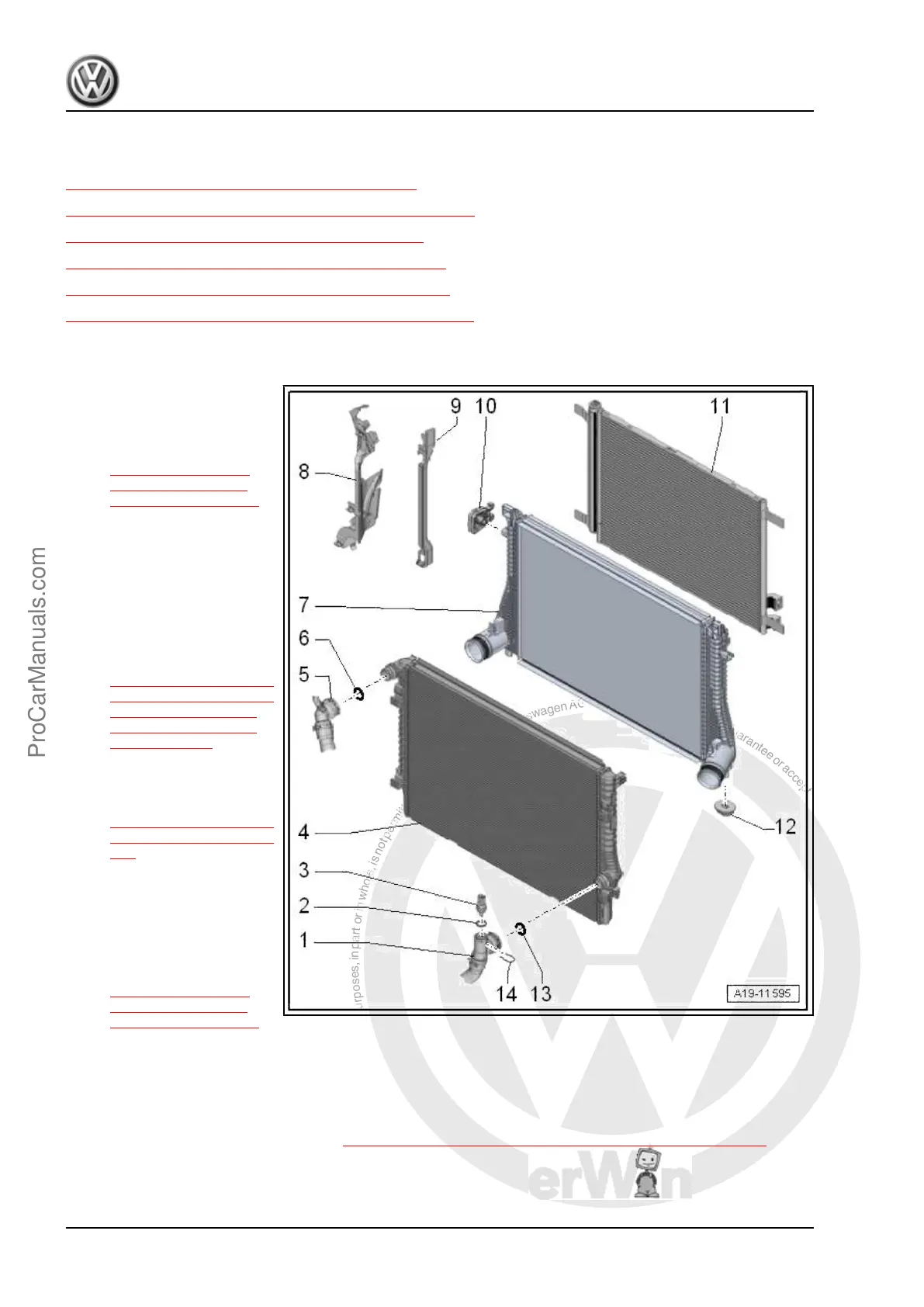

4.1 Overview - Radiator/Coolant Fan
1 - Coolant Hose
❑ Lift the retaining clamp
to remove
❑ Connecting. Refer to
⇒ Fig. Connect the
Coolant Hose to the
Coupling , page 245
2 - O-Ring
❑ Replace after removing
❑ Coat with coolant
3 - Engine Coolant Tempera‐
ture Sensor on Radiator Outlet
- G83-
❑ Removing and instal‐
ling. Refer to
⇒ 2.11 Engine Coolant
Temperature Sensor on
Radiator Outlet G83 ,
Removing and Instal‐
ling, page 239 .
4 - Radiator
❑ Removing and instal‐
ling. Refer to
⇒ 4.4 Radiator, Remov‐
ing and Installing, page
247 .
❑ Change the coolant af‐
ter replacing
5 - Coolant Hose
❑ Lift the retaining clamp
to remove
❑ Connecting. Refer to
⇒ Fig. Connect the
Coolant Hose to the
Coupling , page 245
6 - O-Ring
❑ Replace after removing
❑ Coat with coolant
7 - Charge Air Cooler
❑ Removing and installing. Refer to ⇒ 2.3 Charge Air Cooler, Removing and Installing, page 265 .
Golf 2015 ➤ , Golf Variant 2015 ➤
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
244 Rep. Gr.19 - Cooling System
