16 - Bolt
❑ 9 Nm
17 - Bolt
❑ 9 Nm
18 - Coolant Supply Line
19 - O-Ring
❑ Replace after removing
❑ Coat with coolant
20 - O-Ring
❑ Replace after removing
❑ Coat with engine oil
21 - Bolt
❑ 30 Nm
❑ Coat the thread with hot bolt paste. Refer to the Parts Catalog.
22 - Bracket
❑ For the turbocharger
23 - Bolt
❑ 30 Nm
24 - Bolt
❑ 9 Nm

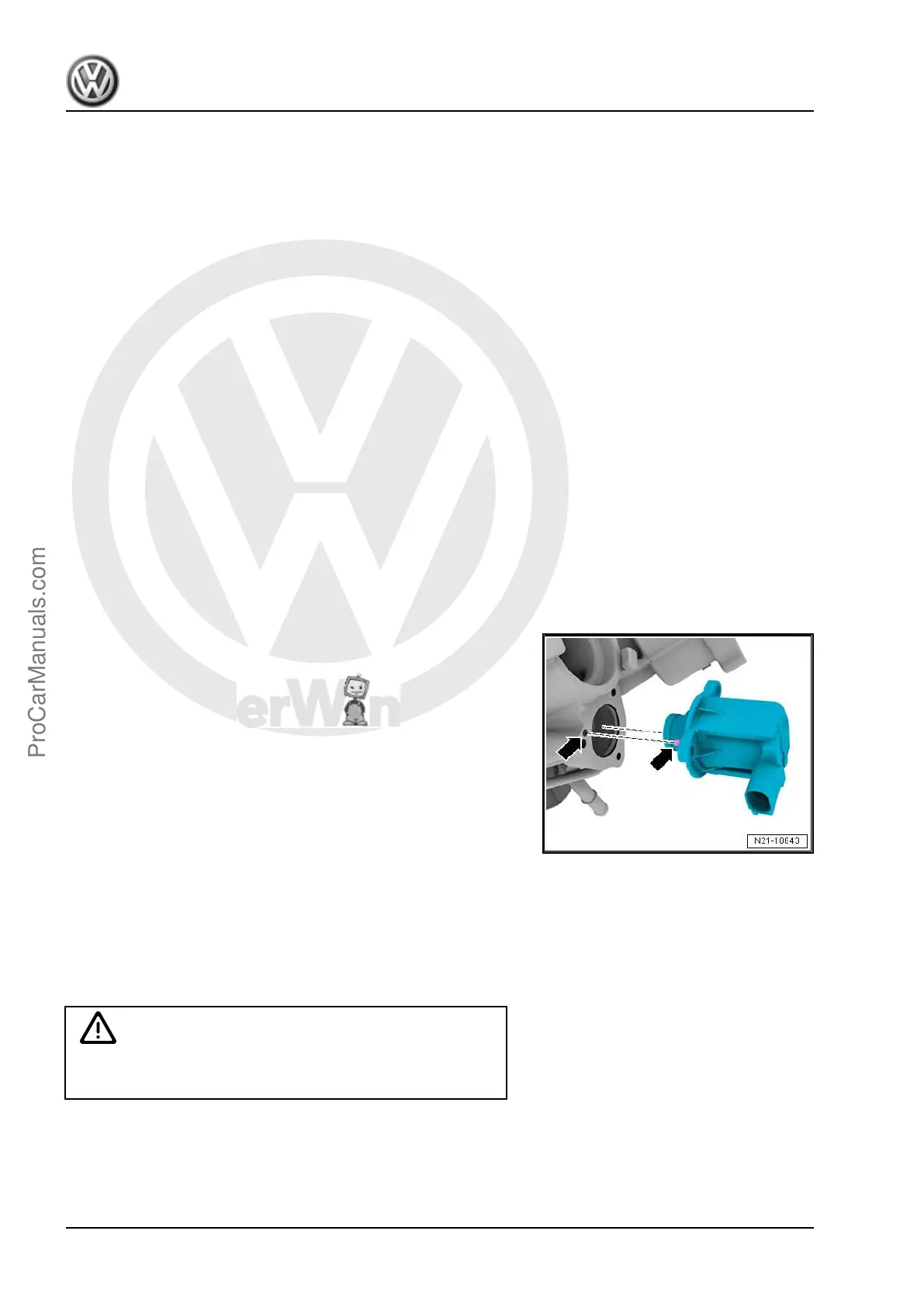

Installation Position of Turbocharger Recirculation Valve - N249-
– Note installation location -arrows-.
1.2 Turbocharger, Removing and Installing
Special tools and workshop equipment required
♦ Engine Bung Set - VAS6122-
♦ Hose Clip Pliers - VAS6362-
♦ Tensioning Strap - T10038-
Caution
This procedure contains mandatory replaceable parts. Refer
to component overview prior to starting procedure.
Mandatory Replacement Parts
♦ Nuts - Turbocharger
♦ O-rings - Turbocharger
Golf 2015 ➤ , Golf Variant 2015 ➤
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
258 Rep. Gr.21 - Turbocharger, Supercharger
