18 - Balance Shaft Drive Chain
❑ Removing and installing. Refer to
⇒ 3.4 Balance Shaft Drive Chain, Removing and Installing, page 130 .

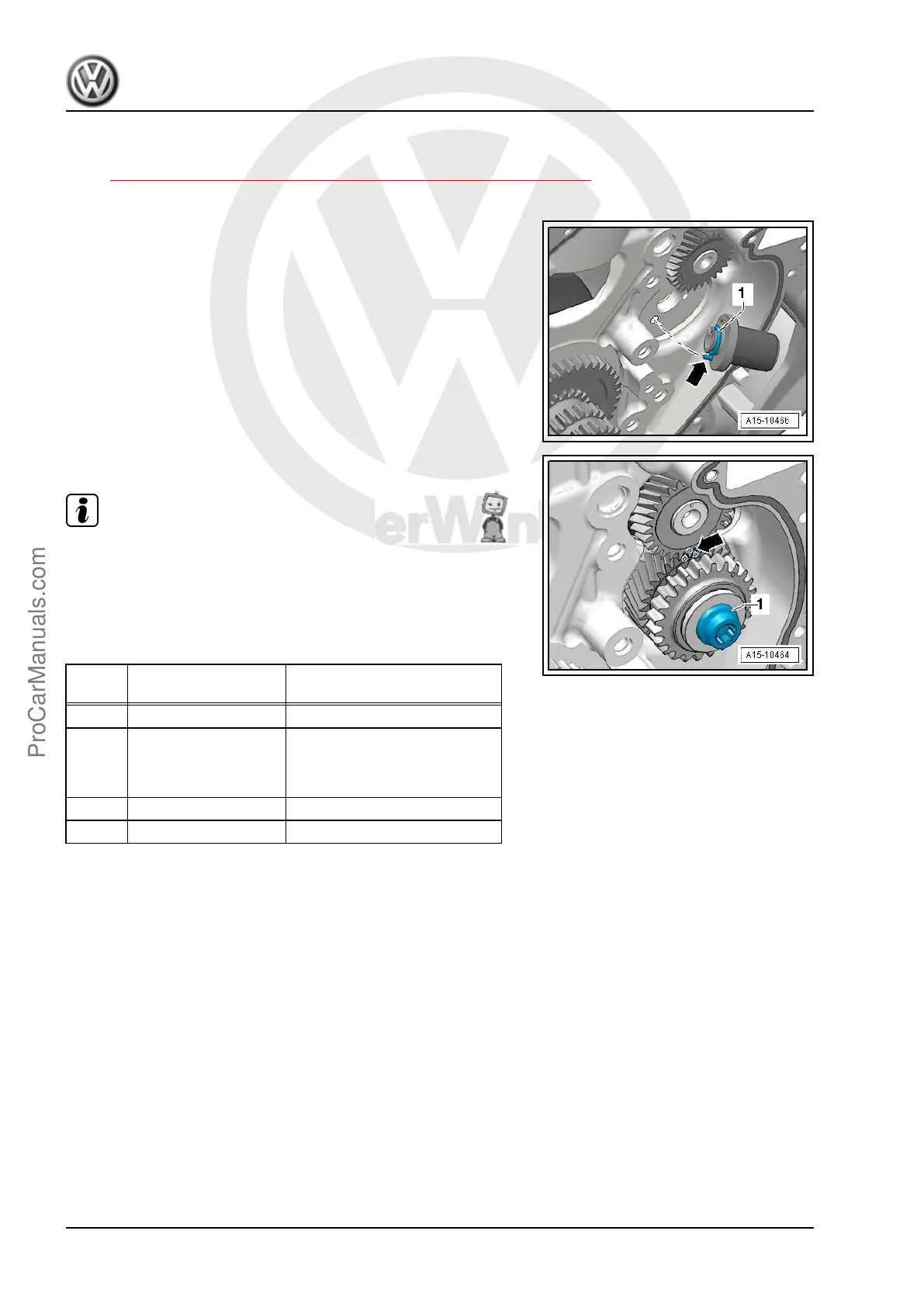

Mounting Pins - Installation Position
• Replace and lubricate the O-Ring -1-
• The alignment pin -arrow- for the bearing pins must engage in
the hole in the cylinder block.
• Lubricate the bearing pins
Intermediate Sprocket Tightening Sequence
Note
♦
Always replace the intermediate sprocket. Otherwise the
backlash will not adjust itself and it could result in engine dam‐
age.
♦
The new intermediate sprocket has an anti-friction coating that
wears off after a short period of use, which automatically ad‐
justs the backlash.
Step Bolts Tightening Specification/Addi‐
tional Turn
1. -1- 10 Nm
2. -1- The intermediate sprocket
must not have any play. Loos‐
en and tighten it again if nec‐
essary.
3. -1- 25 Nm
4. -1- Turn an additional 90°
3.3 Camshaft Timing Chain, Removing and
Installing
Special tools and workshop equipment required
♦ Assembly Tool - T10352/2-
♦ Counterhold - Vibration Damper - T10355-
♦ Locking Pin (3 pc.) - T40011-
♦ Chain Tensioner Lever - T40243-
♦ Tensioner Locking Tool - T40267-
♦ Camshaft Locks - T40271-
♦ Adapter - T40266-
♦ Assembly Tool - T10531-
♦ Individual components of the Assembly Tool - T10531- :
♦ Mount - T10531/1-
Golf 2015 ➤ , Golf Variant 2015 ➤
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
118 Rep. Gr.15 - Cylinder Head, Valvetrain
