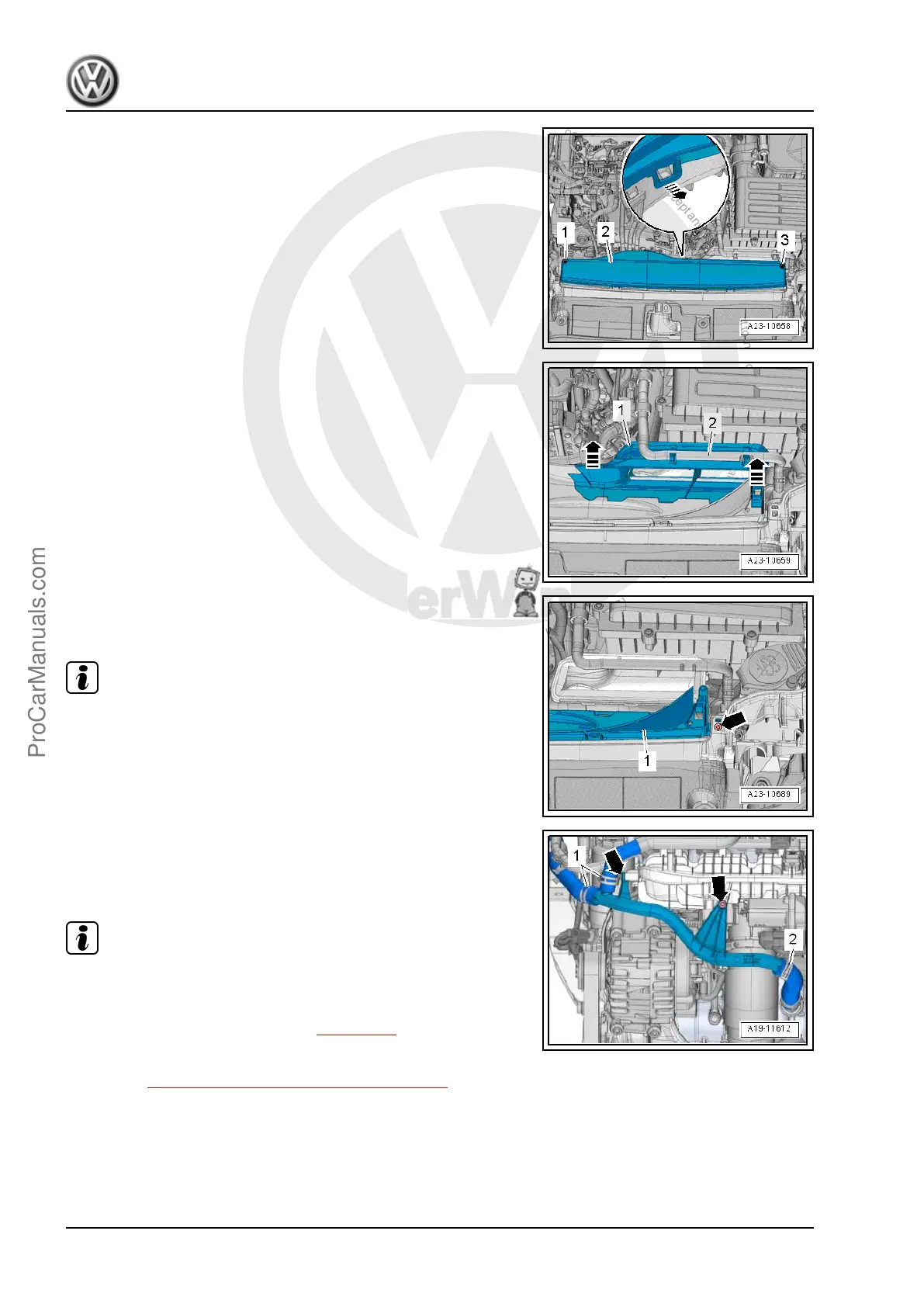

– Open the retainer in direction of -arrow- and remove the cover
-2-.
– Free up the coolant hose -2-.
– Open the retaining tabs in direction of -arrows-, remove the
upper air duct -1-.
– Remove the left and right bolts -arrow-.
– Unclip the air guide lower section -1- and remove.
Note
Place a cleaning cloth underneath, to catch coolant leaking out.
– Disconnect the coolant hoses -1 and 2- with Hose Clamps -
Up To 25mm - 3094- .
– Loosen the clamps and remove the coolant hoses.
– Remove the bolts -arrows- and the front coolant pipe.
Installing
Install in reverse order of removal. Note the following:
Note
Secure hose connections with standard production clamps. Refer
to the Parts Catalog.
– Check the coolant level. Refer to ⇒ page 222 .
Tightening Specifications
♦ Refer to ⇒ 3.1 Overview - Coolant Pipes, page 241 .
3.3 Upper Coolant Pipes, Removing and In‐
stalling
Special tools and workshop equipment required
♦ Hose Clamps - Up To 25mm - 3094-
Golf 2015 ➤ , Golf Variant 2015 ➤
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
242 Rep. Gr.19 - Cooling System
