11 - Secondary Air Injection Pump Motor - V101-
❑ Secondary Air Injection Pump Motor - V101- , Removing and installing. Refer to
⇒ 3.2 Secondary Air Injection Pump Motor V101 , Removing and Installing, page 353 .
3.2 Secondary Air Injection Pump Motor -
V101- , Removing and Installing

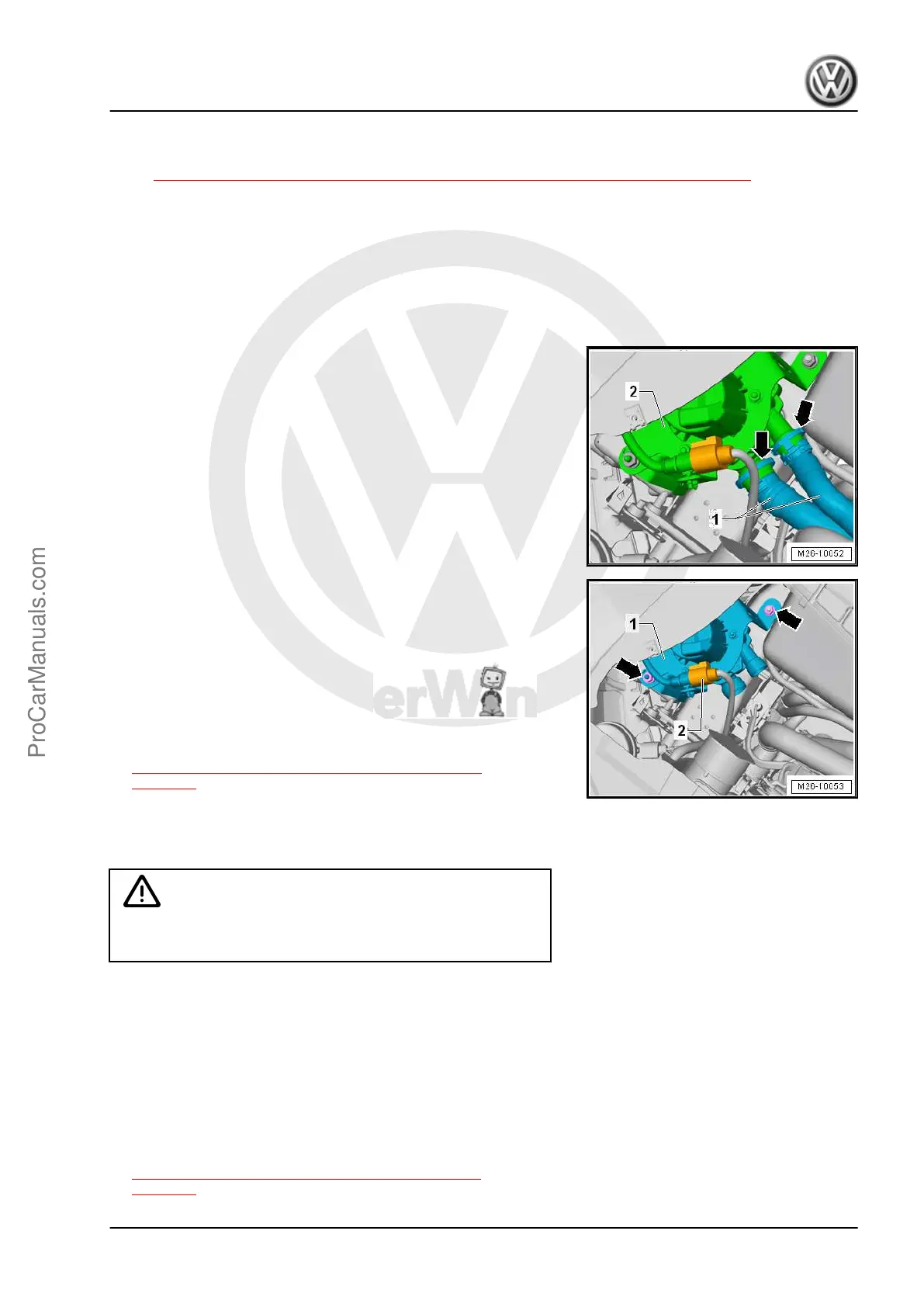

Removing
– Remove the noise insulation. Refer to ⇒ Body Exterior; Rep.
Gr. 66 ; Noise Insulation; Overview - Noise Insulation .
– Open the release -arrows- and remove the lines -1- from the
Secondary Air Injection Pump Motor - V101- -2-.
– Disconnect the connector -2- from the Secondary Air Injection
Pump Motor - V101- .
– Remove the nuts -arrows- and the Secondary Air Injection
Pump Motor - V101- -1- with the bracket.
Installing
Install in reverse order of removal. Note the following:
Tightening Specifications
♦ Refer to
⇒ 3.1 Overview - Secondary Air Injection System,
page 352
3.3 Secondary Air Injection Solenoid Valve
- N112- , Removing and Installing
Caution
This procedure contains mandatory replaceable parts. Refer
to component overview prior to starting procedure.
Mandatory Replacement Parts
♦ Seal - Secondary Air Injection Solenoid
• The flange must not be separated from the Secondary Air In‐
jection (AIR) solenoid valve.
• Both the AIR solenoid valve and the flange are replaced com‐
pletely.
Removing
– Remove the air filter housing. Refer to
⇒ 3.2 Air Filter Housing, Removing and Installing,
page 294 .
Golf 2015 ➤ , Golf Variant 2015 ➤
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
3. Secondary Air Injection System 353
