4.6 Valve Stem Seals, Removing and In‐
stalling
⇒ 4.6.1 Valve Stem Seals, Removing and Installing, Cylinder
Head Installed, page 163 .
⇒ 4.6.2 Valve Shaft Seals, Removing and Installing, Cylinder
Removed, page 166 .
4.6.1 Valve Stem Seals, Removing and In‐
stalling, Cylinder Head Installed
Special tools and workshop equipment required
♦ Spark Plug Removal Tool - 3122B-
♦ Puller - Valve Seal - 3364-
♦ Seal Installer - Valve Stem - 3365-
♦ Valve Cotter Tool Kit - Adapter - T40012-
♦ Torque Wrench 1331 5-50Nm - VAG1331-
♦ Valve Keeper Tool Kit - VAS5161A-
♦ Valve Cotter Tool Kit - Guide Plate 19B - VAS5161/19B-
♦ Valve Cotter Tool Kit Knurled Thumb Screws M6 -
VAS5161/12-
♦ Punch - VAS5161/3A-
Remove Valve Stem Seals
– Remove the camshafts. Refer to
⇒ 4.2 Camshaft, Removing and Installing, page 136 .
– Mark the allocation of the roller rocker lever and the hydraulic
adjusting elements so they can be installed again.
– If necessary, remove the roller rocker levers with the hydraulic
adjusting elements and place them on a clean surface.
– Remove the spark plugs using a Spark Plug Removal Tool -
3122B- .

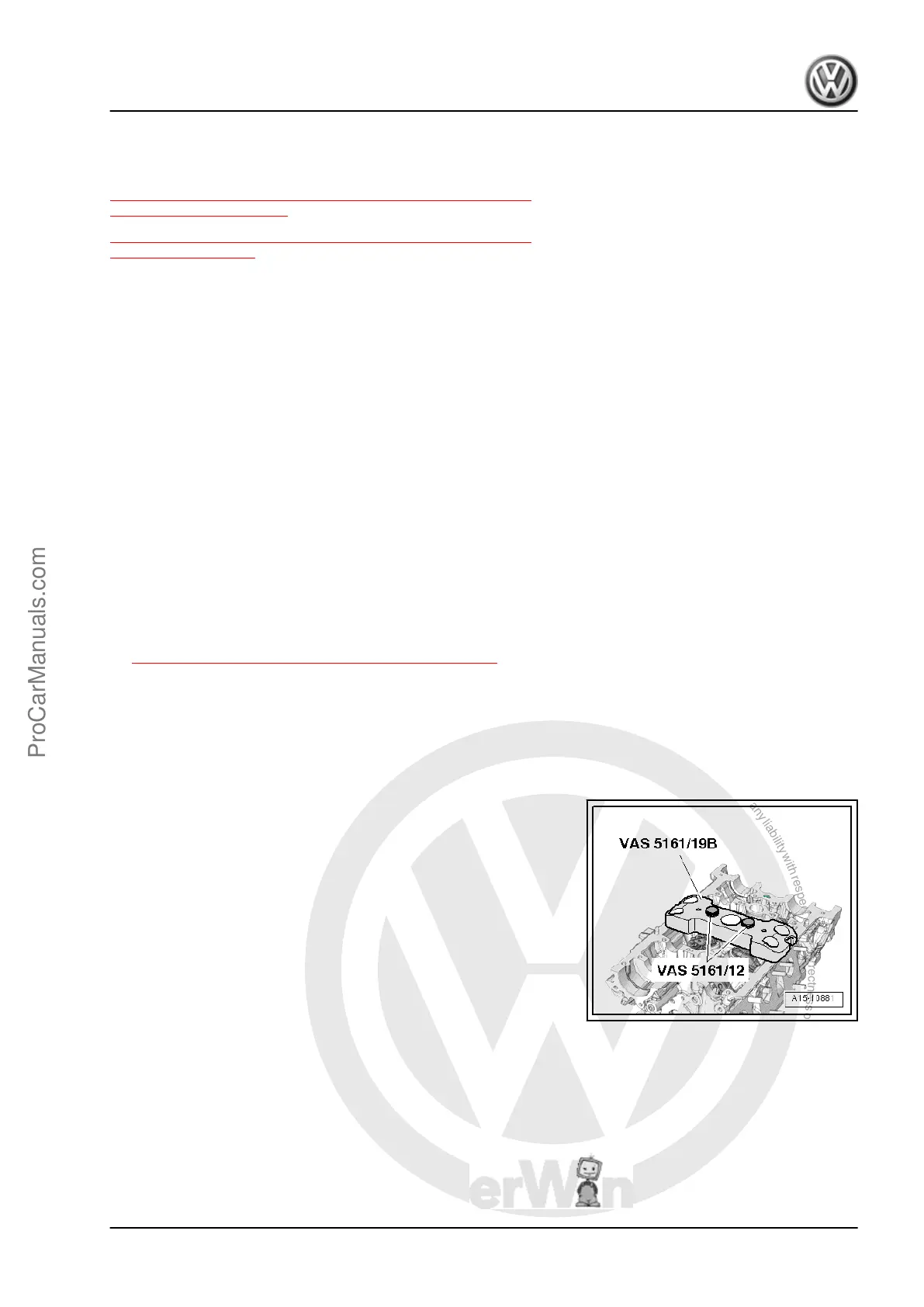

– Install the Valve Cotter Tool Kit - Guide Plate 19B -
VAS5161/19B- with the Valve Cotter Tool Kit Knurled Thumb
Screws M6 - VAS5161/12- as shown on the cylinder head.
– Move piston for that cylinder to bottom dead center position.
Golf 2015 ➤ , Golf Variant 2015 ➤
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
4. Valvetrain 163
