3 Secondary Air Injection System
⇒ 3.1 Overview - Secondary Air Injection System, page 352 .
⇒ 3.2 Secondary Air Injection Pump Motor V101 , Removing and
Installing, page 353 .
⇒ 3.3 Secondary Air Injection Solenoid Valve N112 , Removing
and Installing, page 353 .

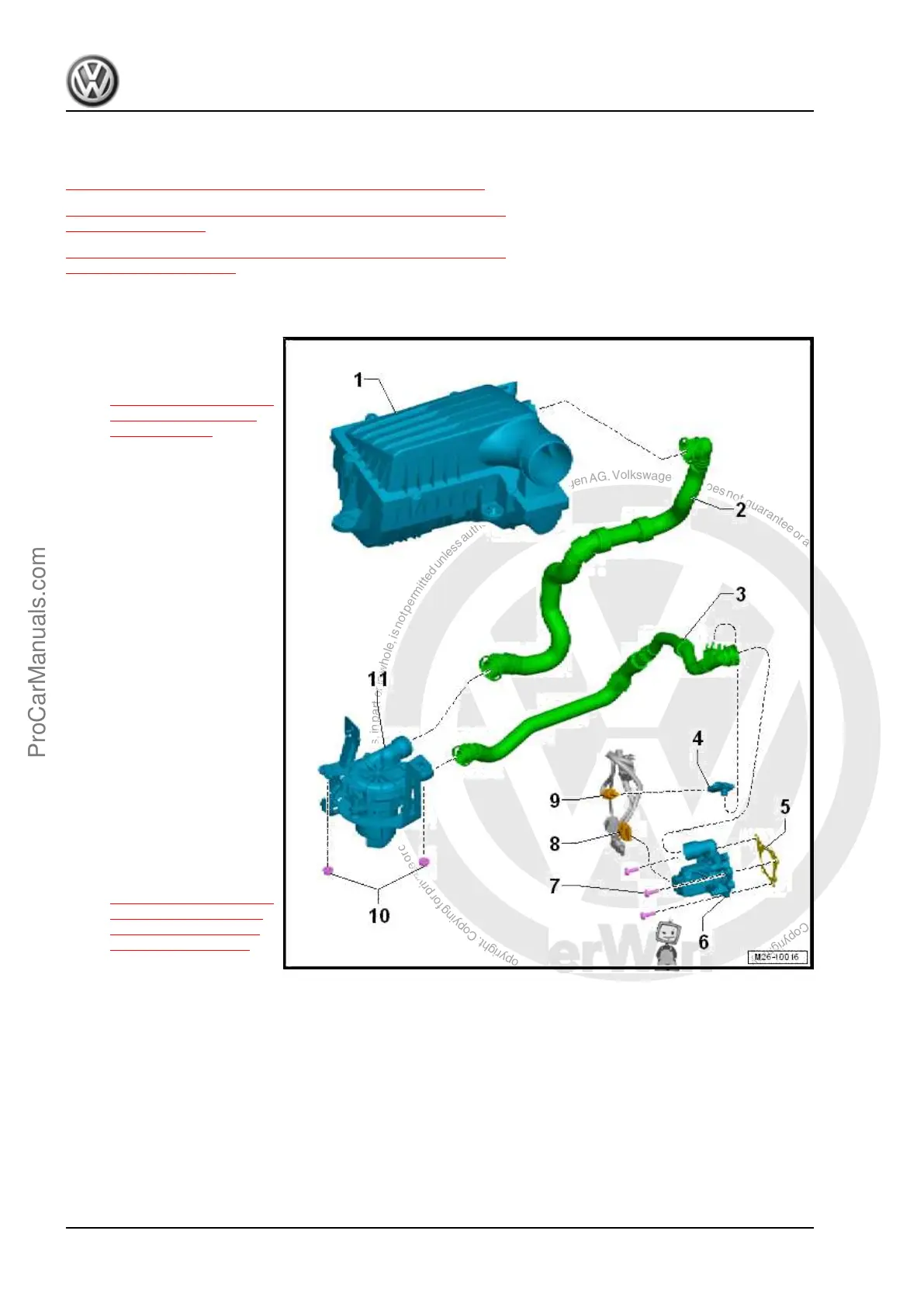

3.1 Overview - Secondary Air Injection System
1 - Air Filter Housing
❑ Removing and instal‐
ling. Refer to
⇒ 3.2 Air Filter Housing,
Removing and Instal‐
ling, page 294 .
2 - Connecting Line
❑ From the Secondary Air
Injection Pump Motor -
V101- on the air filter
housing
3 - Connecting Line
❑ From the Secondary Air
Injection Solenoid Valve
- N112- on the Secon‐
dary Air Injection Pump
Motor - V101-
4 - Secondary Air Injection
Sensor 1 - G609-
5 - Seal
❑ Replace after removing
the Secondary Air Injec‐
tion Solenoid Valve -
N112- .
6 - Secondary Air Injection Sol‐
enoid Valve - N112-
❑ Secondary Air Injection
Solenoid Valve - N112- ,
Removing and instal‐
ling. Refer to
⇒ 3.3 Secondary Air In‐
jection Solenoid Valve
N112 , Removing and
Installing, page 353 .
7 - Bolt
❑ 9 Nm
8 - Electric Connection
❑ For the Secondary Air Injection Solenoid Valve - N112-
9 - Electric Connection
❑ For the Secondary Air Injection Sensor 1 - G609-
10 - Nut
❑ 8 Nm
Golf 2015 ➤ , Golf Variant 2015 ➤
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
352 Rep. Gr.26 - Exhaust System, Emission Controls
