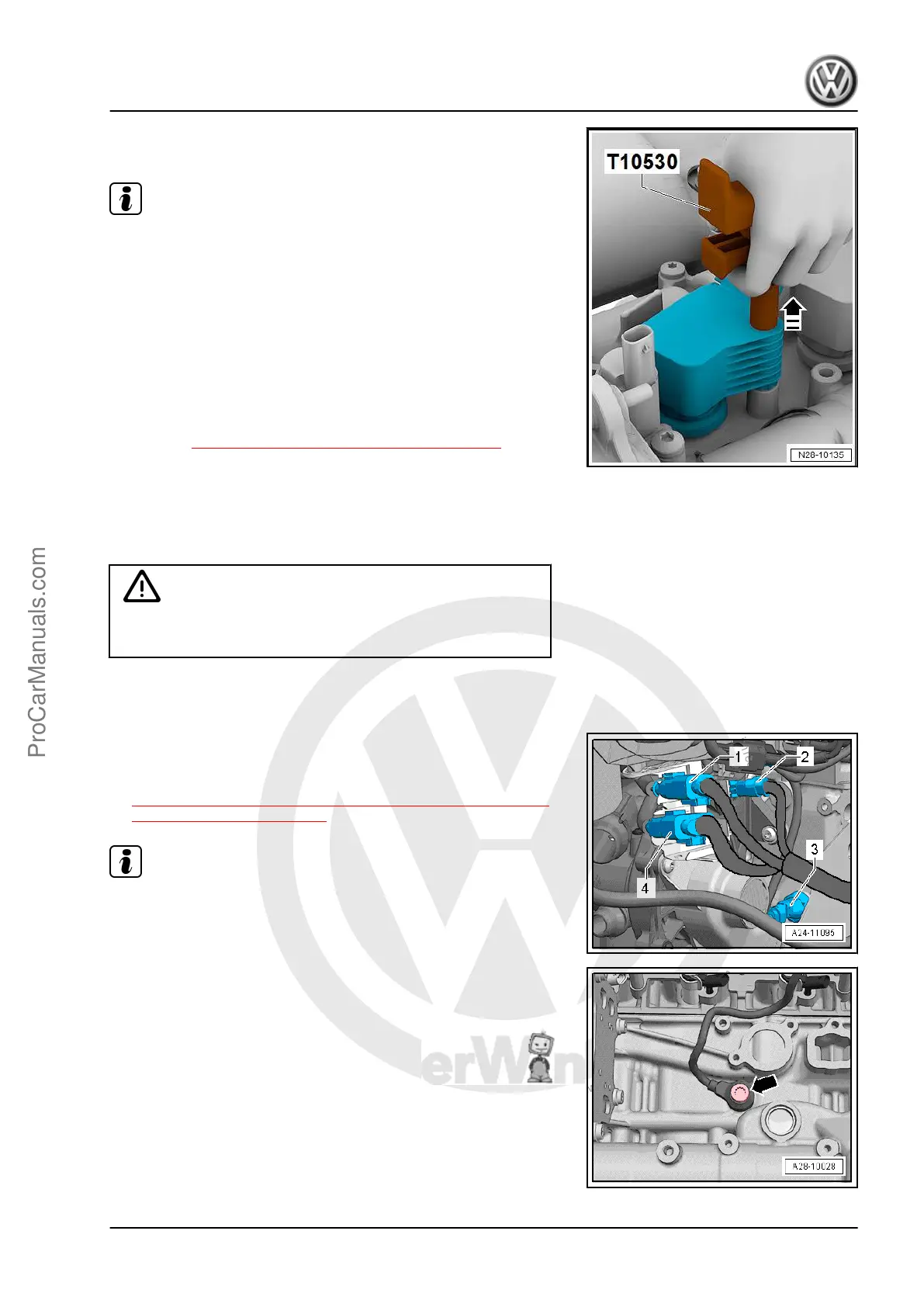

– Carefully remove the ignition coil vertically upward using the
Puller - T10530- .
Note
♦
Ignition coils with power output stage and spark plug connec‐
tors can be obtained individually for repairs. Refer to Parts
Catalog.
♦
The spark plug connector is removed from the ignition coil by
hand.
Installing
– Push the ignition coils evenly onto the spark plugs using your
hands (do not use any impact tools).
Tightening Specifications
♦ Refer to ⇒ 1.1 Overview - Ignition System, page 356
1.4 Knock Sensor 1 - G61- , Removing and
Installing
Removing
Caution
This procedure contains mandatory replaceable parts. Refer
to component overview prior to starting procedure.
Mandatory Replacement Parts
♦ Bolt - Knock Sensor
– Disconnect the connector -2- from Knock Sensor 1 - G61- .
– Remove the Engine Temperature Control Actuator - N493- .
Refer to
⇒ 2.9 Engine Temperature Control Actuator N493 , Remov‐
ing and Installing, page 237 .
Note
The Knock Sensor 1 - G61- is under the intake manifold behind
the Engine Temperature Control Actuator - N493- .
– Remove the Knock Sensor 1 - G61- -arrow-.
Golf 2015 ➤ , Golf Variant 2015 ➤
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
1. Ignition System 359
