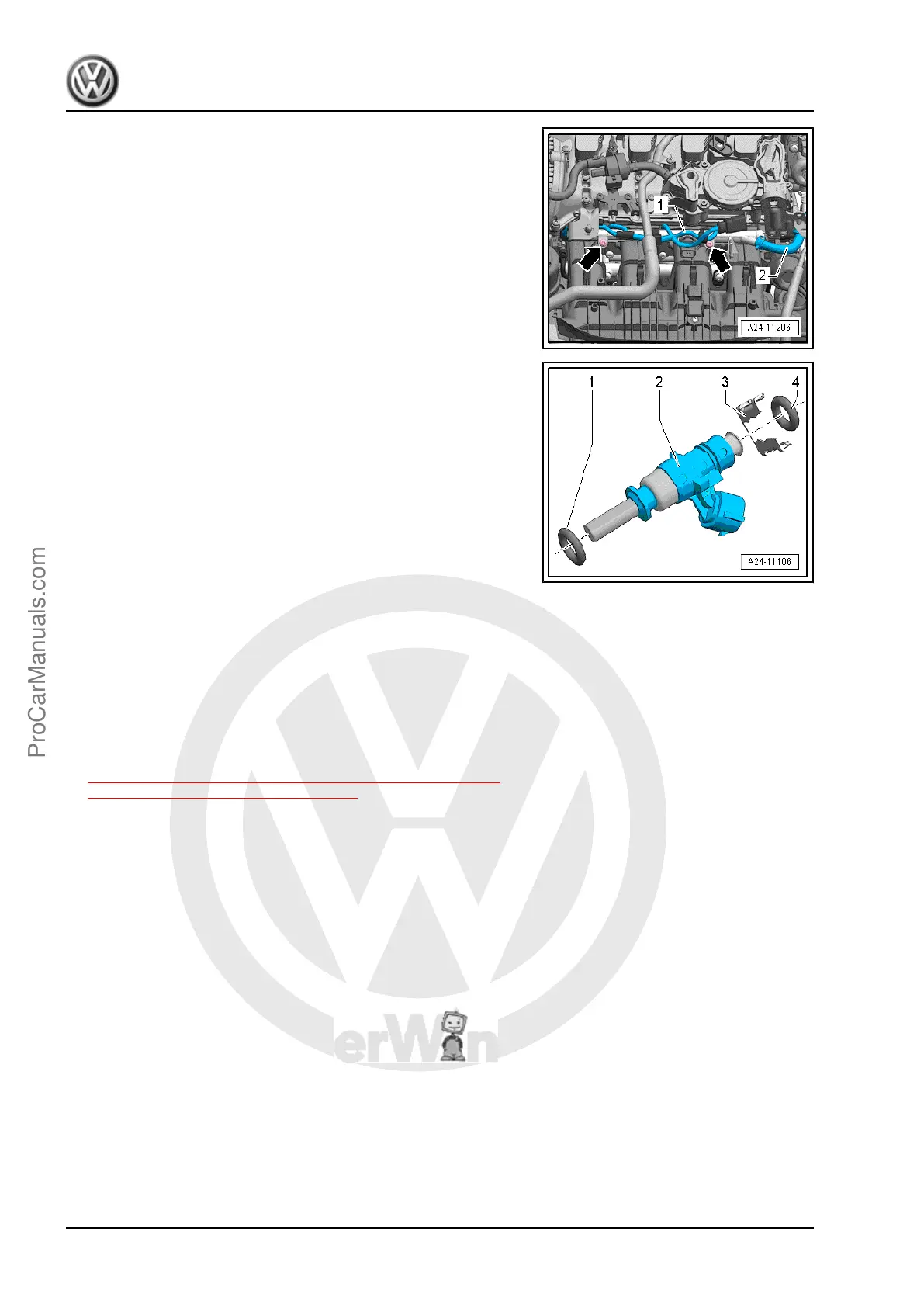

– Remove bolts -arrows- from the fuel rail.
– Carefully remove the fuel rail and fuel injector upward.
– Disconnect the connectors on the fuel injectors.
Overview - Fuel Injector
1 - Replace the O-ring (lightly coat with clean engine oil during
installation)
2 - Fuel Injector
3 - Clip
4 - Replace the O-ring (lightly coat with clean engine oil during
installation)
Installing
– Replace the O-ring on the fuel injector.
– Coat the O-rings with clean engine oil before installing.
– Connect the connectors on the fuel injectors.
– Press the fuel rail and the fuel injector by hand all the way into
the opening for the intake manifold (oil and grease free).
– Install in reverse order of removal.
– Install the fuel rail.
Tightening Specifications
♦ Refer to
⇒ 4.2.2 Overview - Intake Manifold Lower Section with Fuel
Rail, Multiport Fuel Injection, page 302
2.4 Fuel Injector Seals, Replacing
Special tools and workshop equipment required
♦ Injector/Combustion Chamber Seal Tool Set - Puller -
T10133/2A-
♦ Injector/Combustion Chamber Seal Tool Set - Sliding Hammer
- T10133/3-
♦ Injector/Combustion Chamber Seal Tool Set - Nylon Brush -
T10133/4-
♦ Injector/Combustion Chamber Seal Tool Set - Assembly Cone
- T10133/5-
♦ Injector/Combustion Chamber Seal Tool Set - Assembly
Sleeve - T10133/6-
♦ Injector/Combustion Chamber Seal Tool Set - Assembly Cal‐
ibration Sleeve - T10133/7- njector/Combustion Chamber
Seal Tool Set - Assembly Calibration Sleeve - T10133/8-
Golf 2015 ➤ , Golf Variant 2015 ➤
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
288 Rep. Gr.24 - Multiport Fuel Injection
