1.2 Exhaust Pipes/Mufflers, Separating
⇒ 1.2.1 Golf, page 342
⇒ 1.2.2 Golf Wagon, page 342
1.2.1 Golf
Special tools and workshop equipment required
♦ Chain Pipe Cutter - VAS6254-
♦ Pneumatic Body Saw - VAS6780-
♦ A separating point has been provided in the connecting pipe
for individual replacement of the center or rear muffler.
♦ The separating point is marked by a depression around the
circumference of the exhaust pipe.
Procedure

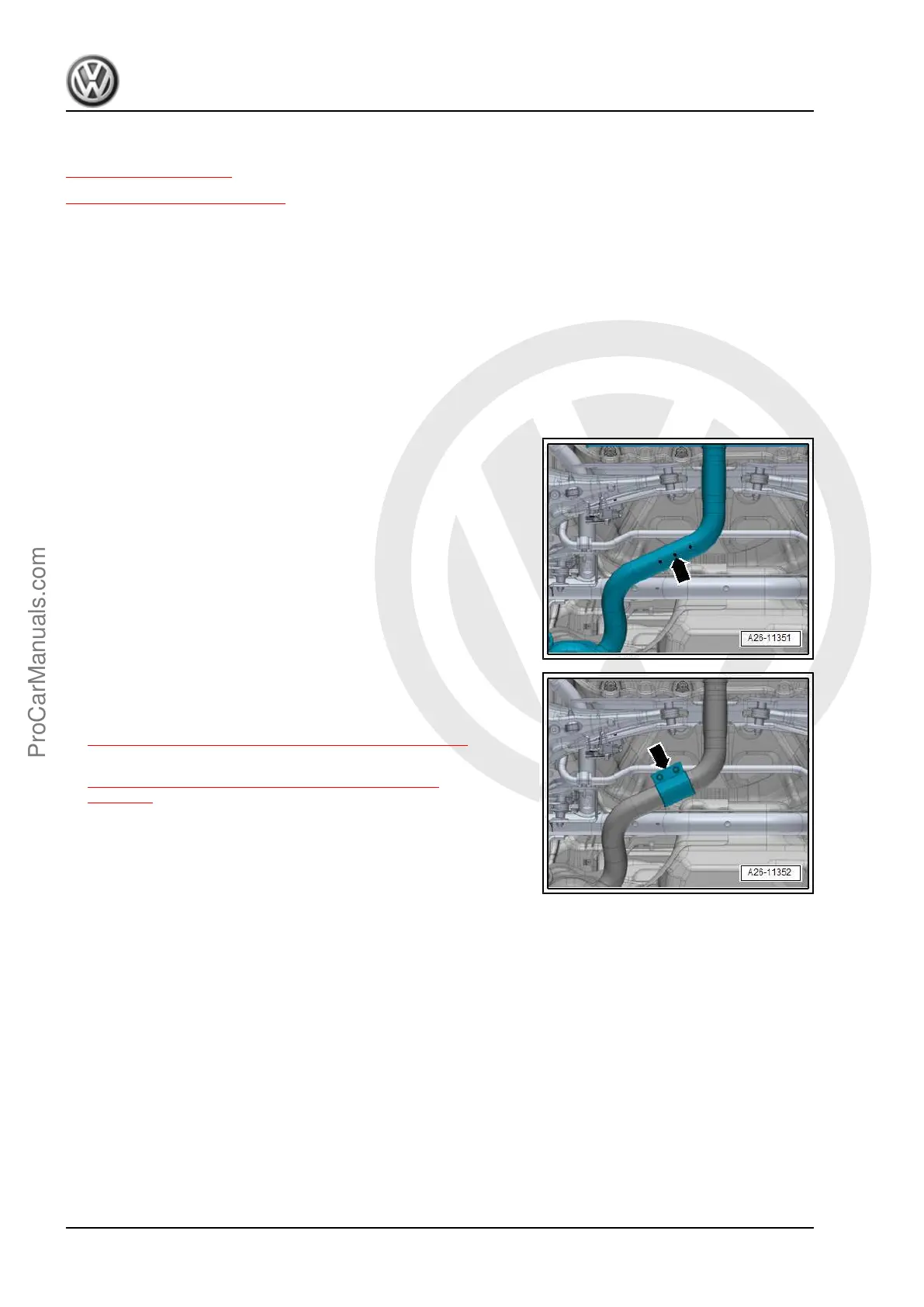

– Disconnect the exhaust pipe at the separating point -arrow- at
a right angle using the Chain Pipe Cutter - VAS6254- or Pneu‐
matic Body Saw - VAS6780- .
– When installing position the clamping sleeve -arrow- at the
side markings.
– Note the installation position. Refer to
⇒ 1.6 Clamping Sleeve Installation Position, page 347 .
– Install the exhaust system free of tension. Refer to
⇒ 1.4 Exhaust System, Installing without Tension,
page 345 .
1.2.2 Golf Wagon
Special tools and workshop equipment required
♦ Chain Pipe Cutter - VAS6254-
♦ A separating point has been provided in the connecting pipe
for individual replacement of the center or rear muffler.
♦ The separating point is marked by a depression around the
circumference of the exhaust pipe.
Golf 2015 ➤ , Golf Variant 2015 ➤
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
342 Rep. Gr.26 - Exhaust System, Emission Controls
