5 Sensors
⇒ 5.1 Overview - Structure Borne Sound Actuator and Control
Module, page 313
⇒ 5.2 Fuel Pressure Sensor G247 , Removing and Installing,
page 314
⇒ 5.3 Fuel Pressure Sensor G247 , Checking, page 316
⇒ 5.4 Low Fuel Pressure Sensor G410 , Removing and Instal‐
ling, page 318

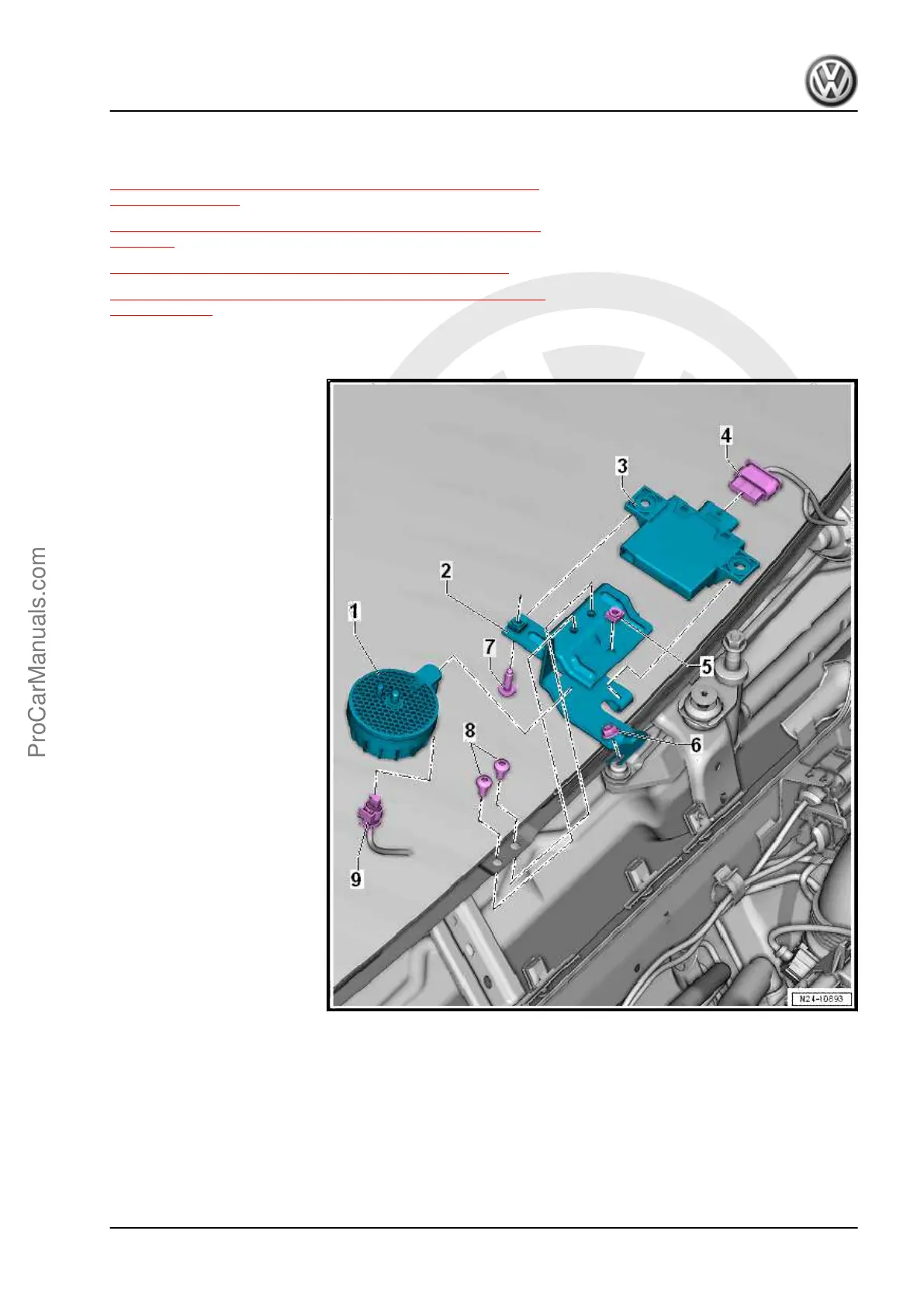

5.1 Overview - Structure Borne Sound Actuator and Control Module
1 - Structure-Borne Sound Ac‐
tuator - R214-
❑ Component location: in‐
side the plenum cham‐
ber
❑ To remove and install,
remove the plenum
chamber cover. Refer to
⇒ Body Exterior; Rep.
Gr. 50 ; Bulkhead; Ple‐
num Chamber Cover,
Removing and Instal‐
ling .
❑ Fastened with the nut
-5- to the bracket
2 - Bracket
❑ For the Structure-Borne
Sound Actuator - R214-
and Structure Borne
Sound Control Module -
J869-
❑ Can only be replaced
when the windshield is
removed
3 - Structure Borne Sound
Control Module - J869-
❑ Component location: in‐
side the plenum cham‐
ber
❑ To remove and install,
remove the plenum
chamber cover. Refer to
⇒ Body Exterior; Rep.
Gr. 50 ; Bulkhead; Ple‐
num Chamber Cover,
Removing and Instal‐
ling .
❑ Depending on the version, secured with a screw or with two nuts
4 - Connector
❑ For the Structure Borne Sound Control Module - J869-
5 - Nut
❑ 7 Nm
❑ For the Structure-Borne Sound Actuator - R214-
6 - Nut
❑ 9 Nm
Golf 2015 ➤ , Golf Variant 2015 ➤
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
5. Sensors 313
