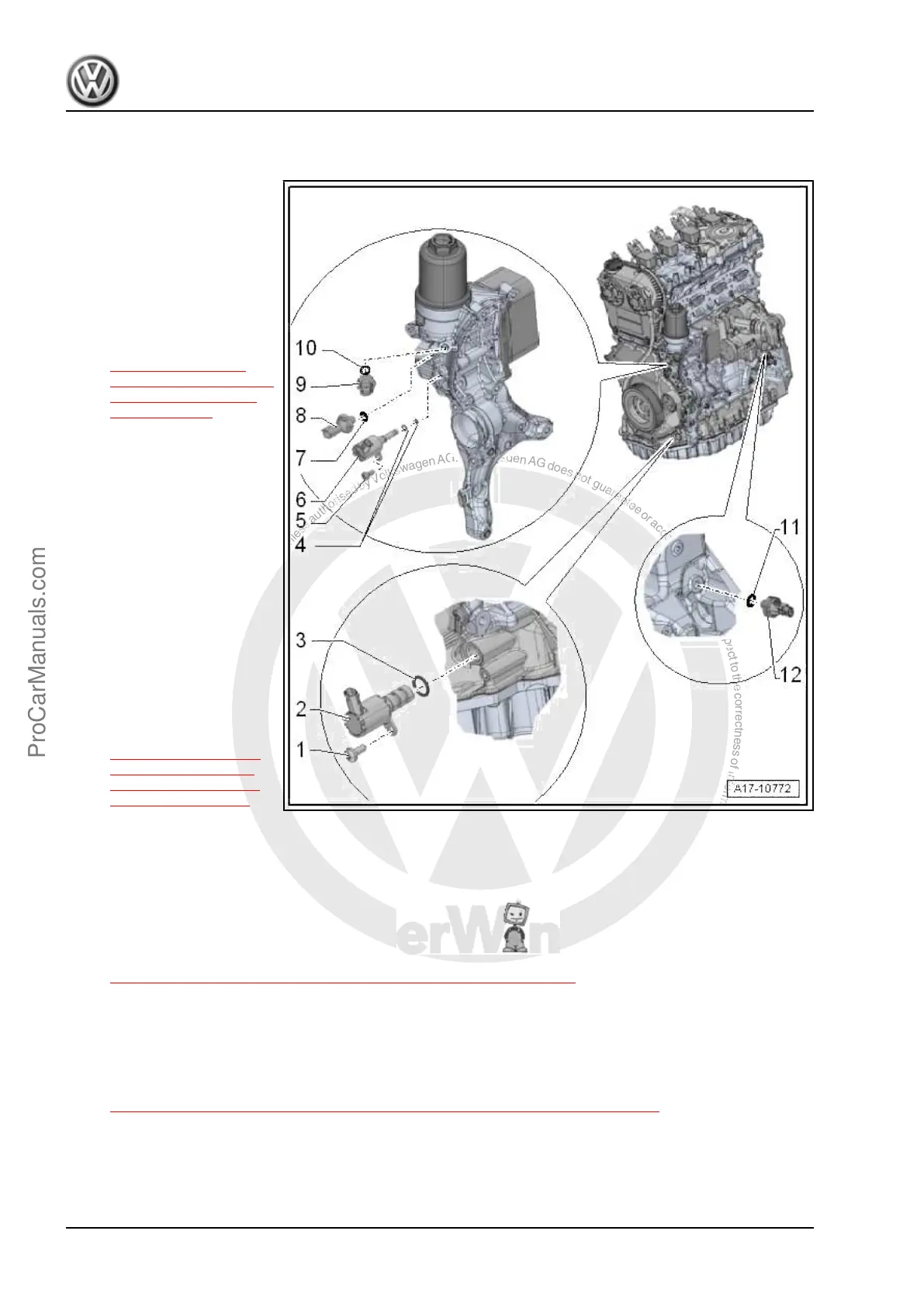

4.2 Overview - Oil Pressure Switch/Oil Pressure Regulator Valve
1 - Bolt
❑ 4 Nm + 90° turn
❑ Replace after removing
2 - Oil Pressure Regulation
Valve - N428-
❑ Checking. Refer to Ve‐
hicle Diagnostic Tester
❑ Removing and instal‐
ling. Refer to
⇒ 4.8 Oil Pressure
Regulation Valve N428 ,
Removing and Instal‐
ling, page 206 .
3 - O-Ring
❑ Replace after removing
❑ Coat with engine oil
4 - O-Rings
❑ Replace after removing
❑ Coat with engine oil
5 - Bolt
❑ 4 Nm + 45° turn
❑ Replace after removing
6 - Piston Cooling Nozzle Con‐
trol Valve - N522-
❑ Checking. Refer to Ve‐
hicle Diagnostic Tester
❑ Removing and instal‐
ling. Refer to
⇒ 4.7 Piston Cooling
Nozzle Control Valve
N522 , Removing and
Installing, page 205 .
7 - Seal
❑ Replace oil pressure switch after each time it is loosened
8 - Oil Pressure Switch - F1-
❑ 20 Nm
❑ Blue or gray insulation
❑ Checking. Refer to Vehicle Diagnostic Tester
❑ Removing and installing. Refer to
⇒ 4.3 Oil Pressure Switch F1 , Removing and Installing, page 199 .
9 - Reduced Oil Pressure Switch - F378-
❑ 20 Nm
❑ Brown insulation
❑ Checking. Refer to Vehicle Diagnostic Tester
❑ Removing and installing. Refer to
⇒ 4.4 Reduced Oil Pressure Switch F378 , Removing and Installing, page 200 .
10 - Seal
❑ Replace oil pressure switch after each time it is loosened
11 - Seal
❑ Replace oil pressure switch after each time it is loosened
Golf 2015 ➤ , Golf Variant 2015 ➤
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
198 Rep. Gr.17 - Lubrication
