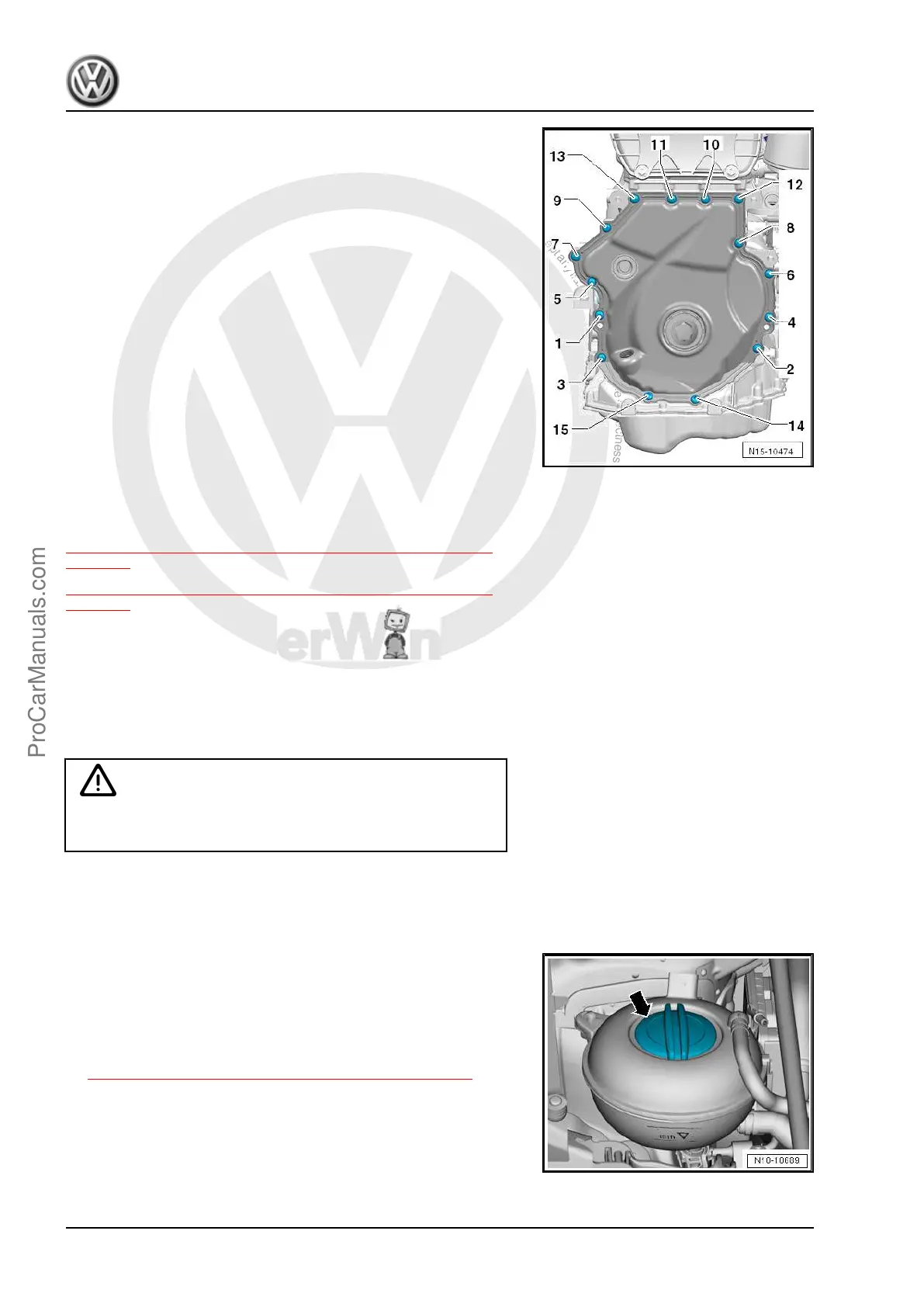

Lower Cover for Timing Chain - Tightening Sequence for 15 Bolts
Tighten the Steel Bolts -1 through 15- in Three Stages in the Se‐
quence Shown:
1 - Bolts -1 through 15- 8 Nm
2 - Bolts -1, 2,4, 5, and 7 to 15- 45° additional turn
3 - Bolts -3 and 6- after installing the vibration damper tighten with
an additional turn.
Tighten the Aluminum Bolts -1 through 15- in Three Stages in the
Sequence Shown:
1 - Bolts -1 through 15- 4 Nm
2 - Bolts -1, 2,4, 5, and 7 to 15- 45° additional turn
3 - Bolts -3 and 6- after installing the vibration damper tighten with
an additional turn.
2.2 Timing Chain Cover, Removing and In‐
stalling
⇒ 2.2.1 Upper Timing Chain Cover, Removing and Installing,
page 106
⇒ 2.2.2 Lower Timing Chain Cover, Removing and Installing,
page 108
2.2.1 Upper Timing Chain Cover, Removing
and Installing
Special tools and workshop equipment required
♦ Hose Clip Pliers - VAS6362-
♦ Sealant. Refer to the Parts Catalog.
Caution
This procedure contains mandatory replaceable parts. Refer
to component overview prior to starting procedure.
Mandatory Replacement Parts
♦ Seals - Upper Timing Cover
♦ O-ring - Oil Dipstick Tube
Removing
• The engine is cold.
– Briefly open the coolant reservoir cap -arrow- to reduce the
residual pressure in the coolant system.
– Remove the engine cover. Refer to
⇒ 3.1 Engine Cover, Removing and Installing, page 38 .
Golf 2015 ➤ , Golf Variant 2015 ➤
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
106 Rep. Gr.15 - Cylinder Head, Valvetrain
