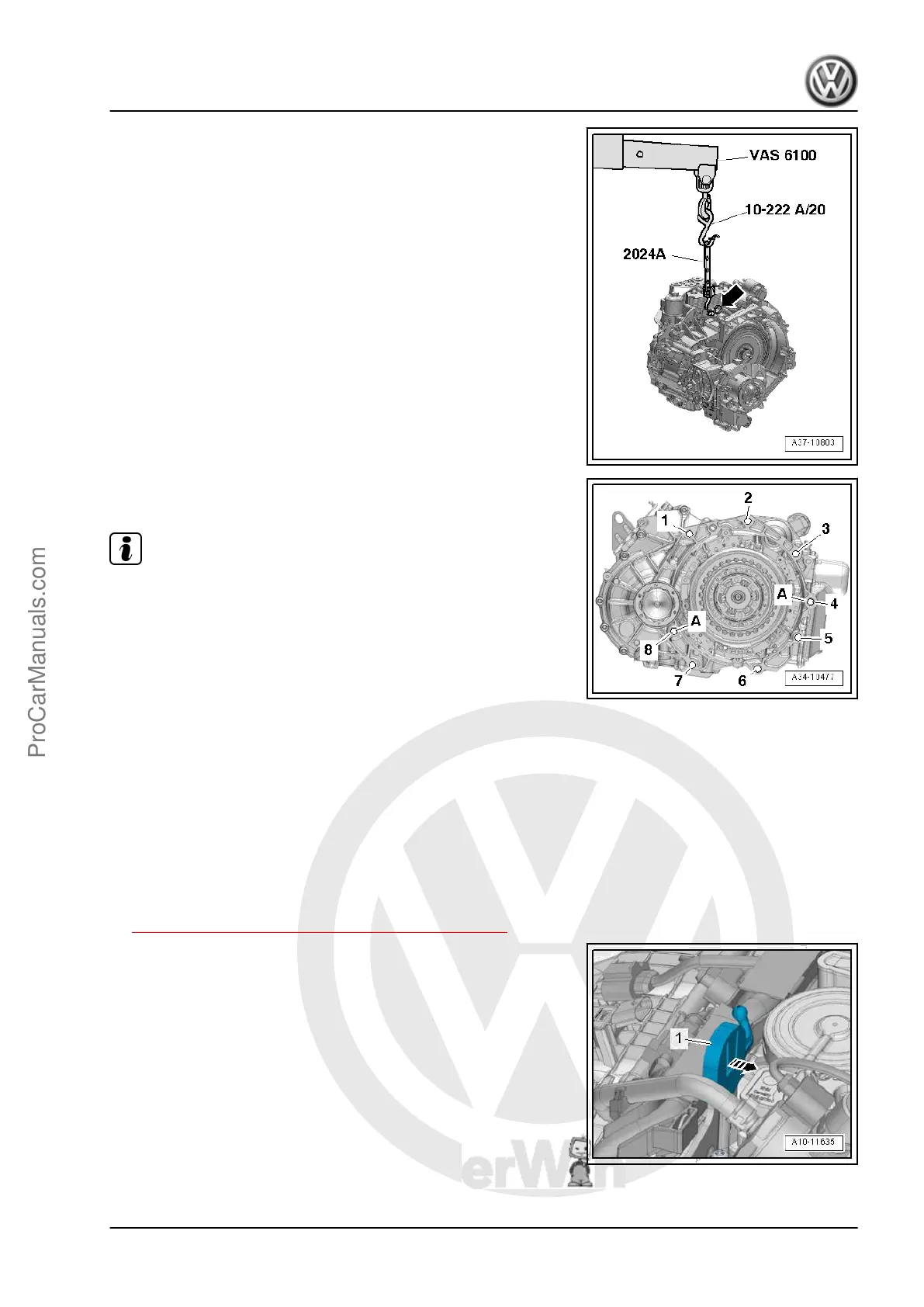

– Attach the Engine Sling - 2024A- hooks to the transmission
lifting eyes and secure it with the securing pin -arrow-.
– Hook the Shop Crane - VAS6100- with the Engine Support
Bridge - Special Hook (2 pc.) - 10-222A/20- on the Engine
Sling - Engine Bracket - 2024A/1- .
– Remove the bolts -1 to 8- for the transmission/engine connec‐
tion.
Note
Ignore item -A-.
– Remove the transmission from the engine.
1.3 Engine, Securing on Engine and Trans‐
mission Holder
Special tools and workshop equipment required
♦ Engine Sling - 2024A-
♦ Shop Crane - VAS6100-
♦ Engine And Transmission Holder - VAS6095-
Procedure
• The transmission is separated from the engine. Refer to
⇒ 1.2 Engine and Transmission, Separating, page 19 .
– Unlock the retaining tab in direction of -arrow-, remove the left
engine cover mount -1-.
Golf 2015 ➤ , Golf Variant 2015 ➤
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
1. Engine, Removing and Installing 23
