2.3 Mechanical Switch Valve, Removing
and Installing
Removing
Caution
This procedure contains mandatory replaceable parts. Refer
to component overview prior to starting procedure.
Mandatory Replacement Parts
♦ O-rings - Mechanical Switch Valve
– Remove the oil cooler. Refer to
⇒ 2.2 Engine Oil Cooler, Removing and Installing,
page 192 .

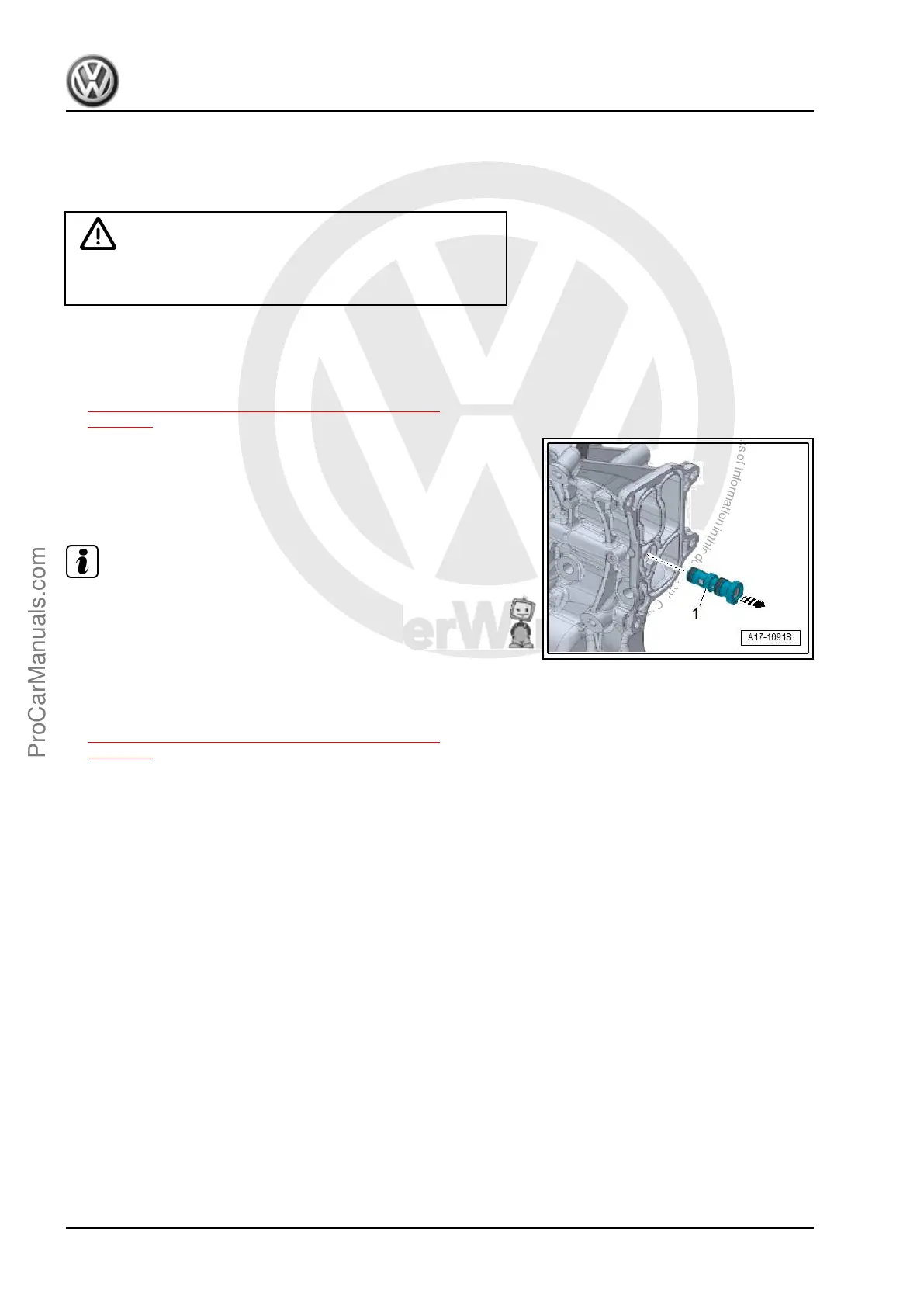

– Remove the mechanical switch valve -1- from the auxiliary
components bracket in direction of -arrow-.
Installing
Install in reverse order of removal. Note the following:
Note
♦
Always replace gaskets O-rings and seals.
♦ Secure hose connections with standard production clamps.
Refer to the Parts Catalog.
– Coat the mechanical switch valve O-rings with engine oil and
install the switch valve.
– Install the engine oil cooler. Refer to
⇒ 2.2 Engine Oil Cooler, Removing and Installing,
page 192 .
Golf 2015 ➤ , Golf Variant 2015 ➤
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
194 Rep. Gr.17 - Lubrication
