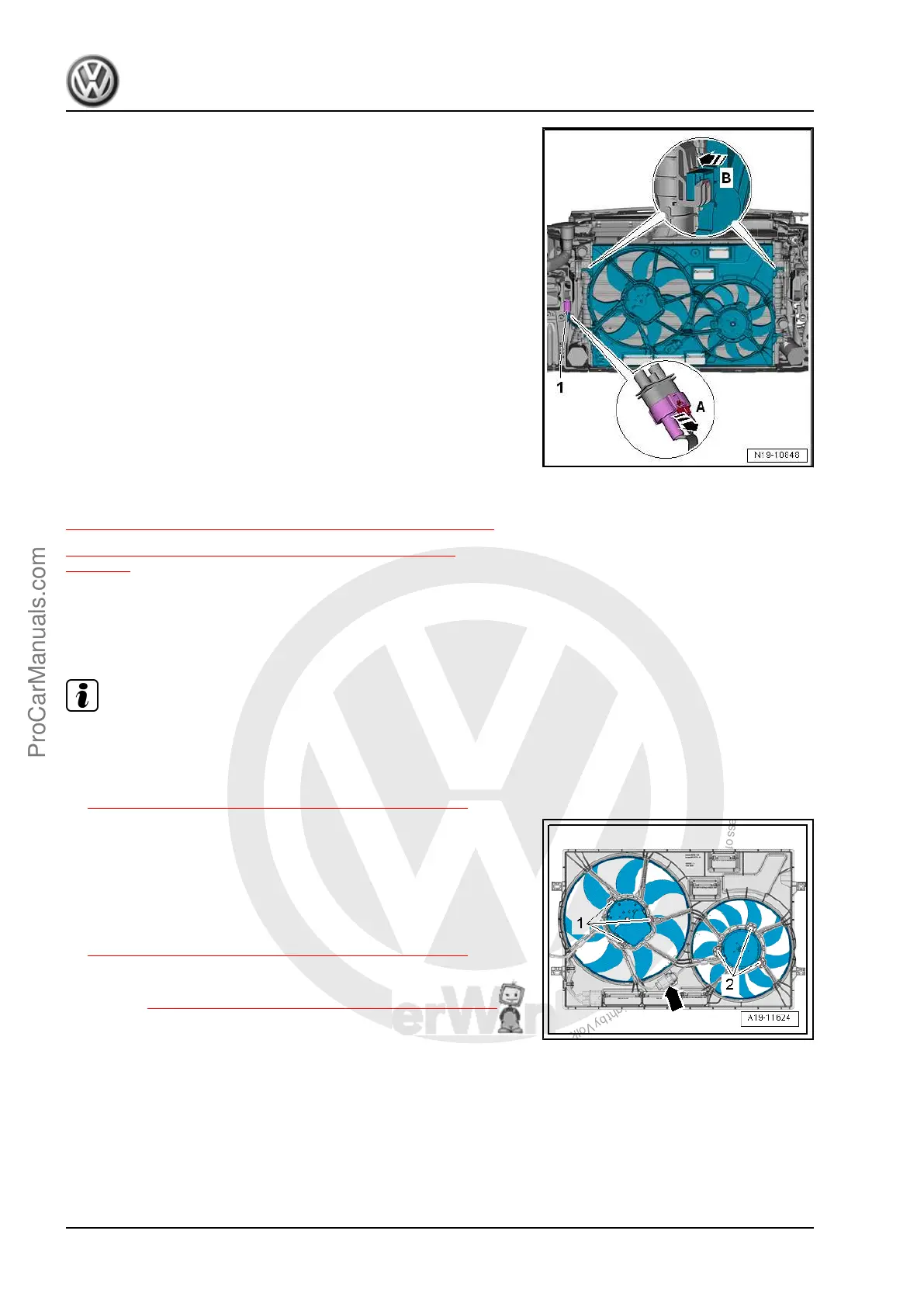

– Disconnect the radiator fan connector -1-. To do this push the
securing device -A- in the direction of -arrow A- and push the
release downward.
– Push the left and right locking latches for the fan shroud at the
same time in the direction of -arrow B- and remove the fan
shroud upward from the radiator and remove from underneath.
Installing
Install in reverse order of removal.
Tightening Specifications
♦ Refer to ⇒ Body Exterior; Rep. Gr. 66 ; Noise Insulation;
Overview - Noise Insulation .
4.6 Coolant Fan, Removing and Installing
⇒ 4.6.1 Coolant Fan V7 , Removing and Installing, page 250
⇒ 4.6.2 Coolant Fan 2 V177 , Removing and Installing,
page 251
4.6.1 Coolant Fan - V7- , Removing and In‐
stalling
Removing
Note
During installation, all cable ties must be installed at the same
location.
– Remove the fan shroud. Refer to
⇒ 4.5 Fan Shroud, Removing and Installing, page 249 .
– Disconnect the connector -arrow-.
– Remove the bolts -1-, and the Coolant Fan - V7- .
Installing
Install in reverse order of removal. Note the following:
– Install the fan shroud. Refer to
⇒ 4.5 Fan Shroud, Removing and Installing, page 249 .
Tightening Specifications
♦ Refer to ⇒ 4.1 Overview - Radiator/Coolant Fan, page 244 .
Golf 2015 ➤ , Golf Variant 2015 ➤
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
250 Rep. Gr.19 - Cooling System
