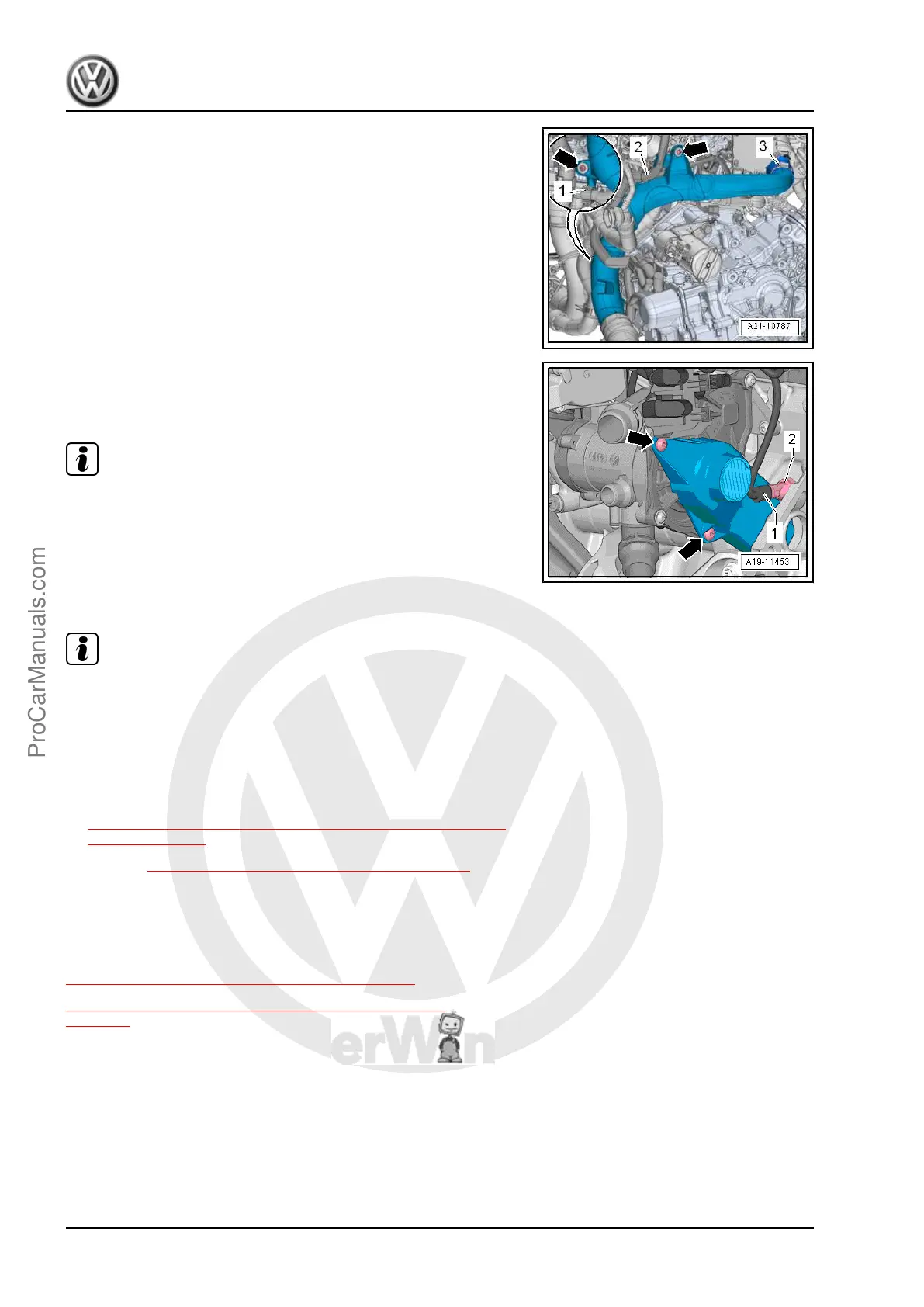

– Remove the bolts -arrows-, loosen the screw-type clamp and
remove the air guide pipe.
– Disconnect the connector -1- from the Oil Pressure Switch,
Level 3 - F447- .
– Remove the bolts -arrows- and remove the toothed belt cover.
Note
Place a cleaning cloth underneath, to catch oil leaking out.
– Remove the Oil Pressure Switch, Level 3 - F447- -2- using the
Socket and Jointed Extension - 24mm - T40175- .
Installing
Install in reverse order of removal. Note the following:
Note
To prevent coolant loss, install the Oil Pressure Switch, Level 3 -
F447- in the hole immediately.
– Check the oil level. Refer to ⇒ Maintenance ; Booklet 36.1 ;
Procedure Descriptions; Engine Oil Level, Checking .
Tightening Specifications
♦ Refer to
⇒ 4.2 Overview - Oil Pressure Switch/Oil Pressure Regulator
Valve, page 198 .
♦ Refer to ⇒ 3.1 Overview - Air Filter Housing, page 293 .
♦ Refer to ⇒ Body Exterior; Rep. Gr. 66 ; Noise Insulation;
Overview - Noise Insulation .
4.6 Oil Pressure, Checking
⇒ 4.6.1 Engine Oil Pressure, Checking, page 202 .
⇒ 4.6.2 Piston Spray Nozzles Oil Pressure, Checking,
page 204 .
4.6.1 Engine Oil Pressure, Checking
Special tools and workshop equipment required
♦ Oil Pressure Gauge Kit - VAG1342-
♦ Socket and Jointed Extension - 24mm - T40175-
Test Prerequisites
• Oil level OK
Golf 2015 ➤ , Golf Variant 2015 ➤
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
202 Rep. Gr.17 - Lubrication
