– Start engine and check whether ribbed belt runs correctly.
Tightening Specifications
♦ Refer to ⇒ Body Exterior; Rep. Gr. 66 ; Noise Insulation;
Overview - Noise Insulation .
1.3 Ribbed Belt Tensioner, Removing and
Installing
Caution
This procedure contains mandatory replaceable parts. Refer
to component overview prior to starting procedure.
Mandatory Replacement Parts
♦ Bolts - Ribbed Belt Tensioner
Removing
– Remove the ribbed belt from the tensioner. Refer to
⇒ 1.2 Ribbed Belt, Removing and Installing, page 46 .

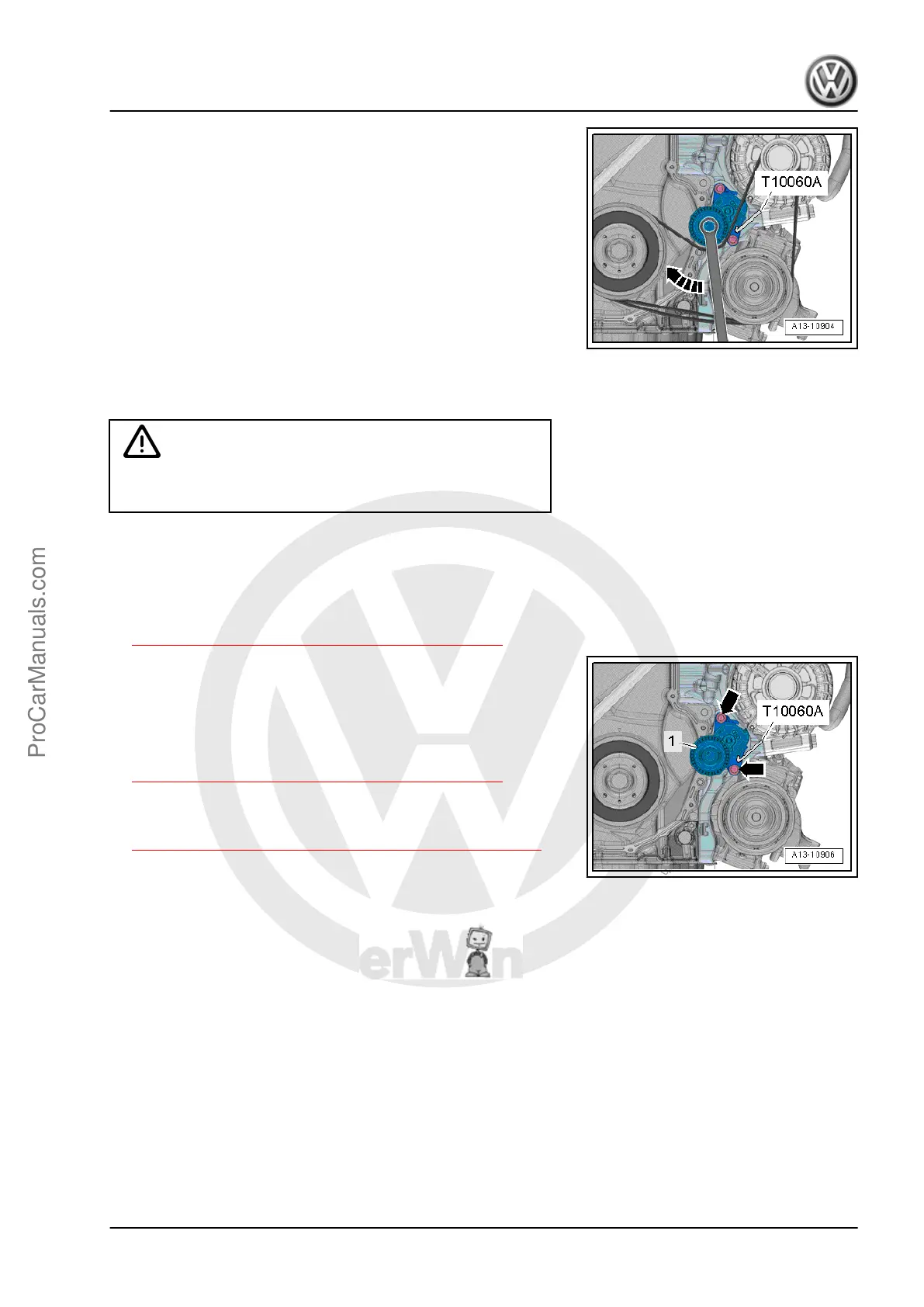

– Remove the bolts -arrows- and pull the ribbed belt tensioning
damper -1- off the sub-assembly bracket.
Installing
Install in reverse order of removal. Note the following:
– Install the ribbed belt. Refer to
⇒ 1.2 Ribbed Belt, Removing and Installing, page 46 .
Tightening Specifications
♦ Refer to
⇒ 1.1 Overview - Cylinder Block, Belt Pulley Side, page 44 .
1.4 Vibration Damper, Removing and Instal‐
ling
Special tools and workshop equipment required
♦ Counterhold - Vibration Damper - T10355-
♦ Locking Pin - T10060A-
♦ Assembly Tool - T10531-
Individual components of the Assembly Tool - T10531- :
♦ Counterhold Tool - T10531/1-
♦ Tensioning Pins - T10531/2-
♦ Turning Over Tool - T10531/3-
♦ Collar Nut - T10531/4-
Golf 2015 ➤ , Golf Variant 2015 ➤
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
1. Cylinder Block, Belt Pulley Side 47
