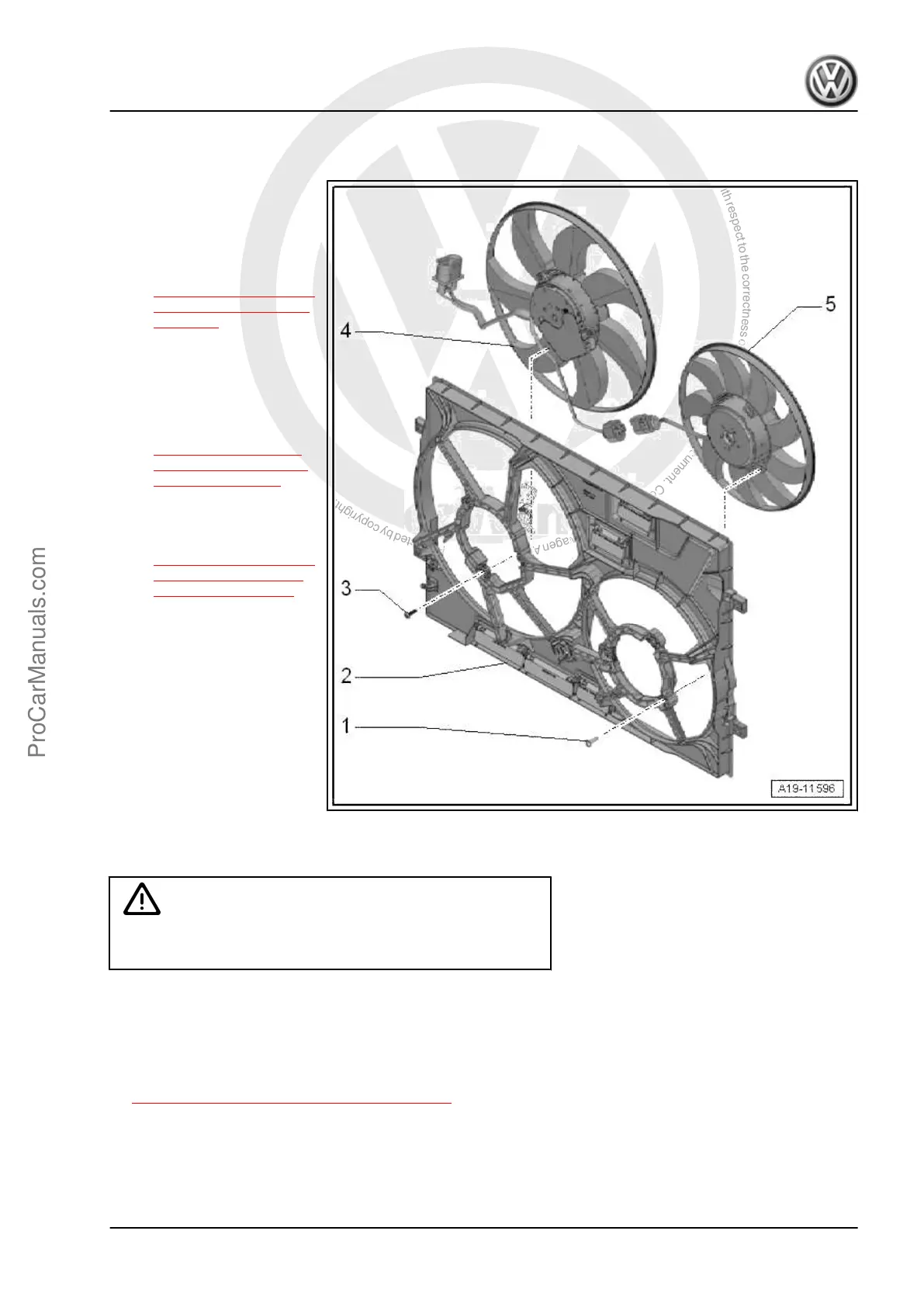

4.3 Overview - Fan Shroud and Radiator Fan
1 - Bolt
❑ 5 Nm
2 - Fan Shroud
❑ Removing and instal‐
ling. Refer to
⇒ 4.5 Fan Shroud, Re‐
moving and Installing,
page 249 .
3 - Bolt
❑ 5 Nm
4 - Coolant Fan - V7-
❑ Removing and instal‐
ling. Refer to
⇒ 4.6.1 Coolant Fan
V7 , Removing and In‐
stalling, page 250 .
5 - Coolant Fan 2 - V177-
❑ Removing and instal‐
ling. Refer to
⇒ 4.6.2 Coolant Fan 2
V177 , Removing and
Installing, page 251 .
4.4 Radiator, Removing and Installing
Caution
This procedure contains mandatory replaceable parts. Refer
to component overview prior to starting procedure.
Mandatory Replacement Parts
♦ O-rings - Radiator
Removing
– Drain the coolant. Refer to
⇒ 1.3 Coolant, Draining and Filling, page 217 .
Golf 2015 ➤ , Golf Variant 2015 ➤
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
4. Radiator/Coolant Fan 247
