2 Subframe Mount
⇒ 2.1 Overview - Subframe Mount, page 29
⇒ 2.2 Engine Mount, Removing and Installing, page 30
⇒ 2.3 Transmission Mount, Removing and Installing,
page 31
⇒ 2.4 Pendulum Support, Removing and Installing, page 33
⇒ 2.5 Engine, Supporting in Installed Position, page 33
⇒ 2.6 Subframe Mount, Adjusting, page 36
⇒ 2.7 Subframe Mount, Checking Adjustment, page 37

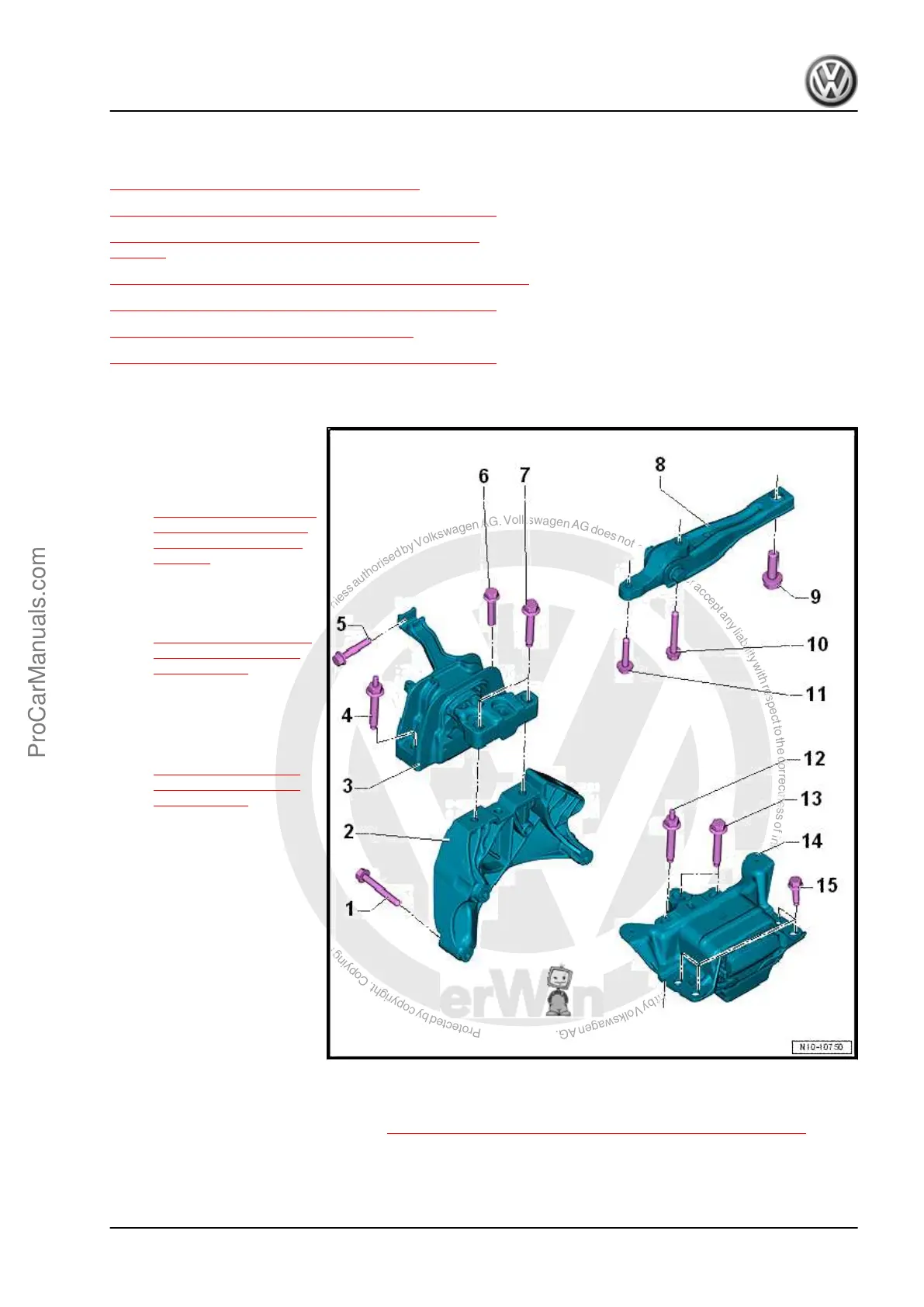

2.1 Overview - Subframe Mount
1 - Bolt
❑ Replace after removing
❑ Tightening specification
and sequence. Refer to
⇒ Fig. Engine Support
- Tightening Specifica‐
tion and Sequence ,
page 56 .
2 - Engine Support
❑ Removing and instal‐
ling. Refer to
⇒ 1.6 Engine Support,
Removing and Instal‐
ling, page 55 .
3 - Engine Mount
❑ With support arm
❑ Removing and instal‐
ling. Refer to
⇒ 2.2 Engine Mount,
Removing and Instal‐
ling, page 30 .
4 - Bolt
❑ 40 Nm + 90° turn
❑ Replace after removing
5 - Bolt
❑ 20 Nm + 90° turn
❑ Replace after removing
6 - Bolt
❑ 40 Nm + 90° turn
❑ Replace after removing
7 - Bolt
❑ 60 Nm +90° turn
❑ Replace after removing
8 - Pendulum Support
❑ Removing and installing. Refer to ⇒ 2.4 Pendulum Support, Removing and Installing, page 33 .
9 - Bolt
❑ Replace after removing
Golf 2015 ➤ , Golf Variant 2015 ➤
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
2. Subframe Mount 29
