4 Intake Manifold
⇒ 4.1 Overview - Intake Manifold, page 296 .
⇒ 4.2 Overview - Intake Manifold Lower Section with Fuel Rail,
page 300
⇒ 4.3 Intake Manifold, Removing and Installing, page 304 .
⇒ 4.4 Fuel Rail, Removing and Installing, Direct Fuel Injection,
page 309 .
⇒ 4.5 Throttle Valve Control Module GX3 , Removing and In‐
stalling, page 309 .
⇒ 4.6 Throttle Valve Control Module, Cleaning, page 311 .
4.1 Overview - Intake Manifold
⇒ 4.1.1 Overview - Intake Manifold, without Intake-Manifold Fuel
Injection, page 296 .

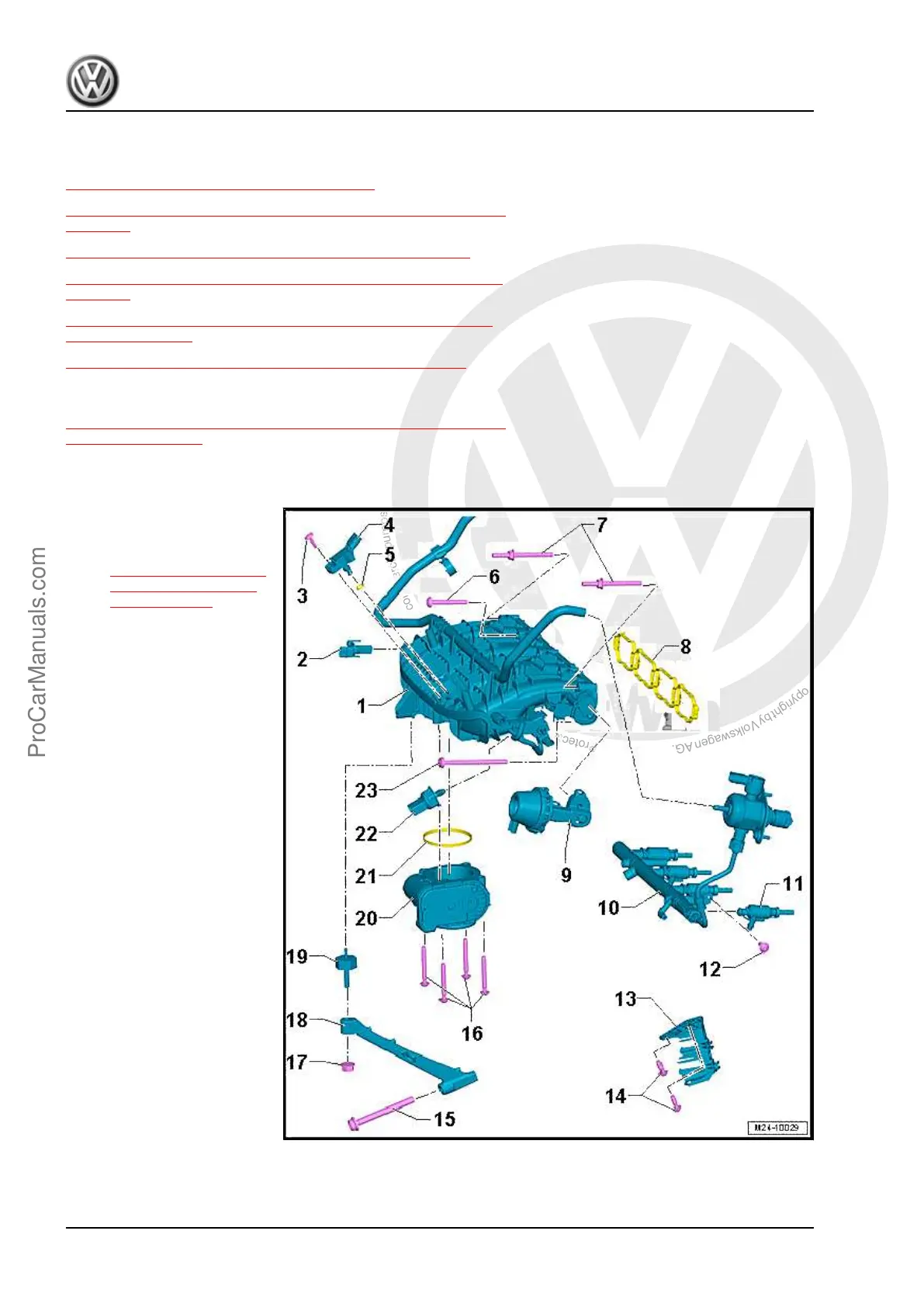

4.1.1 Overview - Intake Manifold, without Intake-Manifold Fuel Injection
1 - Intake Manifold
❑ Removing and instal‐
ling. Refer to
⇒ 4.3 Intake Manifold,
Removing and Instal‐
ling, page 304 .
2 - Intake Manifold Runner Po‐
sition Sensor - G336-
❑ The Intake Manifold
Runner Position Sensor
- G336- needs to be
adapted to the Engine
Control Module - J623-
each time the sensor is
removed and installed
or replaced. See Gui‐
ded Functions; to do
so, use a Vehicle Diag‐
nostic Tester .
3 - Bolt
❑ 5 Nm
❑ Intake Air Temperature
Golf 2015 ➤ , Golf Variant 2015 ➤
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
296 Rep. Gr.24 - Multiport Fuel Injection
