1.3 Charge Pressure Actuator - V465- , Ad‐
justing
Special tools and workshop equipment required
♦ Mini Torque Wrench - VAS6854-
♦ Vehicle Diagnostic Tester
Removing
Note
Ignore item -4-.

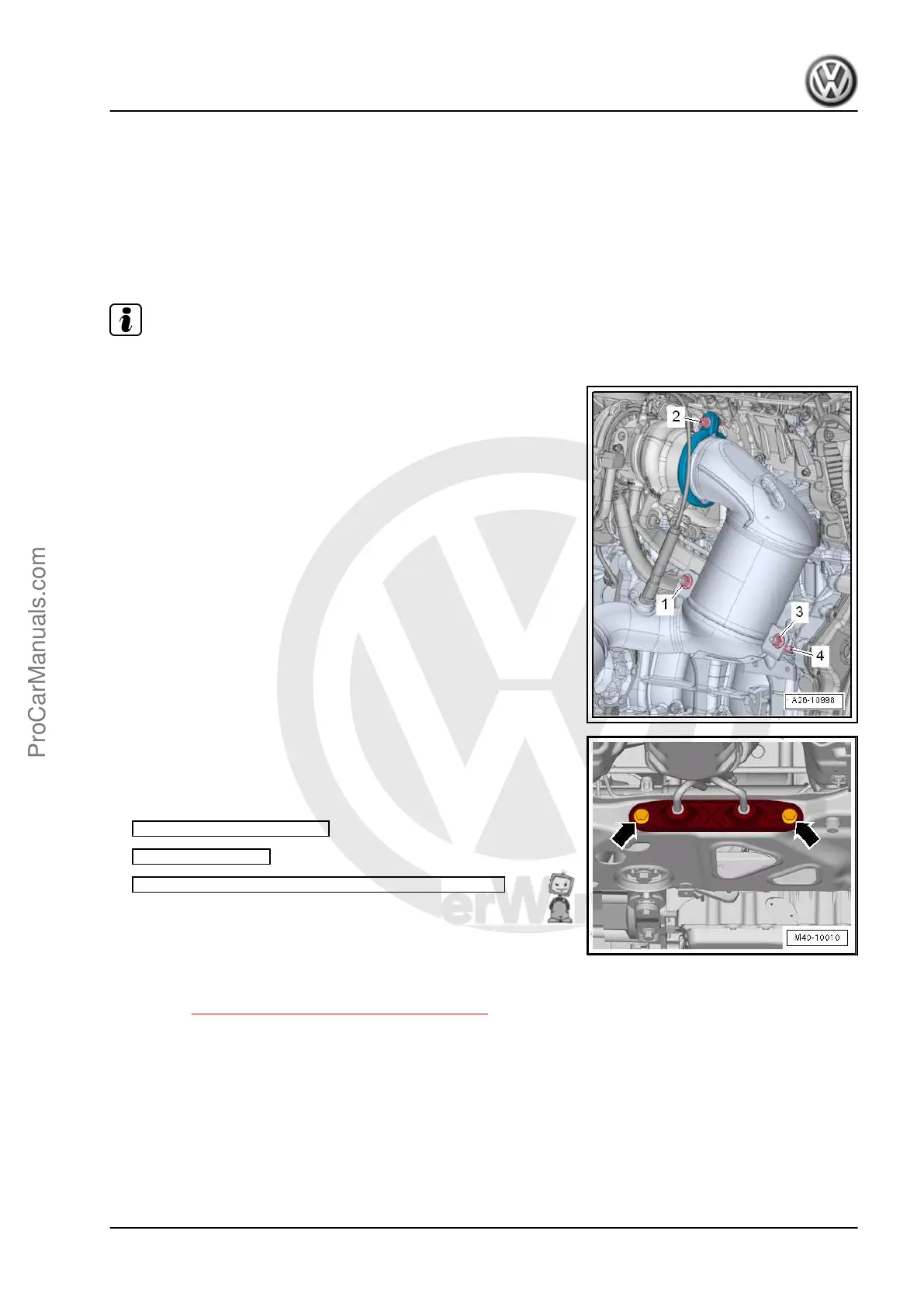

– Remove the bolt -2- and the screw-type clamp.
– Remove the noise insulation. Refer to ⇒ Body Exterior; Rep.
Gr. 66 ; Noise Insulation; Overview - Noise Insulation .
– Remove the nuts -1 and 3-.
– Remove bolts -arrows- and set the catalytic converter slightly
aside.
– Turn on the ignition and select the following menu items on the
Vehicle Diagnostic Tester :
♦ 01 - Engine Electronics
♦ Guided Functions
♦ 01 - Charge Pressure Actuator V465 Adjusting
– Adjust the charge pressure actuator linkage to the instructions
in the Vehicle Diagnostic Tester .
– Tighten the lock nut with the Mini Torque Wrench - VAS6854- .
Tightening Specifications
♦ Refer to ⇒ 1.1 Overview - Turbocharger, page 256 .
Golf 2015 ➤ , Golf Variant 2015 ➤
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
1. Turbocharger 263
