21 – Turbocharger, Supercharger
1 Turbocharger
⇒ 1.1 Overview - Turbocharger, page 256 .
⇒ 1.2 Turbocharger, Removing and Installing, page 258 .
⇒ 1.3 Charge Pressure Actuator V465 , Adjusting, page 263 .
1.1 Overview - Turbocharger
Overview - Turbocharger, Part I. Refer to ⇒ page 256 .
Overview - Turbocharger, Part II. Refer to ⇒ page 257 .

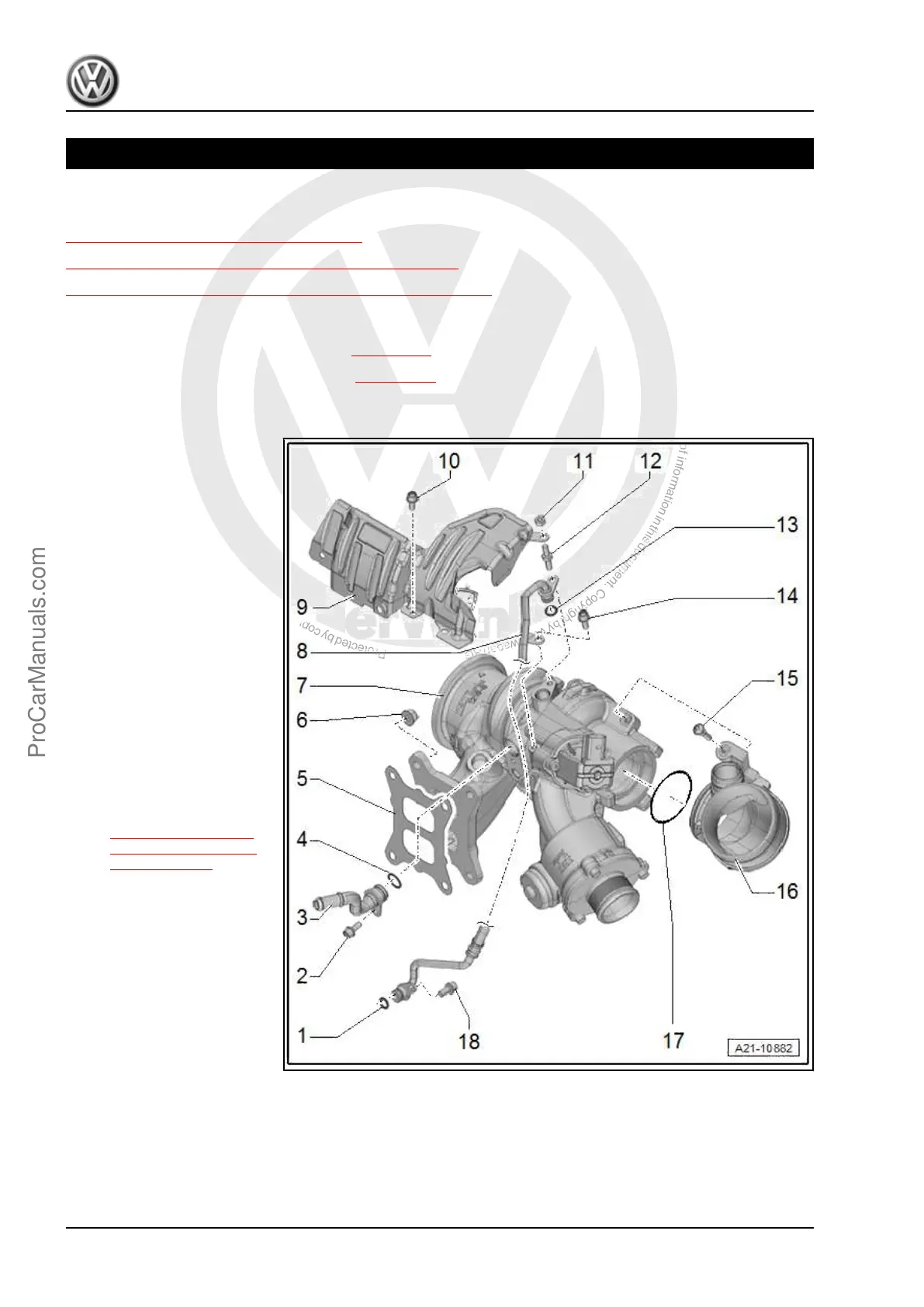

Overview - Turbocharger, Part I
1 - O-Ring
❑ Replace after removing
❑ Coat with engine oil
2 - Bolt
❑ 9 Nm
3 - Coolant Supply Line
4 - O-Ring
❑ Replace after removing
❑ Coat with coolant
5 - Seal
❑ Replace after removing
6 - Nut
❑ 25 Nm
❑ Replace after removing
7 - Turbocharger
❑ Removing and instal‐
ling. Refer to
⇒ 1.2 Turbocharger,
Removing and Instal‐
ling, page 258 .
8 - Oil Supply Line
9 - Heat Shield
10 - Bolt
❑ 9 Nm
11 - Nut
❑ 9 Nm
12 - Bolt
❑ 9 Nm
13 - O-Ring
❑ Replace after removing
❑ Coat with engine oil
14 - Bolt
❑ 9 Nm
Golf 2015 ➤ , Golf Variant 2015 ➤
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
256 Rep. Gr.21 - Turbocharger, Supercharger
