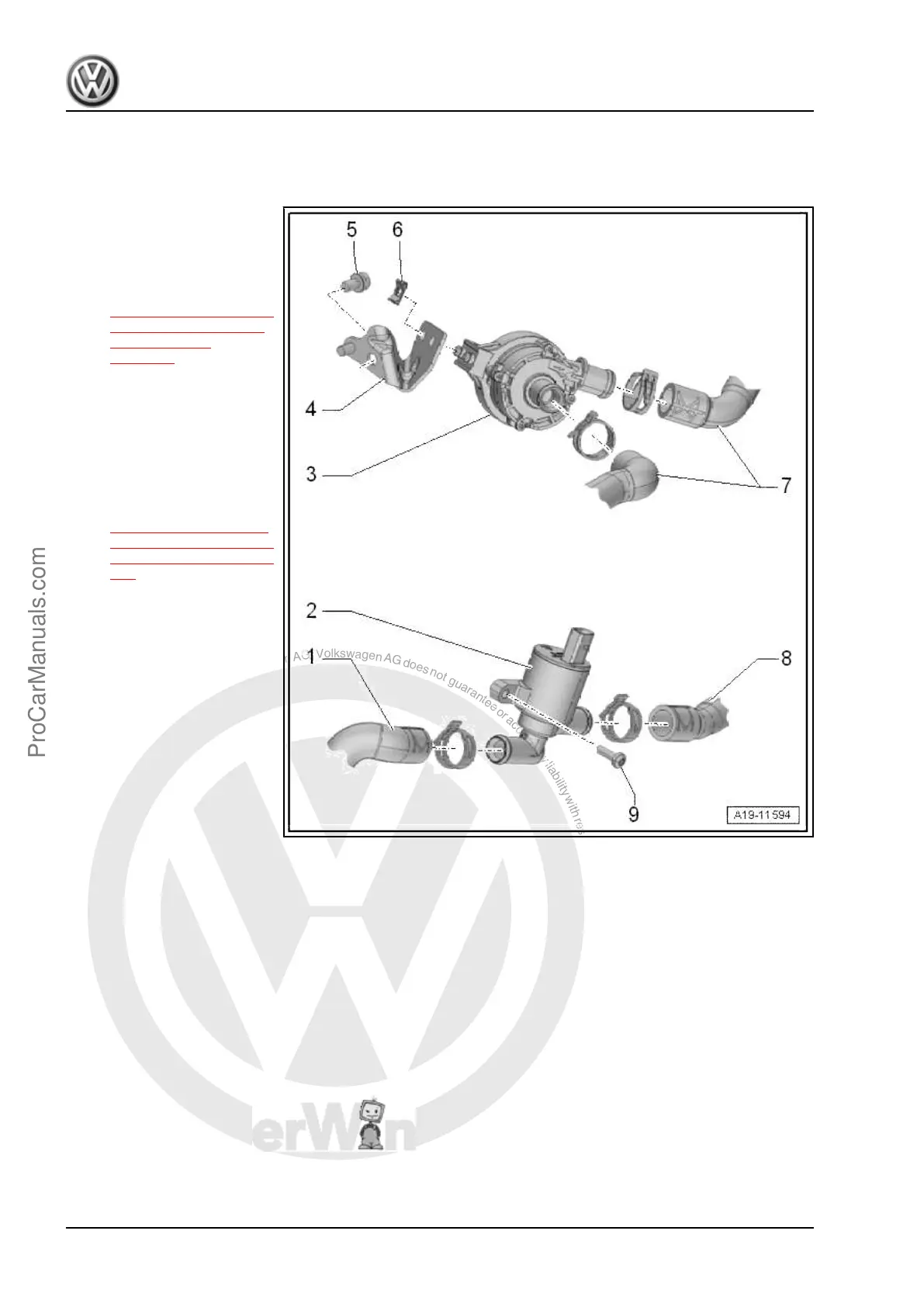

2.2 Overview - Electric Coolant Pump
After-Run Coolant Pump - V51- , Coolant Shut-Off Valve - N82-
1 - Coolant Hose
2 - Coolant Shut-Off Valve -
N82-
❑ Removing and instal‐
ling. Refer to
⇒ 2.5 Coolant Shut-Off
Valve N82 , Removing
and Installing,
page 230 .
3 - After-Run Coolant Pump -
V51-
❑ With bracket
❑ Depending on the ver‐
sion there can be slight
differences.
❑ Removing and instal‐
ling. Refer to
⇒ 2.4 After-Run Cool‐
ant Pump V51 , Remov‐
ing and Installing, page
228 .
4 - Bracket
❑ For After-Run Coolant
Pump - V51-
5 - Bolt
❑ 20 Nm
6 - Clamp
7 - Coolant Hoses
8 - Coolant Hose
9 - Bolt
❑ 9 Nm
Transmission Coolant Valve - N488- , Vehicles with DSG
®
Trans‐
mission
Golf 2015 ➤ , Golf Variant 2015 ➤
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
226 Rep. Gr.19 - Cooling System
