12 - Bolt
❑ Tightening specification and sequence. Refer to
⇒ Fig. Vacuum Pump - Tightening Specifications , page 94 .
13 - Seal
❑ Replace after removing
14 - Vacuum Pump
❑ Removing and installing. Refer to ⇒ 1.4 Vacuum Pump, Removing and Installing, page 100 .
15 - Bolt
❑ Tightening specification. Refer to ⇒ Fig. Vacuum Pump - Tightening Specifications , page 94 .
16 - Seal
❑ Replace after removing
17 - O-Ring
❑ Replace after removing
❑ Coat with engine oil
18 - Camshaft Position Sensor - G40-
❑ Overview. Refer to ⇒ 1.1 Overview - Ignition System, page 356 .
19 - Bolt
❑ Tightening specification. Refer to ⇒ 1.1 Overview - Ignition System, page 356 .
20 - Bolt
❑ 9 Nm
21 - Bracket
❑ For EVAP Canister Purge Regulator Valve 1 - N80-

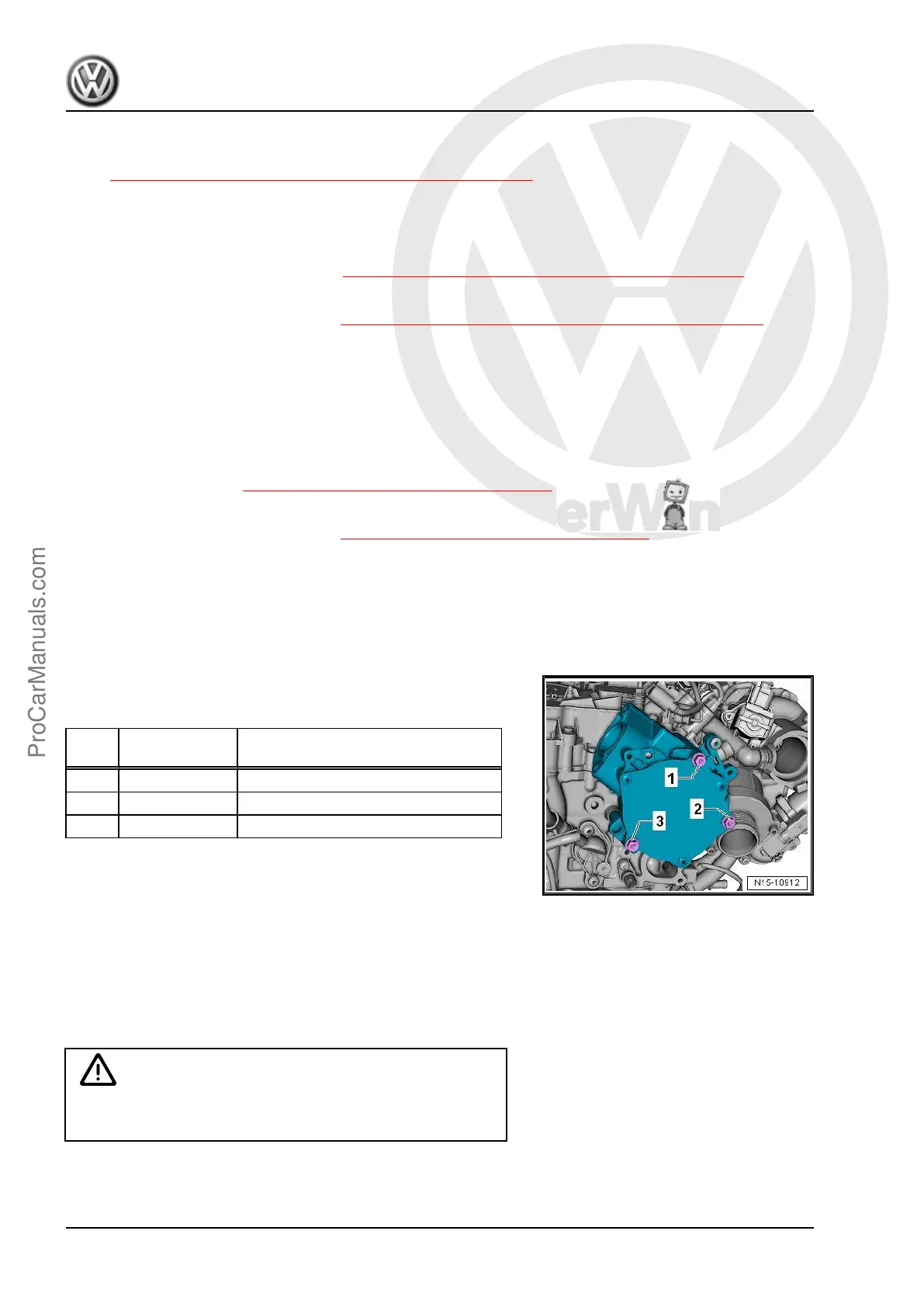

Vacuum Pump - Tightening Specifications
Tighten with a new bolts as follows:
Step Bolts Tightening Specification/Additional
Turn
1. -1- through -3- Install hand-tight
2. -1- through -3- 8 Nm
3. -1- through -3- 180° additional turn
1.3 Cylinder Head, Removing and Installing
Special tools and workshop equipment required
♦ Engine Bung Set - VAS6122-
♦ Engine Support Bridge - 10-222A-
Removing
Caution
This procedure contains mandatory replaceable parts. Refer
to component overview prior to starting procedure.
Mandatory Replacement Parts
♦ Nuts - Turbocharger to Engine
Golf 2015 ➤ , Golf Variant 2015 ➤
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
94 Rep. Gr.15 - Cylinder Head, Valvetrain
