3 Crankcase Housing Ventilation
⇒ 3.1 Overview - Crankcase Ventilation, page 195 .
⇒ 3.2 Oil Separator, Removing and Installing, page 196 .

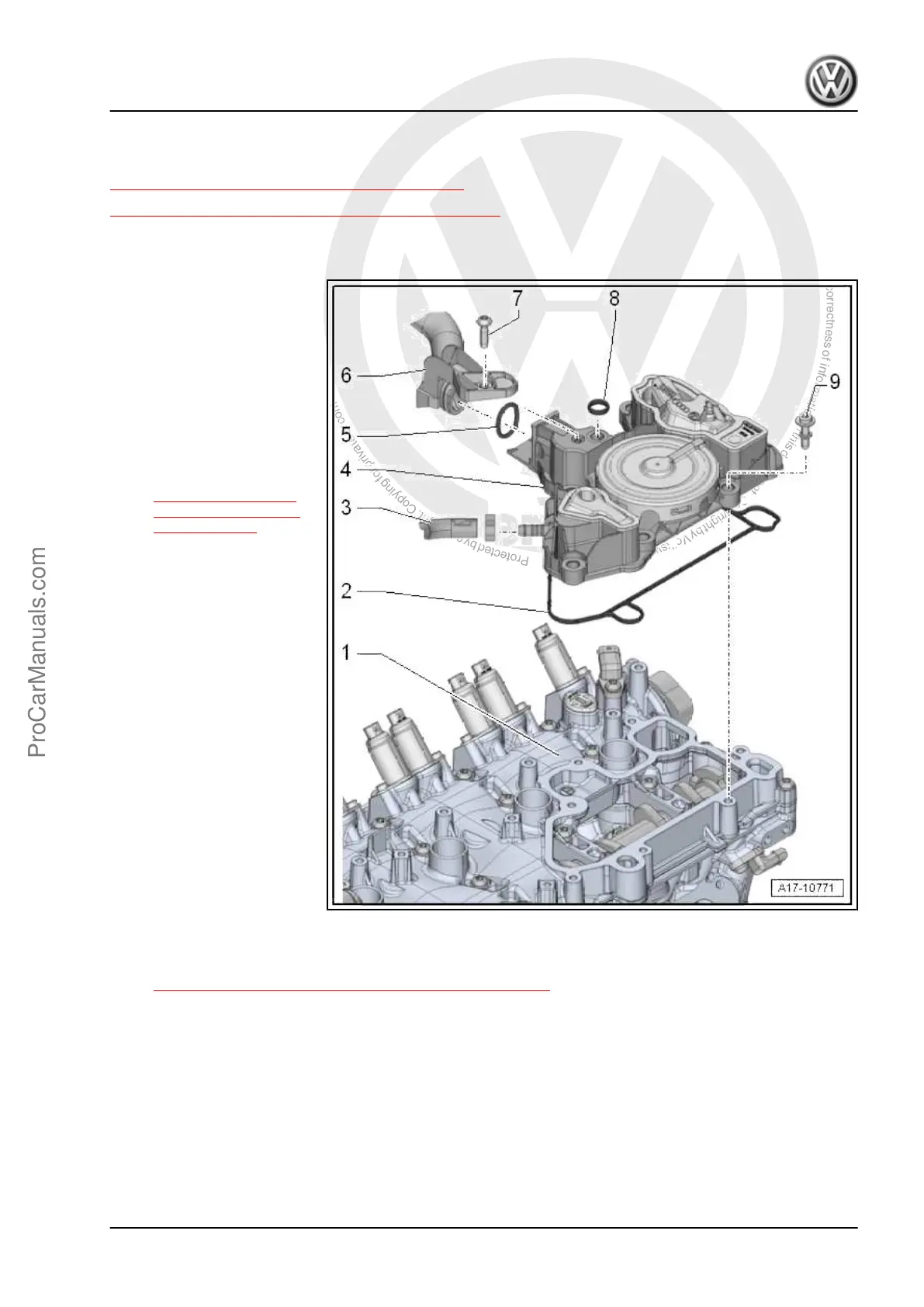

3.1 Overview - Crankcase Ventilation
1 - Cylinder Head Cover
2 - Seal
❑ Replace after removing
3 - Hose
❑ To EVAP Canister
Purge Regulator Valve
1 - N80-
4 - Oil Separator
❑ Removing and instal‐
ling. Refer to
⇒ 3.2 Oil Separator,
Removing and Instal‐
ling, page 196 .
5 - Seal
❑ Replace after removing
6 - Hose
❑ For the crankcase ven‐
tilation
❑ To turbocharger
7 - Bolt
❑ 4 Nm
❑ Self-tapping
❑ Position the bolt by hand
and tighten it until it finds
the old threads. Then
tighten the bolt to the
specification.
8 - Seal
❑ Replace after removing
9 - Bolt
❑ Self-tapping
❑ Position the bolt by hand and tighten it until it finds the old threads. Then tighten the bolt to the specifi‐
cation.
❑ Tightening specification and sequence. Refer to
⇒ Fig. Oil Separator - Tightening Sequence , page 196 .
Golf 2015 ➤ , Golf Variant 2015 ➤
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
3. Crankcase Housing Ventilation 195
