12 - Oil Pressure Switch, Level 3 - F447-
❑ 20 Nm
❑ Checking. Refer to Vehicle Diagnostic Tester
❑ Removing and installing. Refer to
⇒ 4.5 Oil Pressure Switch, Level 3 F447 , Removing and Installing, page 201 .
❑ Installed position. Refer to ⇒ Fig.  Oil Pressure Switch, Level 3 -F447- Installed Position , page 199

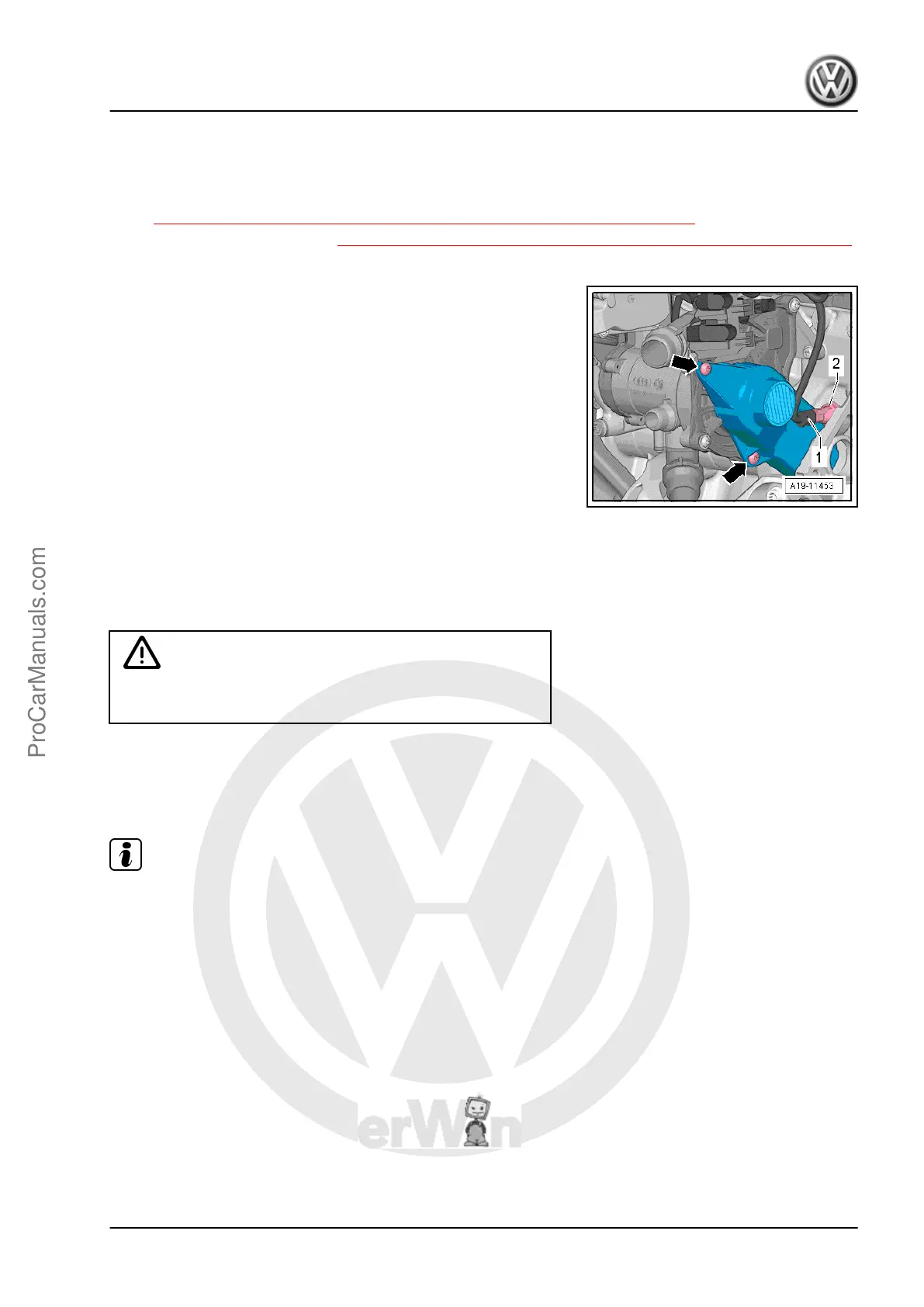

Oil Pressure Switch, Level 3 - F447- Installed Position
4.3 Oil Pressure Switch - F1- , Removing
and Installing
Special tools and workshop equipment required
♦ Socket and Jointed Extension - 24mm - T40175-
Caution
This procedure contains mandatory replaceable parts. Refer
to component overview prior to starting procedure.
Mandatory Replacement Parts
♦ Seal - Oil Pressure Switch
Removing
Note
♦
Place a cloth under the accessory assembly bracket to collect
leaking engine oil.
♦ Replace the seal after each time the oil pressure switch is
loosened.
– Disconnect the connector -arrow- from the Oil Pressure Switch
- F1- .
Golf 2015 ➤ , Golf Variant 2015 ➤
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
4. Oil Filter/Oil Pressure Switch 199
