2.4 Pendulum Support, Removing and In‐
stalling
Removing
Caution
This procedure contains mandatory replaceable parts. Refer
to component overview prior to starting procedure.
Mandatory Replacement Parts
♦ Bolts - Pendulum Support
– Remove the noise insulation. Refer to ⇒ Body Exterior; Rep.
Gr. 66 ; Noise Insulation; Overview - Noise Insulation .

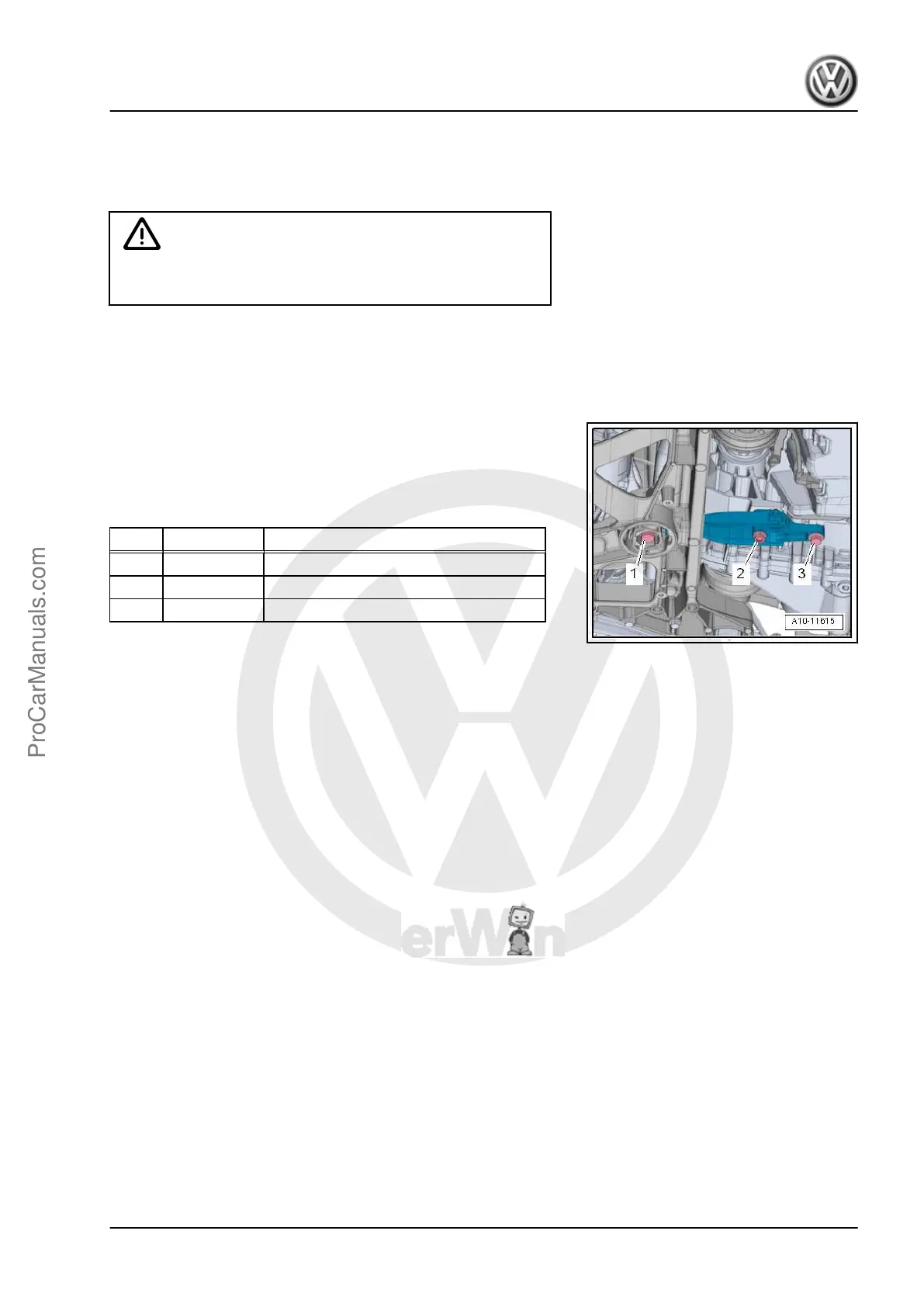

– Remove the bolts -1, 2 and 3- and remove pendulum support.
Installing
Install in reverse order of removal. Note the following:
Tightening Specifications
Step Bolts Tightening Specification/Additional Turn
1. -2 and 3- 50 Nm
2. -1- 130 Nm
3. -1 to 3- Turn an additional 90°
♦ Refer to ⇒ Body Exterior; Rep. Gr. 66 ; Noise Insulation;
Overview - Noise Insulation .
2.5 Engine, Supporting in Installed Position
Special tools and workshop equipment required
♦ Engine Support Bridge - 10-222A-
♦ Engine Support Bridge - Engine Support 18 - 10-222A/18-
♦ Engine Support Bridge - Engine Support 29 - 10-222A/29-
♦ Engine Support - Basic Set Square Pipe - T40091/1- and En‐
gine Support - Movable Joint - T40091/3- from the Engine
Support - Basic Set - T40091-
♦ Engine Support Brackets - T40093/3- and Engine Support
Brackets - T40091/3-6- from the Engine Support - Supplement
Kit - T40093A-
♦ Engine Support Bridge - Special Hook (2 pc.) - 10-222A/20-
♦ Engine/Gearbox Support Shackle (2 pc.) - 10-222A/12-
Golf 2015 ➤ , Golf Variant 2015 ➤
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
2. Subframe Mount 33
