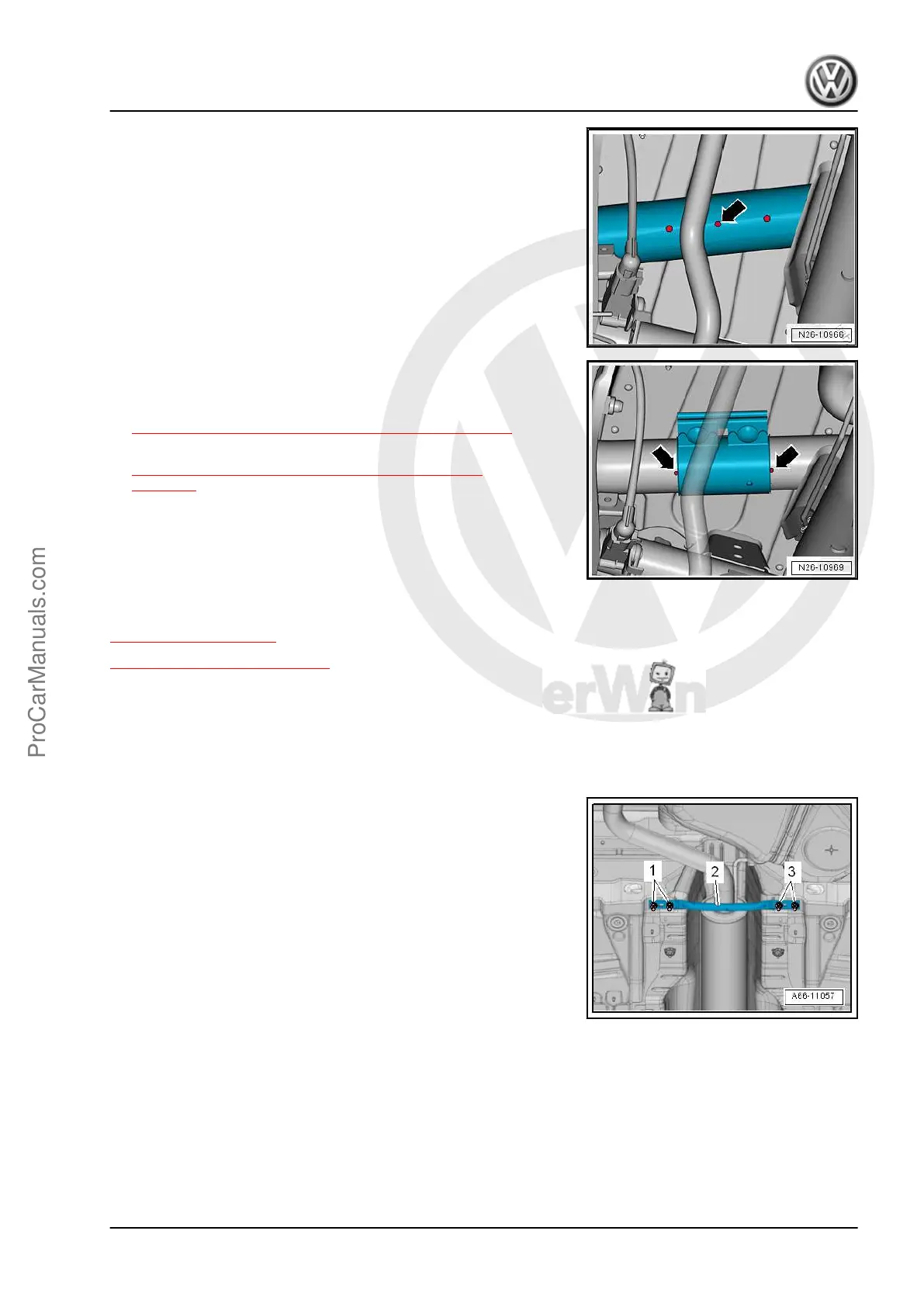

Procedure
– Separate the exhaust pipe at a right angle at the separating
point -arrow- using a Chain Pipe Cutter - VAS6254- .
– When installing, position the clamping sleeve central to the
side markings -arrows-.
– Install the rear clamping sleeve. Refer to
⇒ 1.6 Clamping Sleeve Installation Position, page 347 .
– Install the exhaust system free of tension. Refer to
⇒ 1.4 Exhaust System, Installing without Tension,
page 345 .
1.3 Muffler, Removing and Installing
⇒ 1.3.1 Golf, page 343
⇒ 1.3.2 Golf Wagon, page 344
1.3.1 Golf
Removing
– If equipped, remove the left rear underbody panel. Refer to ⇒
Body Exterior; Rep. Gr. 66 ; Underbody Panel; Overview -
Underbody Panels .
– Remove the rear tunnel brace -2-. Refer to ⇒ Body Exterior;
Rep. Gr. 66 ; Underbody Panel; Overview - Underbody Pan‐
els .
Golf 2015 ➤ , Golf Variant 2015 ➤
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
1. Exhaust Pipes/Mufflers 343
