3 Crankshaft
⇒ 3.1 Overview - Crankshaft, page 62
⇒ 3.2 Crankshaft Dimensions, page 64
⇒ 3.3 Main Bearing Shells Allocation, page 64
⇒ 3.4 Crankshaft Needle Bearing, Replacing, page 65
⇒ 3.5 Crankshaft, Measuring Axial Clearance, page 67
⇒ 3.6 Crankshaft, Measuring Radial Clearance, page 67
⇒ 3.7 Sensor Wheel, Removing and Installing, page 68
3.1 Overview - Crankshaft
Note
Secure the engine to the assembly stand using the Engine and
Gearbox Bracket - VAS6095A- when performing the assembly
work. Refer to
⇒ 1.3 Engine, Securing on Engine and Transmission Holder,
page 23 .

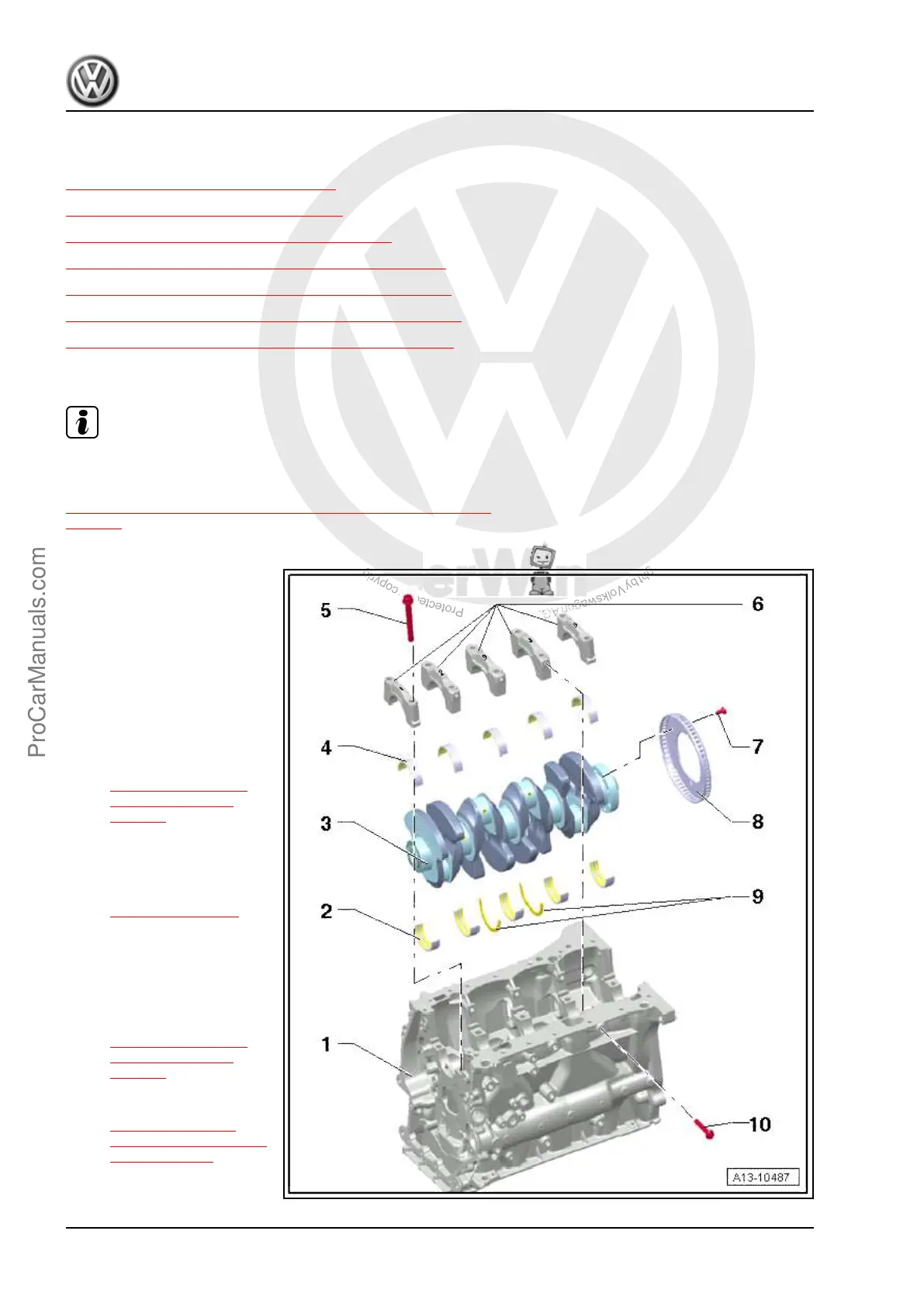

1 - Cylinder Block
2 - Bearing Shell for Cylinder
Block
❑ With lubricating groove
❑ Lubricate
❑ Do not interchange
used bearing shells
(mark)
❑ Crankshaft bearing
shells identification
(classification). Refer to
⇒ 3.3 Main Bearing
Shells Allocation,
page 64 .
3 - Crankshaft
❑ After removal, lay aside
so that sensor wheel
-item 8-
⇒ Item 8 (page 63) is
not rested on and be‐
comes damaged
❑ If the crankshaft is being
replaced, then the bear‐
ing shells must be allo‐
cated to the bearing
cover. Refer to
⇒ 3.3 Main Bearing
Shells Allocation,
page 64 .
❑ Axial clearance. Refer
to
⇒ 3.5 Crankshaft,
Measuring Axial Clear‐
ance, page 67 .
❑ Radial clearance. Refer
to
Golf 2015 ➤ , Golf Variant 2015 ➤
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
62 Rep. Gr.13 - Crankshaft, Cylinder Block
