Tightening Specifications
♦ Refer to
⇒ 5.1 Overview - Piston and Connecting Rod, page 77 .
5.3 Pistons and Cylinder Bore, Checking
⇒ 5.3.1 Pistons and Cylinder Bore, Checking, Engine Codes
CXBA, CXBB, CNSA and CNSB, page 80
⇒ 5.3.2 Piston and Cylinder Bore, Checking, Engine Codes
CNTA, CXCA, CXCB, page 82
5.3.1 Pistons and Cylinder Bore, Checking,
Engine Codes CXBA, CXBB, CNSA and
CNSB

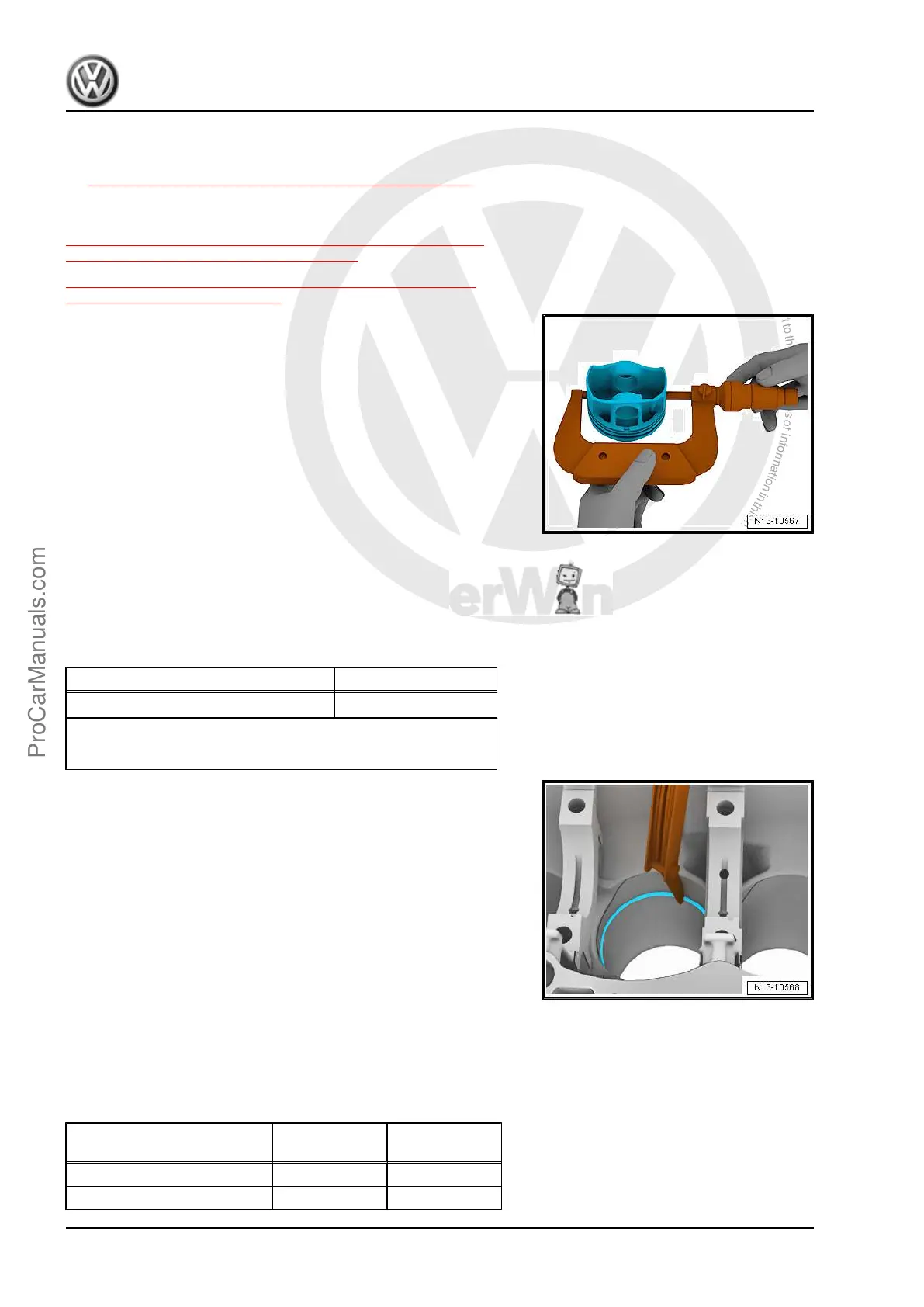

Pistons, Checking
Special tools and workshop equipment required
♦ Outside Micrometer - 75-100mm - VAS6071-
– Measure approximately 15 mm in from the lower edge at a 90°
angle to the piston pin axis using a micrometer.
♦ Deviation from specified size: maximum 0.04 mm
Basic Dimension Piston Diameter
in mm
82.465
1)
•
1)
Measurements without graphite coating (thickness = 0.02
mm). The graphite coating wears off.
Checking Piston Ring Gap
Special tools and workshop equipment required
♦ Feeler Gauge
– Push piston ring squarely from above down to approximately
15 mm from bottom end of cylinder. To do this use a piston
without rings.
Piston Ring
Dimensions in mm
New Wear Limit
Compression ring 0.20 to 0.40 0.80
Oil scraping ring 0.25 to 0.50 0.80
Golf 2015 ➤ , Golf Variant 2015 ➤
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
80 Rep. Gr.13 - Crankshaft, Cylinder Block
