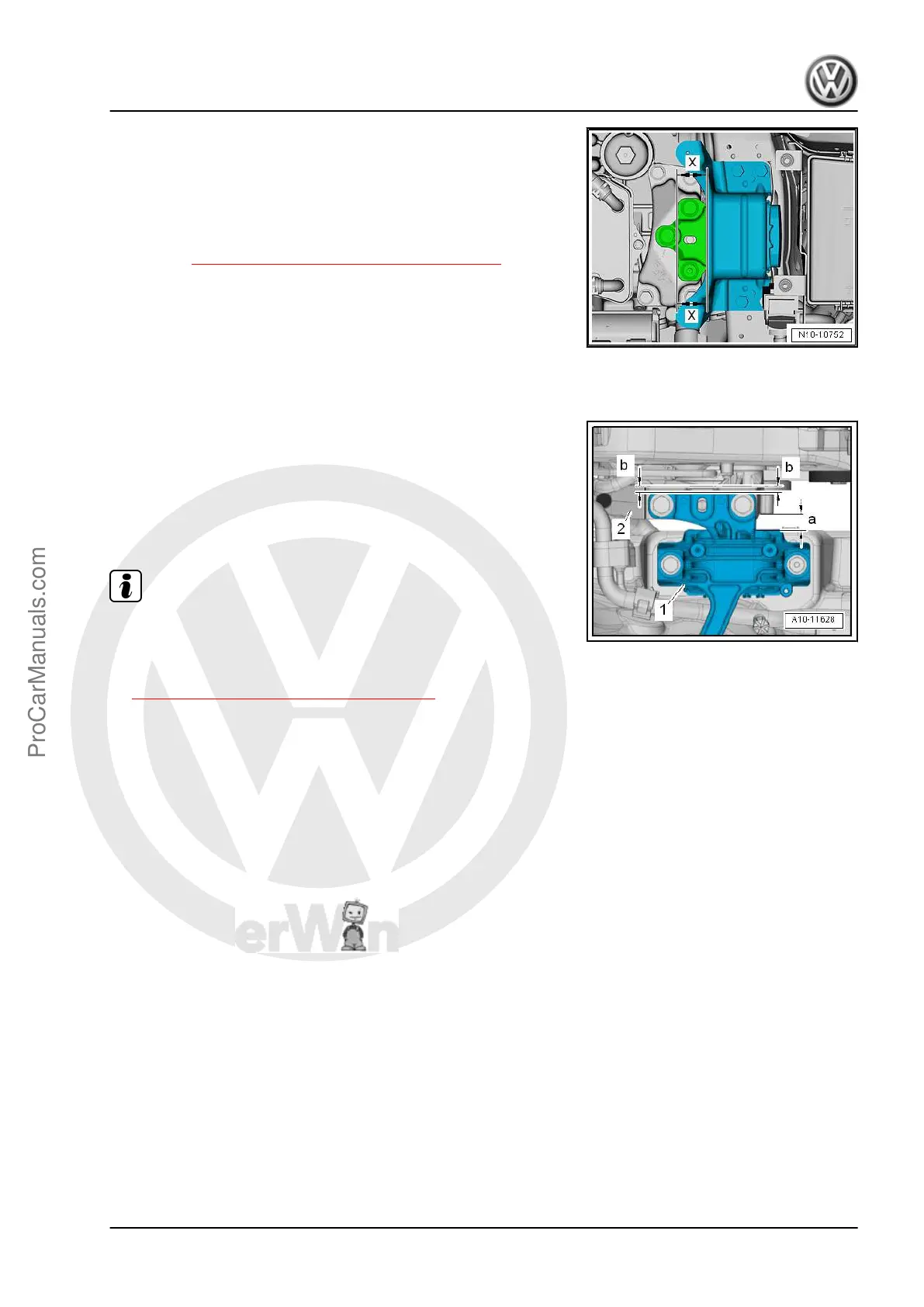

– Pay attention that on the transmission side the support arm
and the transmission mount remain parallel.
• Dimension -x- = dimension -x-.
– Tighten the transmission support bolts.
Tightening Specifications
♦ Refer to ⇒ 2.1 Overview - Subframe Mount, page 29 .
♦ Refer to ⇒ Electrical Equipment; Rep. Gr. 27 ; Battery; Over‐
view - Battery .
2.7 Subframe Mount, Checking Adjustment
Procedure
The following dimensions must be attained:
• The clearance between the engine support -2- and the engine
mount -1- must be -a- = 10 mm.
• The casting edge on the engine support must be parallel to the
support arm
• Dimension -b- = Dimension -b-.
Note
Distance -a- can also be checked using a suitable round stock.
– The distance measured is too small or too large, adjust the
subframe. Refer to
⇒ 2.6 Subframe Mount, Adjusting, page 36 .
Golf 2015 ➤ , Golf Variant 2015 ➤
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
2. Subframe Mount 37
